Numark N-Wave 580L Service Manual

Part No

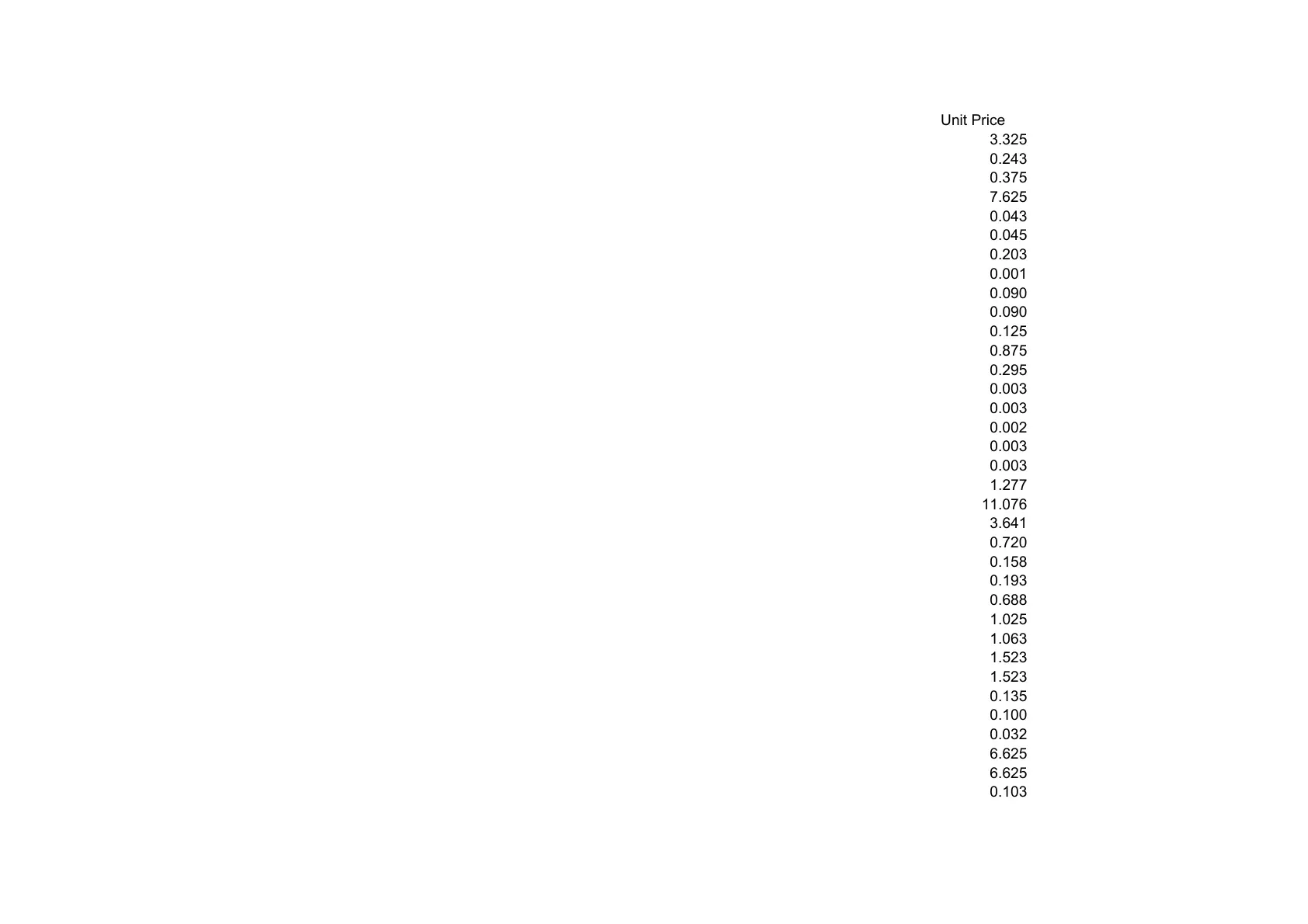

Part Description Usage Unit Price
56130213 rear plate DN-MC2321,aluminum alloy,T=2.5mm,black,silkscreen 877C 1 3.325
54010192 rear plate DN-PC1078,slave,ABS,T=2.5mm,black,MT-11000,silkscreen 877C 1 0.243
12030031 rocker switch AN-S331,RF-1003-BB4,BBG8E2L1T 1 0.375
13110021 switching power supply AN-T90021,100-240VAC,SR-AD474W,15VDC,5A 1 7.625
16040625 jack attached wire AN-W4197,22#,UL1617,60mm,one end 187(0.8T),the other 10mm w/o cove
r
1
0.043
16040626 jack attached wire AN-W4198,22#,UL1617,60mm,one end 187(0.8T),the other 10mm w/o cove
r
1
0.045
16040821 jack attached wire AN-W4381,2P,22#,UL1617,60mm,red/wht,one end VH3.96,the other 187 1 0.203
30010011 heat-shrinkable tubing Φ3*20*0.20mm,UL,black 2 0.001
30060366 foam
LAU8,foam-1,black,hi
g
h elastic，adhensive one side
2
0.090
30060442 foam
NP08,foam-1,black,hi
g
h elastic，adhensive one side
1
0.090
30150147 insulated tape NP06,26(W)mm*37(L)M/roll,yellow 1 0.125
30150152 shield NP08,PC,UL94V-0,T=0.5mm,black 1 0.875
40010056 power socket AN-J0155,3C,DB-8,non-polarity 1 0.295
70010106 full thread screw AN-C10106,M3*10mm,cross round head D5.5mm,black zinc, harden 1 0.003
70010111 full thread screw Φ3*10mm,cross round head D5.5mm,black zinc, harden 1 0.003
70070014 hex nut Φ6*M3*2.5mm,black zinc 1 0.002
70090007 washer AN-C90007,Φ5.6*Φ3*0.8mm,spring steel,spring washer,black zinc 1 0.003
70090014 washer Φ6*Φ3.2*0.3mm,steel,flat washer,black zinc 1 0.003
CR010756 RoHS semi-electronic
p
NP06 AMP ASSY
1 1.277
CR010887 RoHS semi-electronic
p
NP08 PRE ASSY
1 11.076
CR010889 RoHS semi-electronic
p
NP08 WFLED ASSY
1 3.641
10410169 grill DN-ME5124,SPCC,T=0.8mm,black painted 2 0.720
16120118 attached wire AN-WE116,2P,22#,UL1015,250mm,one end 1.58D female,the other 5mm w
/
1
0.158
16120146 attached wire AN-WE146,2P,20#,UL1015,250mm,red/blk,one end 1.58D female,the other
5
1
0.193
16150035 RCA wire AN-W1534,black twin audio cable,OD=2.8mm,L=1200 1 0.688
16150054 6.35 jack attached wire AN-W1546,2P,20#,SPT-1,black,1150mm,90 degree 6.35 male jack at two e
n
1
1.025
16150070 S terminal connecting li AN-W1520,26#UL1007,L=1150mm,PVC,4 pin black S terminal connector 1 1.063
54050015 front panel DN-PC5026,ABS(UL94V-0),master,black,MT11010,Silkscreen Pantone 877
C
1
1.523
54050016 front panel DN-PC5027,ABS(UL94V-0),slave,black,MT11010,silkscreen Pantone 877C(
s
1
1.523
20210086 knob DN-PN2060,ABS,black,rubber coated 1 0.135
20290056 supporter DN-PB0054,ABS,for drivers,black painted surface 2 0.100
20300073 foot pad Φ40mm,T=2.0mm,black, EVA1030(fire protection),adhensive one side 8 0.032
21010513 wood cabinet DN-X10211,slave,MDF,T=9mm,wrapped black PVC,with Sound Absorbing
S
1
6.625
21010514 wood cabinet DN-X10212,master,MDF,T=9mm,wrapped black PVC,Sound Absorbing She
e
1
6.625
22010704 safety manual NUMARK,safety and warranty manual 1 0.103
18
