Numatic ttb 6652 100T User Manual

235298 07/11 (A13)
15

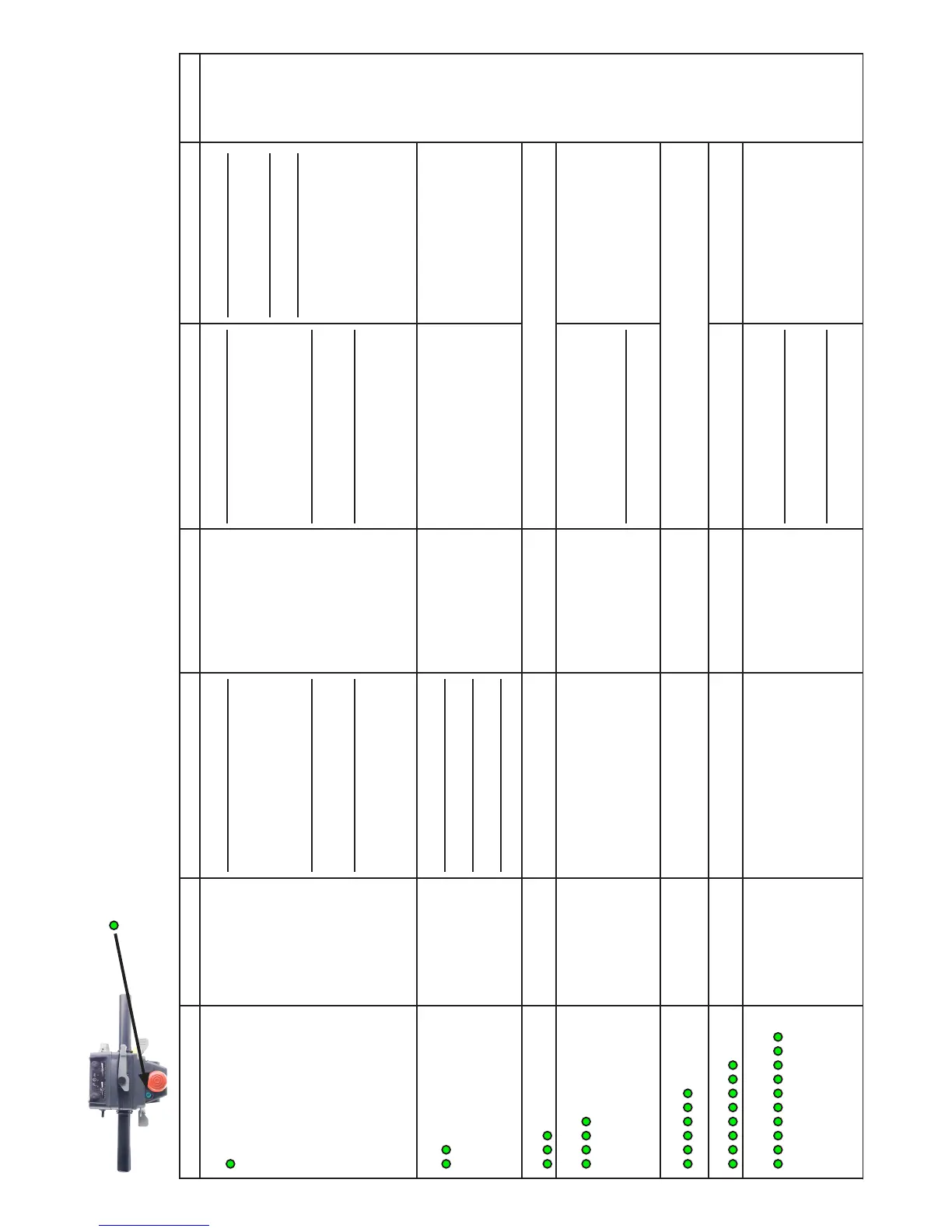

Green Status Indicator Fault Possible Cause Effect on Product Investigate the Following Action Required If fault persists
1 Flash with pause Batteries voltage low Batteries not been charged
Possible bad connection between batteries, controller, charger or fuses caused by loose connections , damaged wiring , water ingress Not accepting charge due to faulty battery/cell Charger not functioning
Operating time severely reduced or machine will not operate
Check when machine last charged Switch OFF the machine : Remove Fuses Check connections to batteries, charger and fuses for loose wires or screws Check each battery Voltage individu- ally to detect defect unit 10.5V min Check battery voltage and charge current ensuring charger red fault light is extinguished.
Charge batteries immediately Tighten loose connections and replace damaged components Replace batteries as required Replace charger
Contact
Service
Agent
2 Flashes with pause Traction motor
disconnected
The motor has a bad connection Motor disconnected TCO activated Motor failed open circuit
Motor will not operate Check all connections and leads
between the motor and controller
Tighten loose connections and replace damaged components - check exhaust clean if necessary.
3 Flashes with pause Traction motor wiring
Trip
The motor has a short circuit to a battery
Motor will not operate Check all connections and leads between the motor and controller
4 Flashes with pause Battery Lockout The battery charge level has fallen
below the battery lockout level and the controller is inhibiting machine functions
Machine functions not working
Check battery voltage and charge current ensuring charger red fault light is extinguished. Check each battery Voltage individu- ally to detect defect unit 10.5V min
Charge batteries immediately
6 Flashes with pause Charger Connected The controller is being inhibited from
driving, This may be because the battery charger is connected
Machine functions not working
Remove Charger to operate machine
8 Flashes with pause Controller Trip A controller trip is indicatied Machine functions not
working
Check all connections and leads Tighten loose connections and
replace damaged components
10 Flashes with pause High Battery Voltage Poor coonections between battery
controller and traction motor
Machine functions not working
Check each battery Voltage individu- ally to ensure voltage < 14 volts Check connections on controller batteries and traction motor Check combined battery pack volt- age is < 28 volts
Green Flashing Warning light.
