10

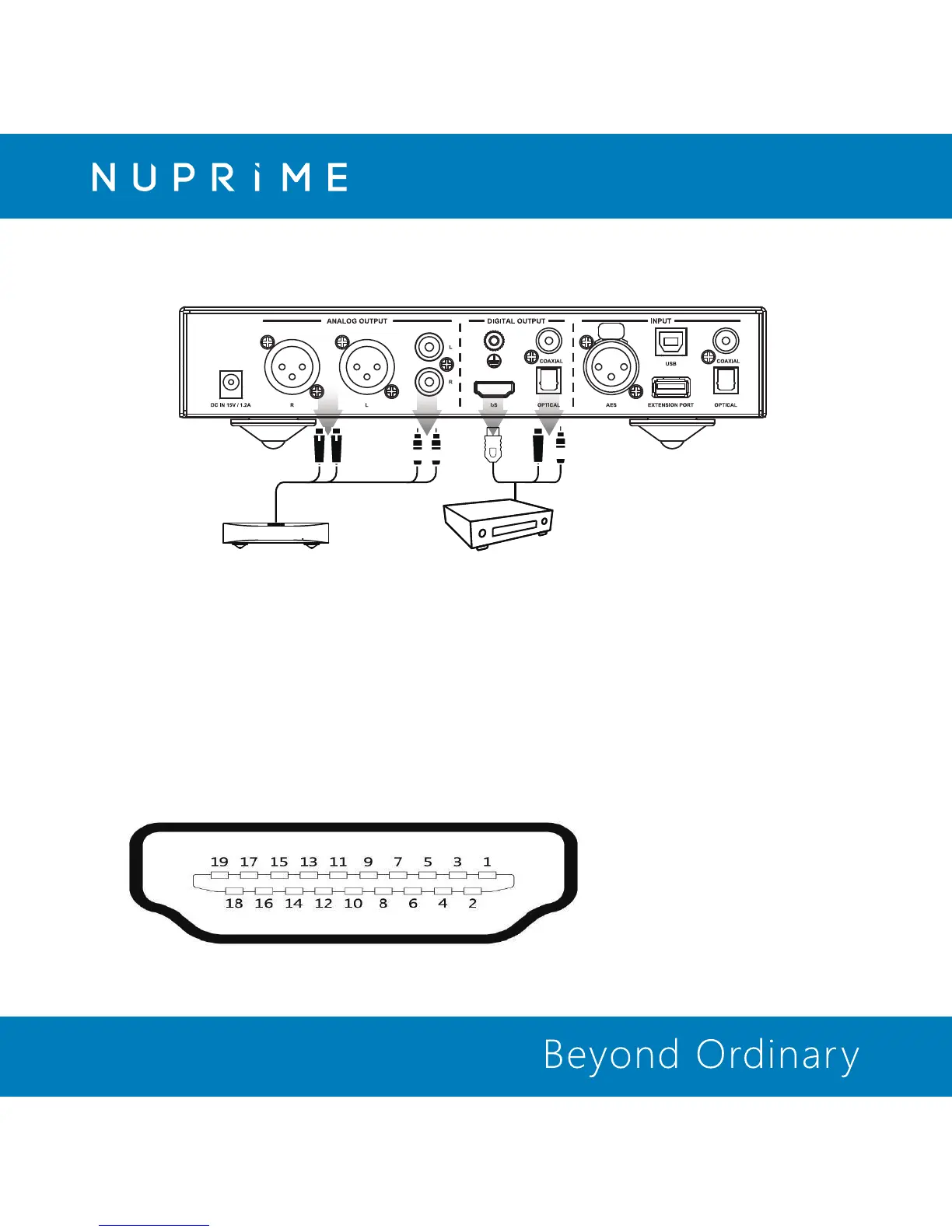

Digital Preamp
NuPrime STA-9 or
Power Amplifier
XLR or RCA output
PIN 1: I2S_DATA-
PIN 2: GND
PIN 3: I2S_DATA+
PIN 4: I2S_BCK+
PIN 5: GND
PIN 6: I2S_BCK-
PIN 7: I2S_LRCK-
PIN 8: GND
PIN 9: I2S_LRCK+
I2S PIN Define:
PIN 10: I2S_MCK+
PIN 11: GND
PIN 12: I2S_MCK-
PIN 13: NC
PIN 14: DSD ON
PIN 15: NC
PIN 16: NC
PIN 17: GND
PIN 18: NC
PIN 19: NC
R
ear Panel View:
O
utputs:
1
. Optical Output (up to 24 bits / 192 kHz) (DoP64)
2
. Coaxial Output (up to 24 bits / 768KHz) (DoP256)
3
. I2S Output (up to 24 bits / 768KHz) (DoP512)
4
. ANALOG OUT: Stereo RCA Output (4Vrms)
5
. XLR Balance OUT: True balance XLR balance Output (8Vrms)
