FINAL ASSEMBLY INSTRUCTIONS
1. Check louvers in fan housing and outside wall cap to see
that they are not damaged or binding. Louvre can be
readily removed by depressing spring bearings on end of
hinge pins.
Refer to Figure 5. Install motor and blade assembly into
housing. Be sure motor leads are toward receptacle. Plug
motor lead into receptacle. Spin blade to be sure it turns
freely.
2. Fasten grille in place with thumbscrew (furnished.)
BE SURE UNIT AND SWITCHES ARE PROPERLY
GROUNDED AND ALL WIRING COMPLIES WITH LOCAL
CODE REQUIREMENTS.
MAINTENANCE AND CLEANING
FILTER
To clean the filter (optional,) soak in hot, sudsy water.
Rinse thoroughly and allow to dry.
GRILLE
Use only a mild soap and water solution to clean the grille.
Do not use abrasive cleaners.

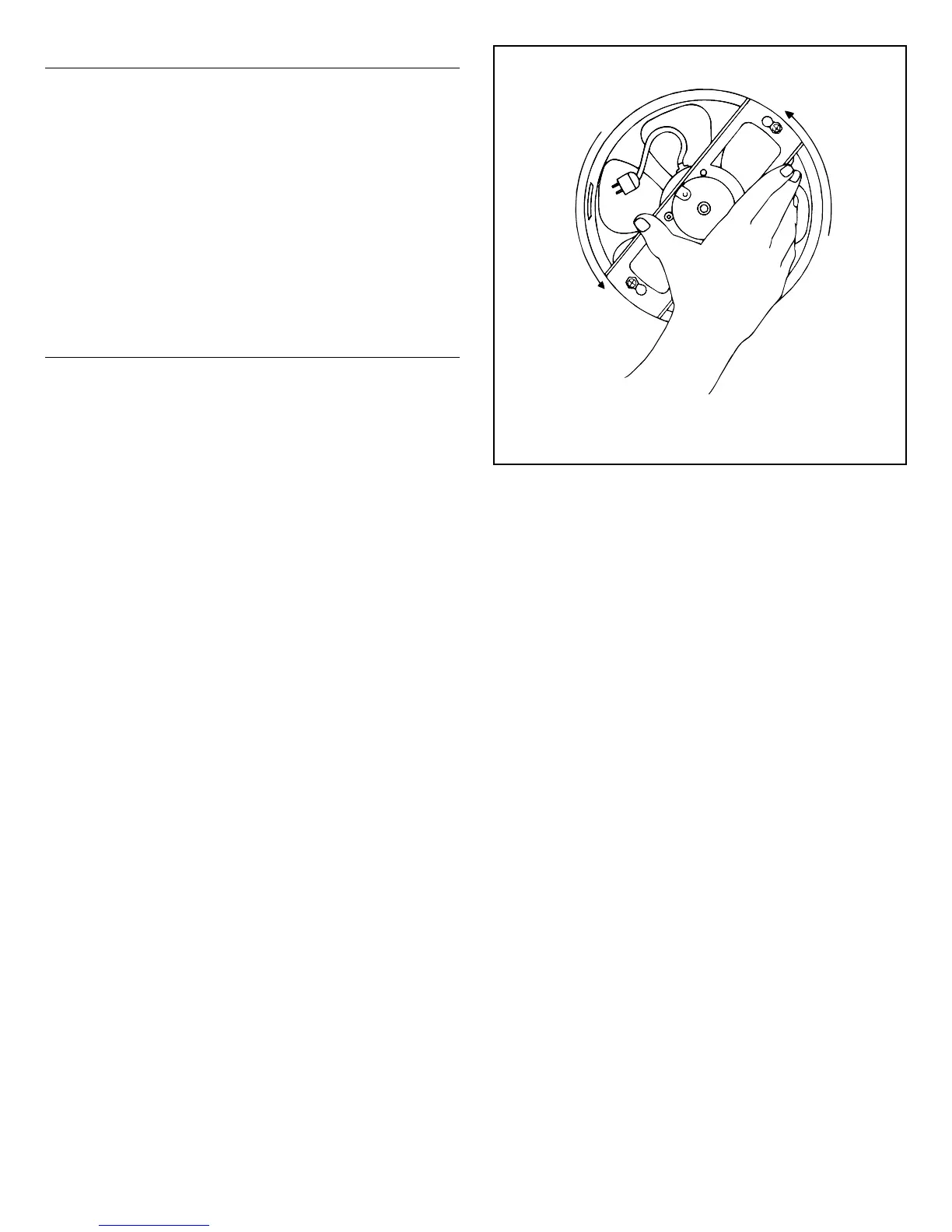

FIGURE 5
