NuTone C905 User Manual

0
3
Batt
Trans
1
2
Rear
Front
Batt
Trans
2
Rear
Front
0
3
Trans
2
Front
3
1
Batt Rear
0 1

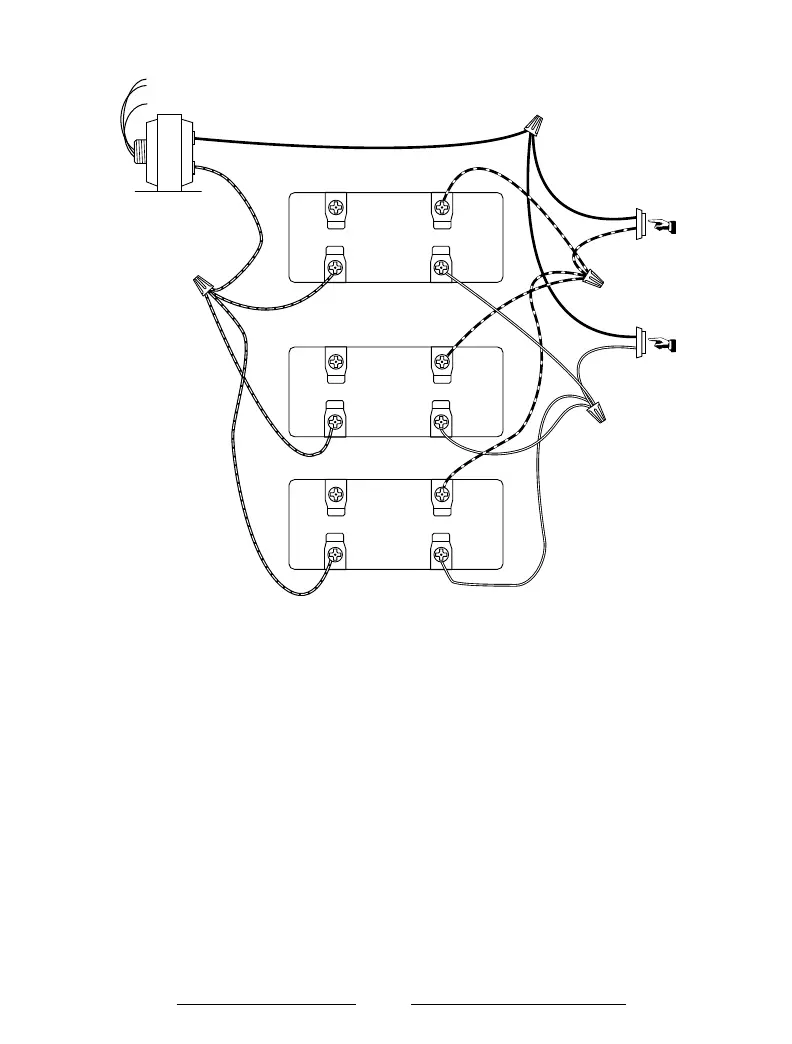

Chime Mechanisms
(Mecanismos de Campanillas)
Note: Some chime
mechanisms have a
terminal marked "0 Batt".
This is not to be used with
a transformer.
Chime buttons can be lighted
or unlighted.
Front Door Button
Rear or Side Door Button
Three Door Chimes
Ground (Tierra)
120 Volt AC (120 Voltio CA)
Transformer
