PIEZAS DE SERVICIO
SERIE RL6200
SISTEMA MICROTEK
®
I
SERVICE PARTS
RL6200 SERIES
MICROTEK
®
SYSTEM I

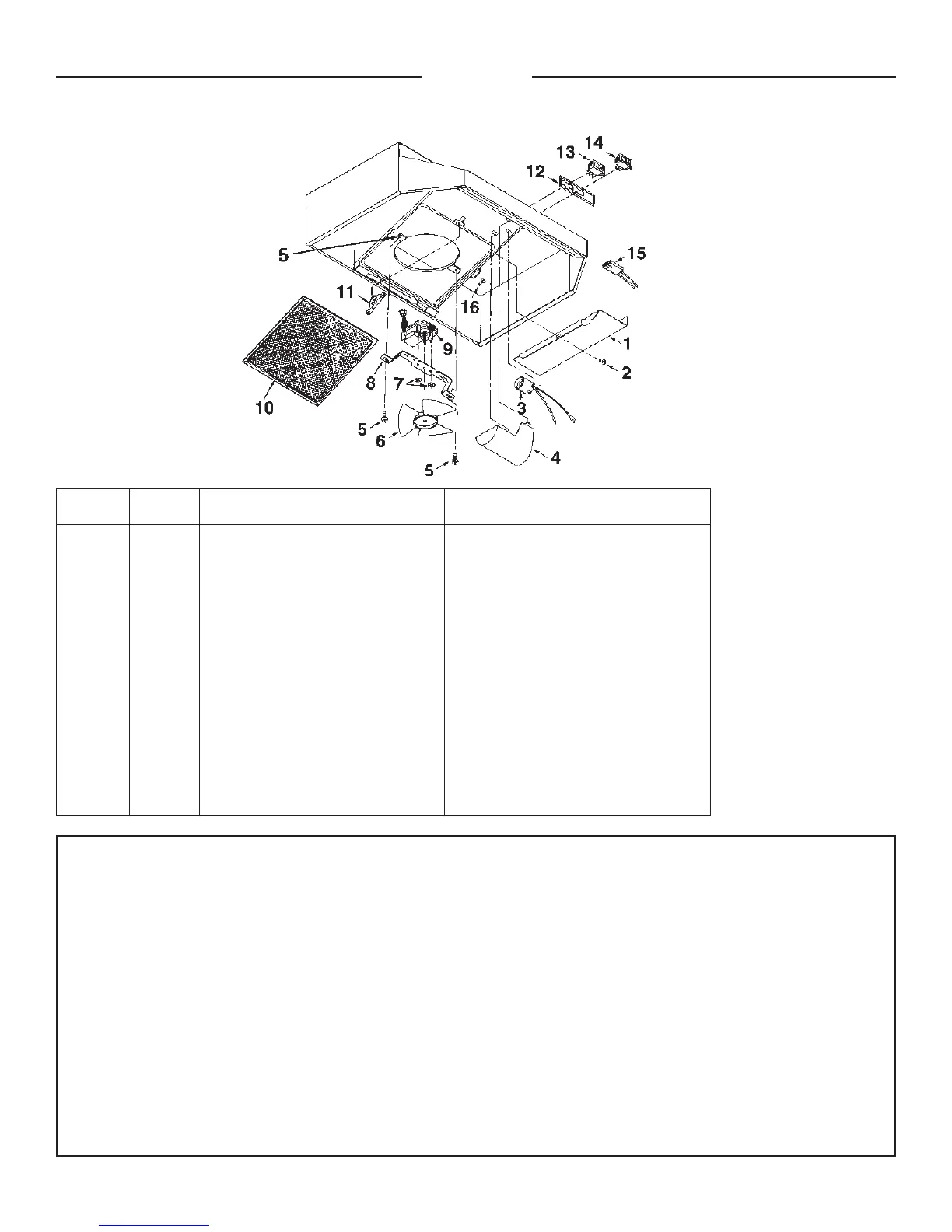

KEY NO. PART NO. DESCRIPTION DESCRIPCION
NO. CODIGO NO. PIEZA
1 98006621 Outlet Box Cover Cubierta de la caja de la toma de corriente
2 99170245 #8 x 3/8 Sheet Metal Screw* Tornillos de metal para lámina #8 x 3/8*
3 99270987 Bulb Holder with Wires Contenedor del bulbo con cableado
4 99110437 Light Lens Cubierta protectora del foco
5 97011217 Screw/Nut Kit (Includes 2 - #10-16 x .500 screws Paquete de tornillos/tuercas (incluye 2 tornillos #10-16 x 0.500 y 2
and 2 - #10-16 sheet metal nuts) tuercas de metal de lámina #10-16)
6 99020287 Fan Blade Navajas del abanico
7 99260428 #6-32 Locking Nuts* (2 Required) Tuercas #6-32* (2)
8 98005568 Motor Mounting Bracket Soporte de montura del motor
9 97011220 Motor Assembly (Includes Key Nos. 6, 7, & 8) Ensemblaje del motor (incluye piezas 6, 7, y 8)
10 97007696 Ductfree Microtek
™
Filter System I Sistema de filtro Ductfree Microtek
™
System I
11 99420472 Filter Retainer Contenedor de filtro
12 99091116 Nameplate - Black (Square Edge) Rótulo - Negro (cuadrados el borde)
99091114 Nameplate - White Rótulo - Blanco
99091131 Nameplate - Bisque Rótulo - Beige
99091171 Nameplate - Black (Round Edge) Rótulo - Negro (ronda el borde)
13 99030315 2-Speed Motor Switch - Black Interruptor del motor de 2 velocidades - Negro
99030316 2-Speed Motor Switch - White Interruptor del motor de 2 velocidades - Blanco
99030318 2-Speed Motor Switch - Bisque Interruptor del motor de 2 velocidades - Beige
14 99030310 Light Switch - Black Interruptor del foco - Negro
99030311 Light Switch - White Interruptor del foco - Blanco
99030313 Light Switch - Bisque Interruptor del foco - Beige
15 97005678 Motor Receptacle with Wires Recipiente del motor con cableado
16 99150471 #10-32 x 1/2 Green Ground Screw* Tornillo de tierra verde #10-32 x 1/2*
17 93400038 Grommet Ojal reforzado
** - - - - Light Bulb, 75 Watt (not included)* Bulbo, 75 watts* (no incluido)
Order service parts by “PART NO.” -
NOT by “KEY NO.”
* Standard Hardware. May be pur-
chased locally.
** Not Illustrated.
Encargue piezas de servicio por “NO.
PIEZA” - NO por “NO. CODIGO”.
* Piezas estándar. Se pueden comprar
localmente.
** No se muestran.
7
BROAN-NUTONE ONE YEAR LIMITED WARRANTY
Broan-NuTone warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of
one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRAN-
TIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use
and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT BULBS, FUSES, FILTERS, DUCTS, ROOF
CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which
have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recom-
mended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER
THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION
WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number below, (b) give the model number and part identification and
(c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.
Broan-NuTone LLC, 926 W. State Street, Hartford, Wisconsin 53027 www.nutone.com 800-558-1711
