XN110HL Installation Guide
Page 11
2
3
4
1
1
2 3

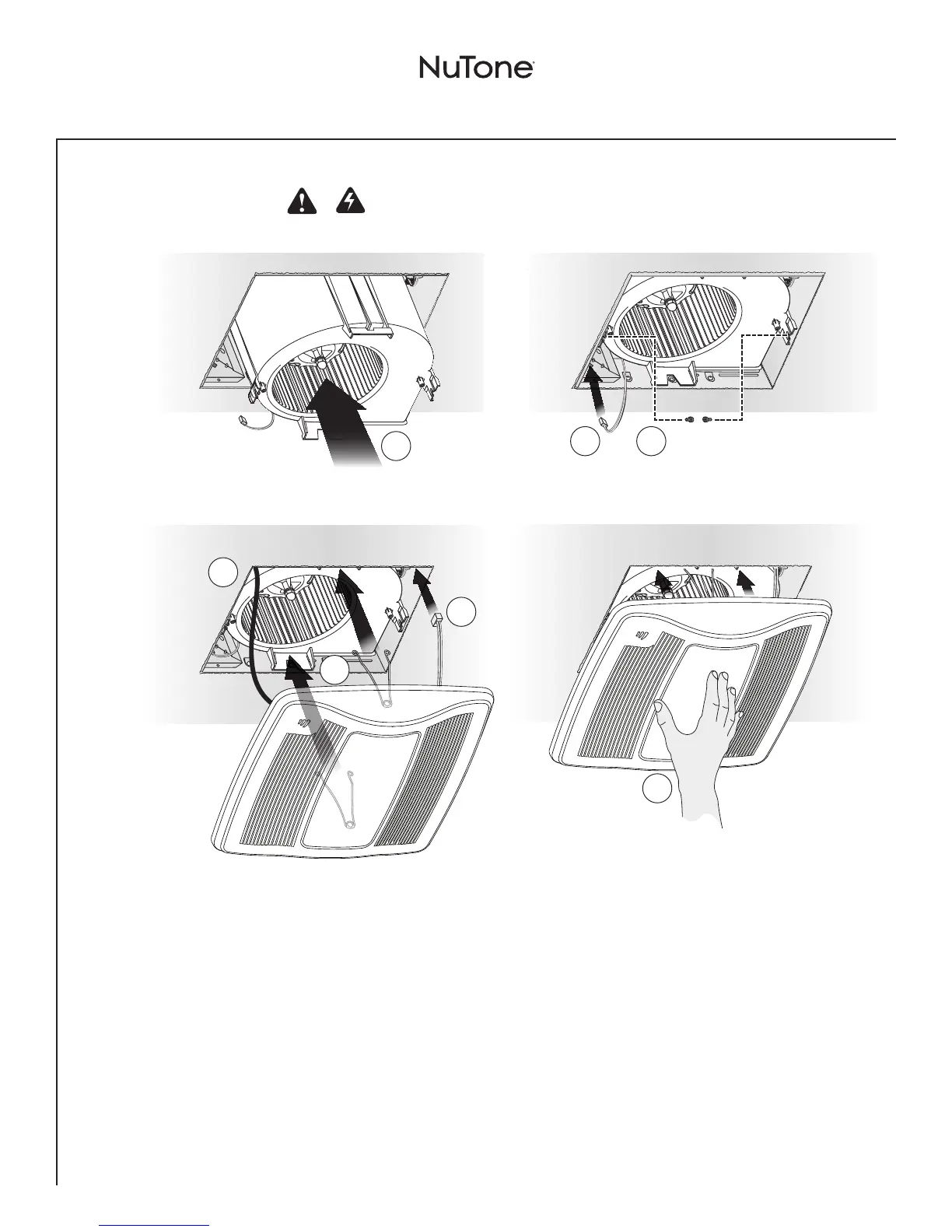

Retrofit Installation
12
Insert and Secure Blower Assembly
13
Install Grille
If ceiling repairs are needed, place Mask in Housing after Blower
Assembly is secured. See New Construction Installation Step 6.
Remove Mask before installing Grille.
Screws from Parts Bag
Plug in
Sensor
Plug in
Light
CAUTION
Power must be disconnected (see page 2, WARNING item 2) before inserting motor plug into control assembly.
IN ORDER TO PREVENT MOTOR/CONTROL DAMAGE:
To Next Page
