XN110HL Installation Guide

Page 9

1

2

2

1

3

4

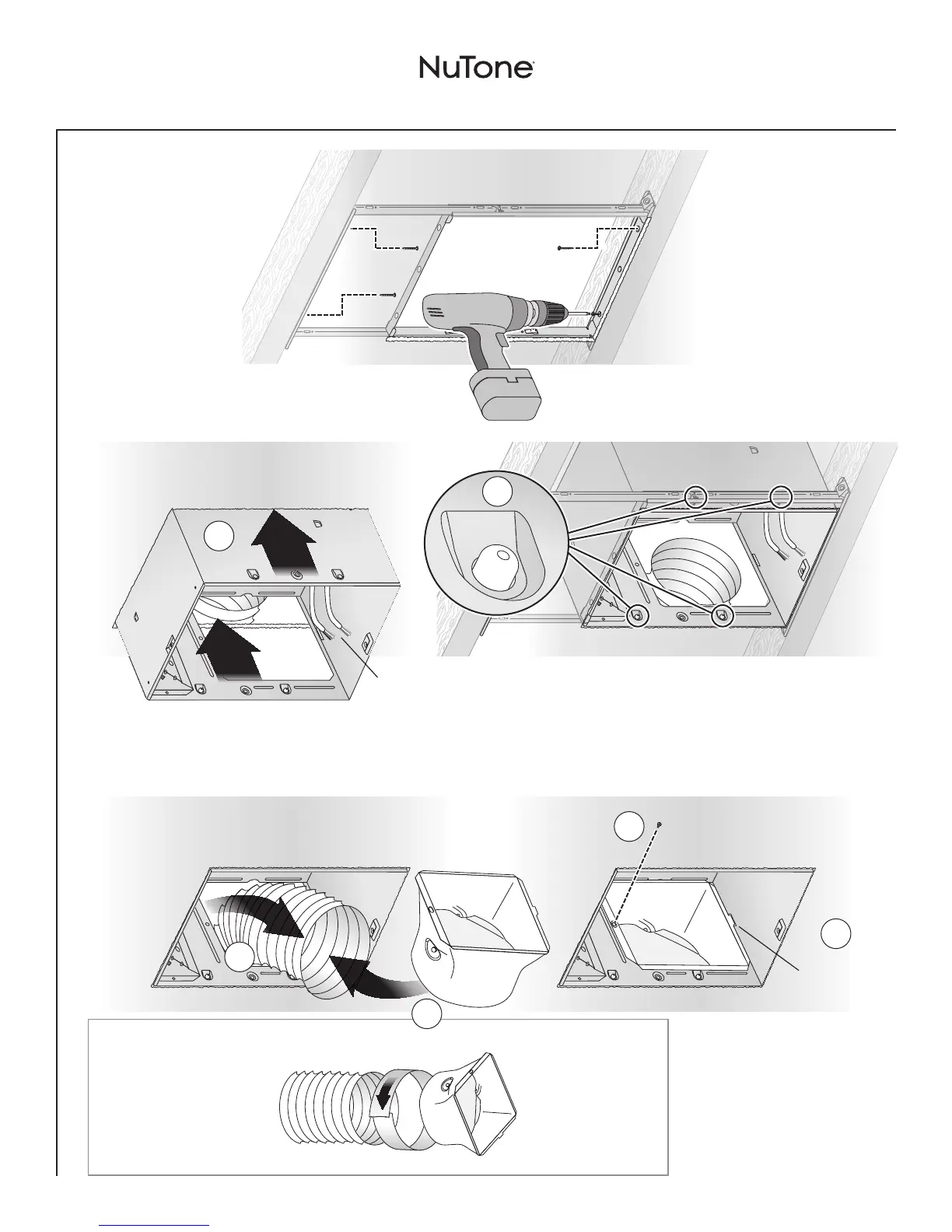

Retrofit Installation

Screw from

Parts Bag

Screws set

aside

in Step 7

Pull existing wiring into

Housing as it is inserted

into Mounting Frame

Pull existing

ductwork

into Housing

Insert tab into

slot inside

Housing

10

Attach Ducting and Duct Connector

8

Secure

Mounting

Frame

9

Snap-in Housing

snap!

Tape

6" Ducting
