NUTRICHEF NCGRIL2 - Assembly - Right Side Shelf; Right Side Shelf Assembly

www.NutrichefKitchen.com
7

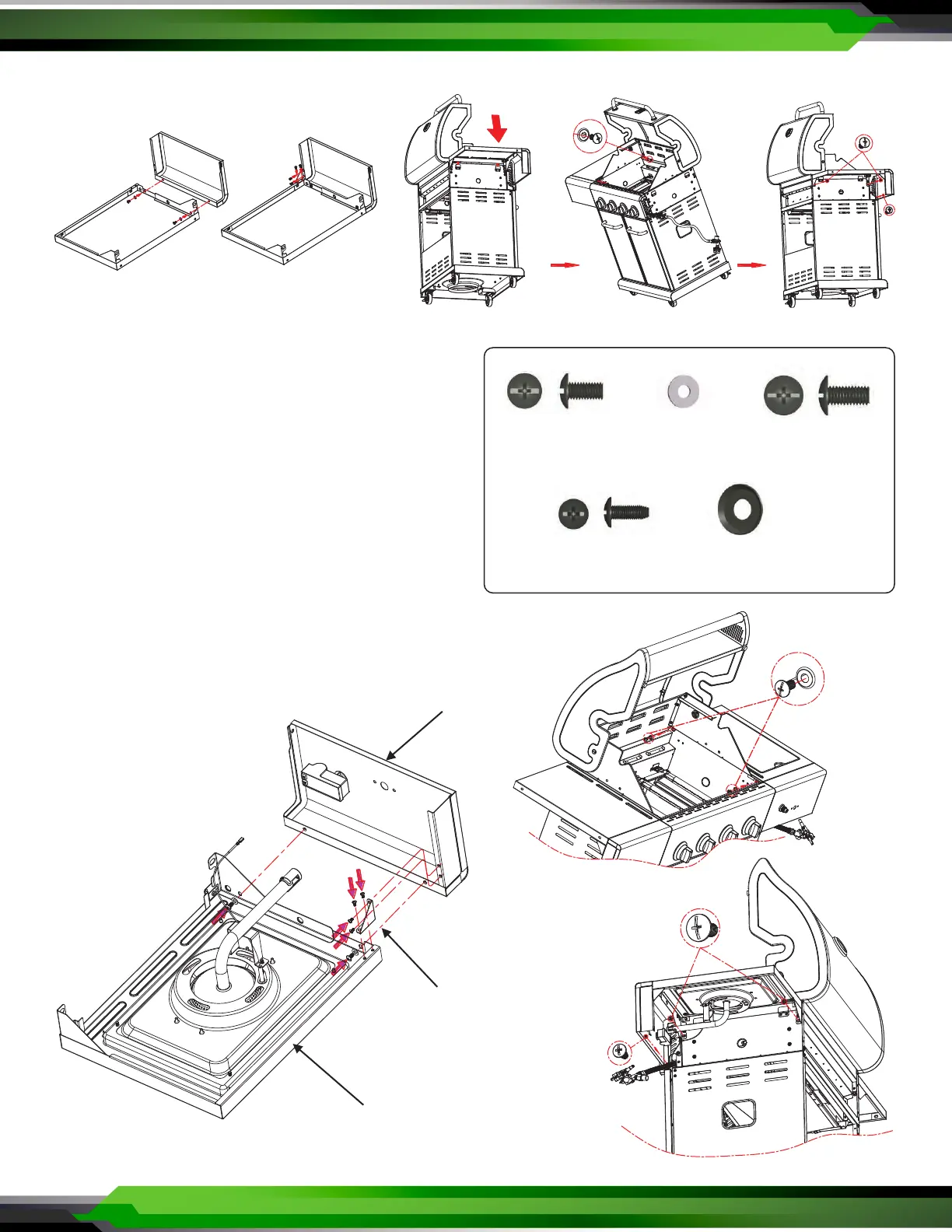

6. Attach the Right Side Shelf
• Remove the SIDE BURNER TRIVET from the side burner.
• Attach the RIGHT FASCIA to the RIGHT SIDE SHELF with
two M5x10mm bolts and two M5 at washers.
• Attach the SHELF ANGLE BRACKET to the right fascia
and the right shelf with four M4x10mm bolts.
• Attach the right shelf to the rebox as follows and as
shown below:
• From inside to outside of the rebox with two M6x13mm
bolts and two M6 compression washers.
• From outside to inside of the rebox with two
M6x13mm bolts.
• Attach the right fascia to the control panel with one
M4x10mm bolt.
A B C D E
RIGHT FASCIA
SHELF ANGLE
BRACKET
RIGHT SIDE SHELF
M5X10 screw
Qty: 2 pcs
M5 at washer
Qty: 2 pcs
M4X10 screw
Qty:5 pc
M6X13 screws
Qty: 4 pcs
M6 compression washer
Qty: 2 pcs
