nuuk MC500A - Page 10

Assembly Instruction
A x 2
A x 4
10

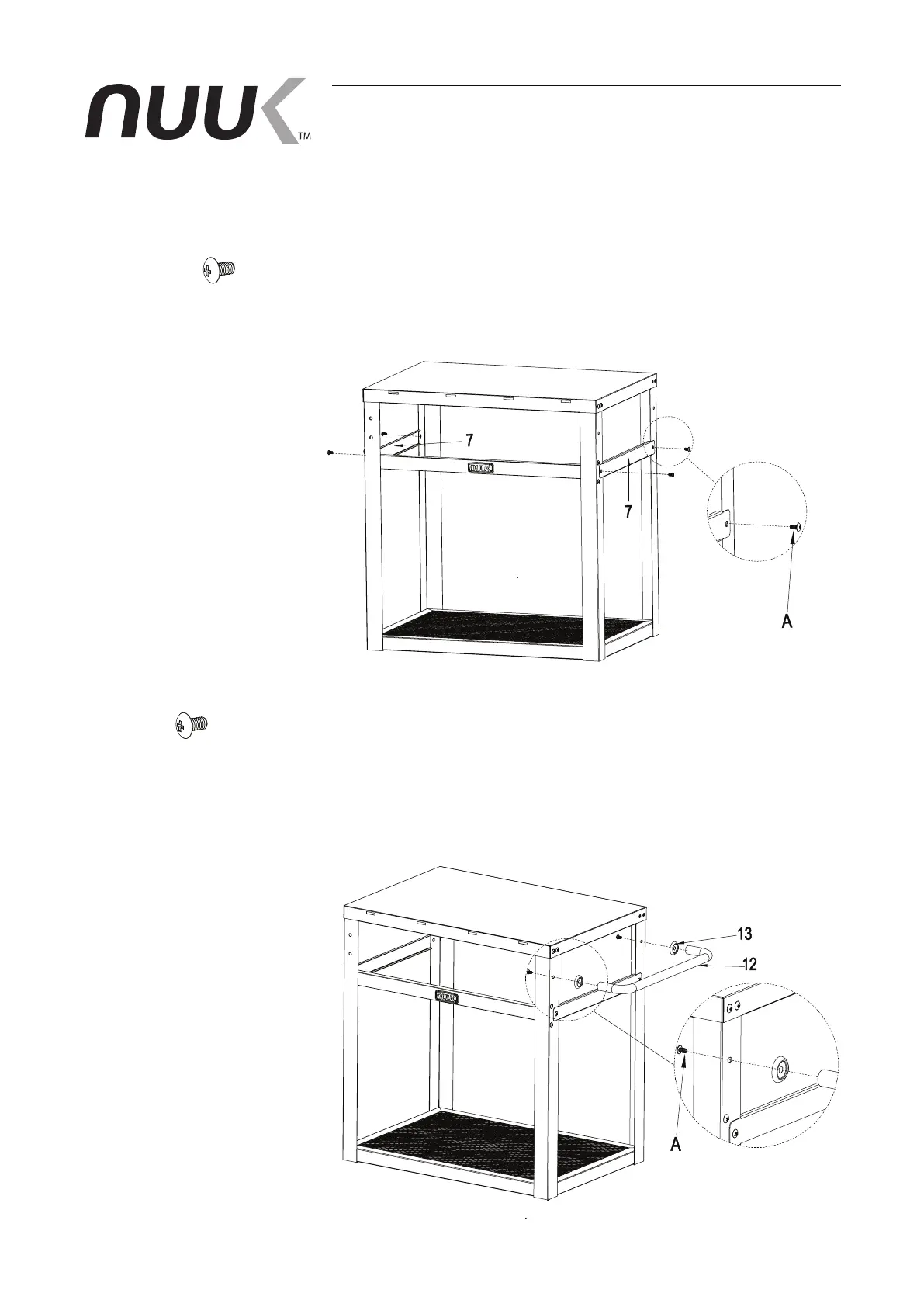

STEP 5
Install Side Support Bracket (7) to assembled cart, use
two Bolt M6 x 15 (A) for each bracket, total four bolts.
STEP 6
Install Side Handle (12) and Handle Base (13) to
assembled cart, use two Bolt M6 x 15 (A).
NOTE: Put the protection material on the oor
before this step.
