nVent.com | 7

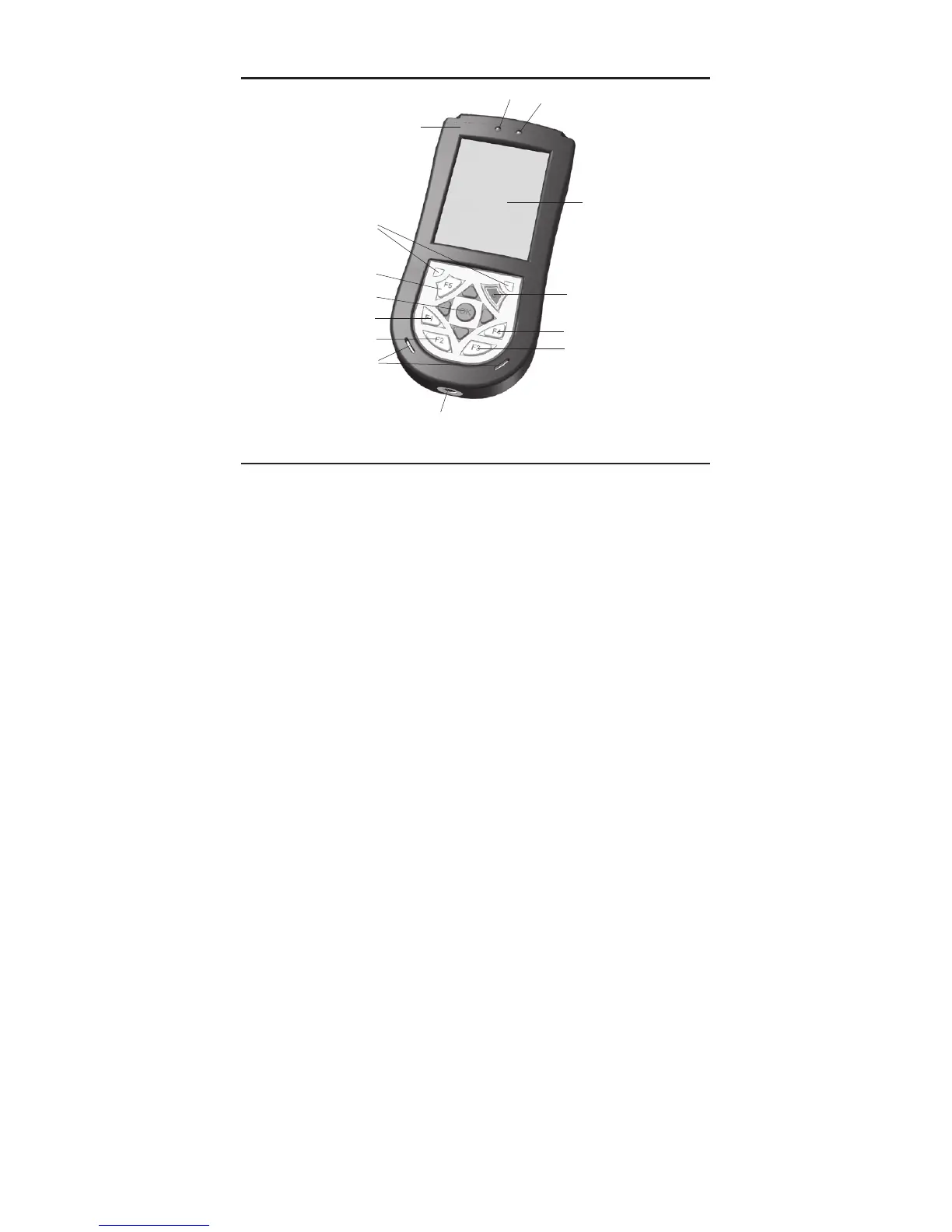

SYSTEM OVERVIEW
1
14
12
11
10
9
8
7
6
5
4
3
2
13
FRONT AND BOTTOM PANEL COMPONENTS
1 Flat top panel, optional long top panels for adding barcode
or RFID modules available
2 Wireless / Notification LED indicator
Off = WiFi or Bluetooth are both off
Blue flash = WiFi and / or Bluetooth are on
Green flash = notification events have occured
3 Charge LED indicator
Off = no charging
Red flash = charging
Red solid = charging complete
4 Touchscreen
5 Power button
6 F4 button (HP indication: iTask button)
7 F3 button (HP indication: Messaging button) Starting iPAQ
Wireless, press and hold for two seconds
8 5 pin charging plug with USB connector (only active with
powered charger)
9 Speaker and microphon in / outputs
10 F2 button (HP indication: Contacts button) Starting HP
Protect Tools, press and hold for two seconds
11 F1 button (HP indication: Calendar button) Switching
Landscape/Portrait mode, press and hold for two seconds
12 5-Way Navigation button, scrolling through a list or pushing
to select (similar to using a joystick)
13 F5 button (HP indication: Record button) Using as trigger
button for optional barcode or RFID modules
14 2 Reset buttons, for Soft Reset press both buttons at the
same time
