nvent Raychem NGC-UIT2-EX User Manual

6 | nVent.com
Door Mounted
+12 Vdc
These relays are shown
in the energized position
without an alarm condition.
120 or 230 Vac
Neutral
GND (–)+12 Vdc
Input
+
8 7 6 5 4 3 2 1 –
+
8 7 6 5 4 3 2 1 –
NO
C
NC
NO
C
NC
NO
C
NC
3
4
Alarm
Lamp
120 or 230 V Lamp
IDEC SWITCH/
LAMP
1
2
Relay Driver Output
Relay Driver Output
Alarm Relays
Jumper switch
terminals 1, 4 and x2

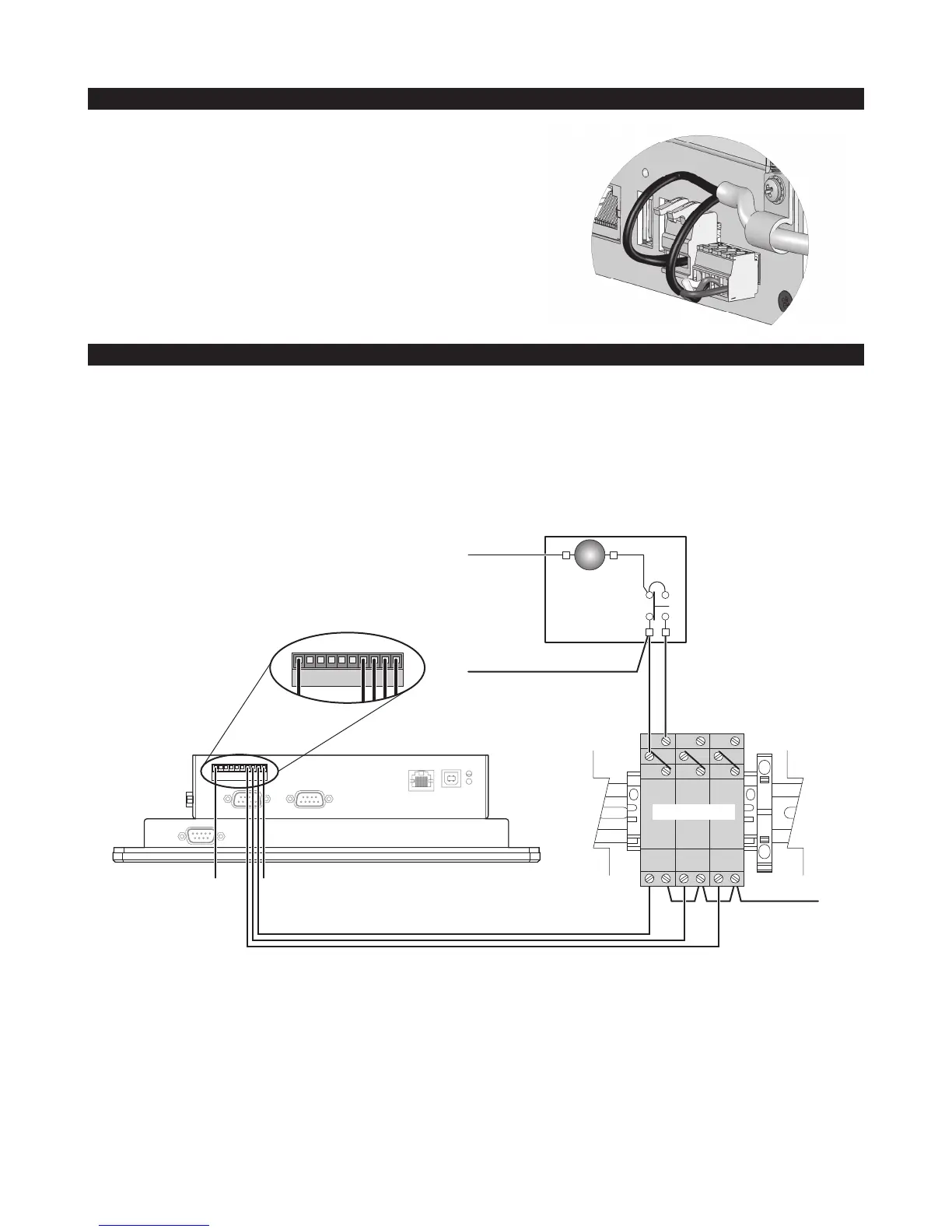

Connect Power
Install Common Alarm Light and Alarm Relays
Connect 12 Vdc to the male power connection fitting located on the
left side of the NGC-UIT2-EX. The “+” lead should go to the terminal
marked “9–30 Vdc” and the “–” lead should go to the terminal
marked “GND”. Ensure the cables are routed through the cable
clamp as shown.
Note: The NGC-UIT2-EX is rated for 9–30 Vdc. Since the
NGC-30-CRM modules are rated for 12 Vdc, we have used
this voltage to also power the NGC-UIT2-EX. As a result, the
recommend alarm relays and lights detailed in the “Additional
Materials” are rated for 12 Vdc.
Provision shall be made external to the equipment to provide
transient protection at a level not exceeding 119V at the power
supply terminals.
Mount the 3 alarm relays on a DIN rail inside the panel enclosure.
Mount the Alarm light on the panel’s door below the touch screen.
Per the below drawing, bring 12 Vdc to the Relay Driver Output at the
bottom of the touch screen, to the alarm relays and alarm light.
Per the below drawing, wire between the Relay Driver Output, alarm
relays, and alarm light.
A
DETAIL A
SCALE 2 : 1
SEALEVEL SYSTEMS, INC.
D
C
B
A
B
C
D
1 2 3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
R9070_Cable
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:2
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
SEALEVEL SYSTEMS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SEALEVEL SYSTEMS,INC. IS
PROHIBITED.
A
DO NOT SCALE DRAWING

nvent Raychem NGC-UIT2-EX Specifications

General

Brand	nvent
Model	Raychem NGC-UIT2-EX
Category	Touch terminals
Language	English
