nvent Raychem NGC-UIT2-EX User Manual

Name: nvent Raychem NGC-UIT2-EX
Brand: nvent
Rating: 4 (1 reviews)

8 pages

To Next Page

To Previous Page

nVent.com | 5

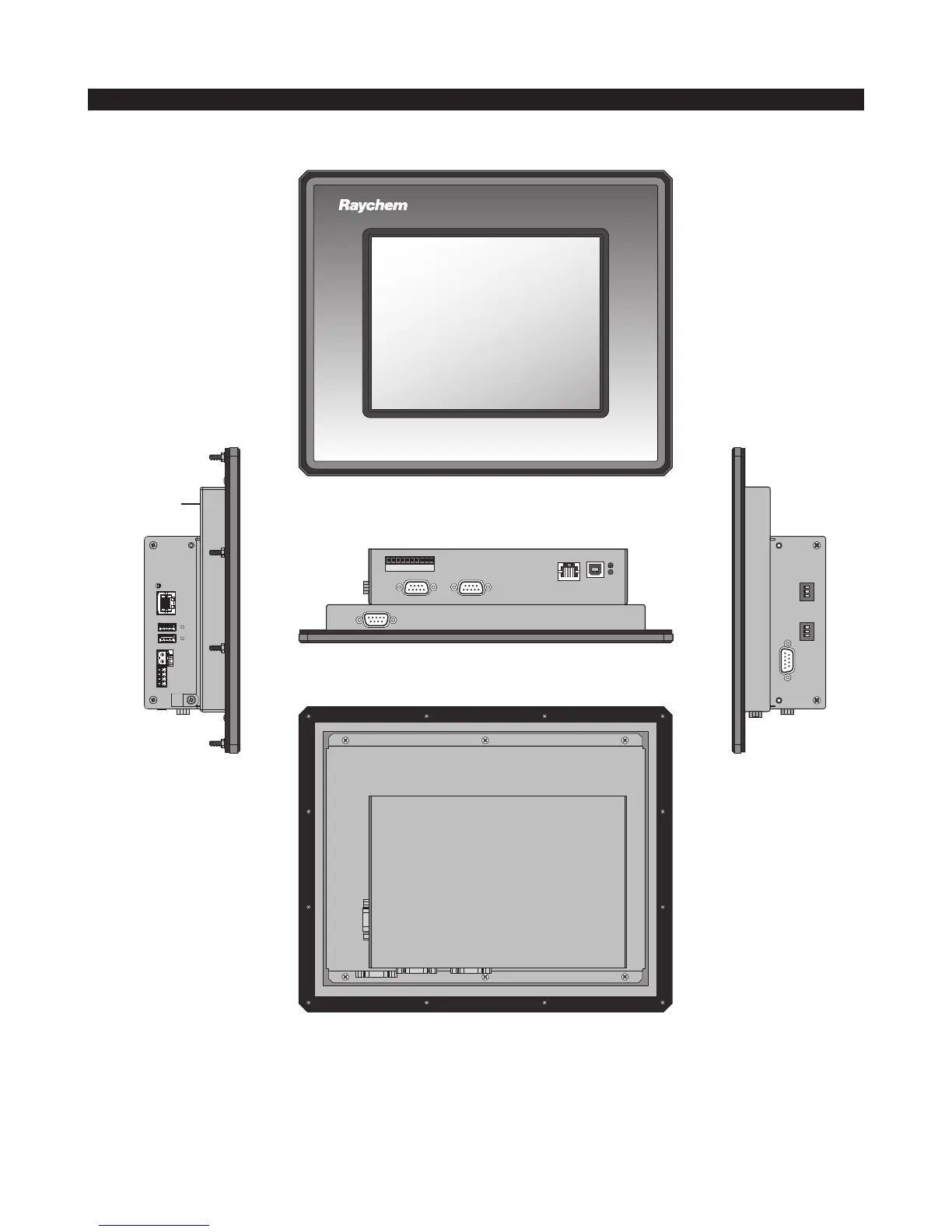

Bottom view

Back view

Front view

RS-485-2

Debug Port (not used)

Ethernet

USB device port

(not used)

Open Collector Outputs

RS-485-1

Side view

RS-232

RS-485-1

Termination

RS-485-2

Termination

Side view

RS-485

(not used)

CAN

(not used)

Power

Reset

USB

RS-485

(not used)

NGC-UIT2-EX Connection Diagram
