- 19 -
January 2010

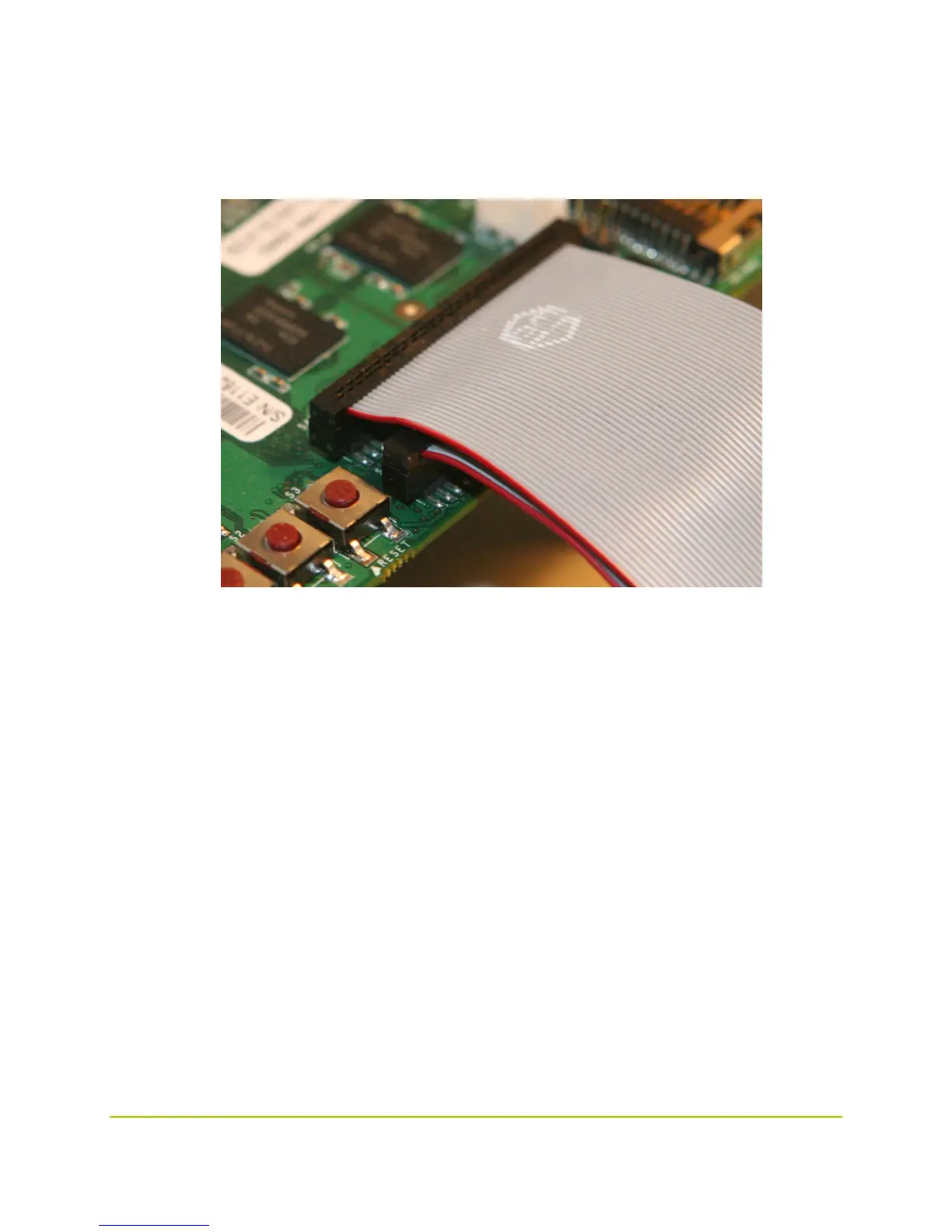

4) Connect the remaining (upper, longer) ribbon cable to the rearmost of the two headers on the
main board. Insertion should be similar to the previous ribbon cable and should look like the
following figure:
5) Reconnect power to the main board. Assembly is complete.
