NZXT H5 FLOW - Exploded View

03
H5 FLOW

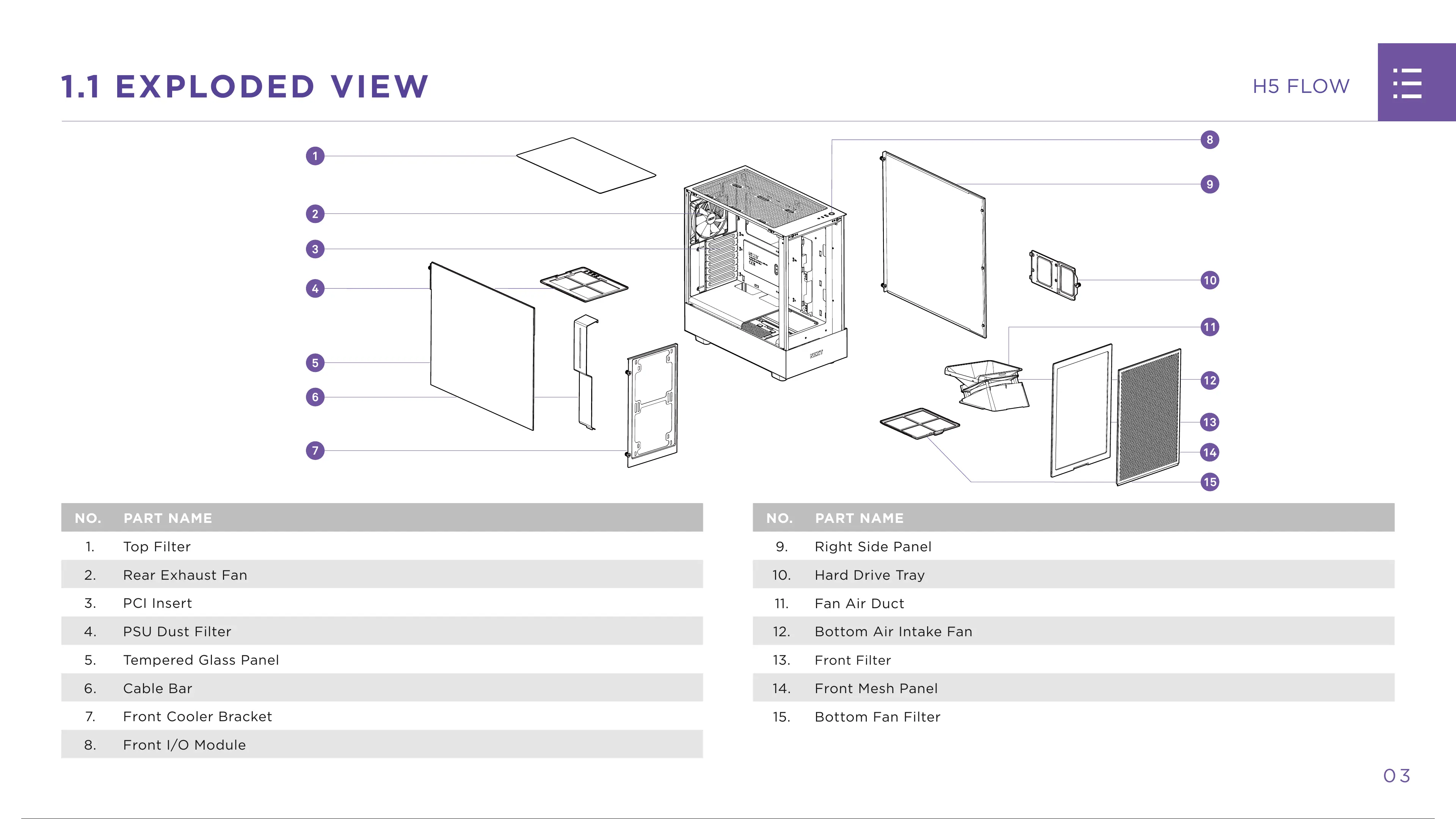

1.1 EXPLODED VIEW
6
7
8
4
5
3
9
10
13
14
12
11
15
2
1
NO. PART NAME
1. Top Filter
2. Rear Exhaust Fan
3. PCI Insert
4. PSU Dust Filter
5. Tempered Glass Panel
6. Cable Bar
7. Front Cooler Bracket
8. Front I/O Module
NO. PART NAME
9. Right Side Panel
10. Hard Drive Tray
11. Fan Air Duct
12. Bottom Air Intake Fan
13.
Front Filter
14. Front Mesh Panel
15. Bottom Fan Filter
