NZXT H5 FLOW User Manual

07
H5 FLOW

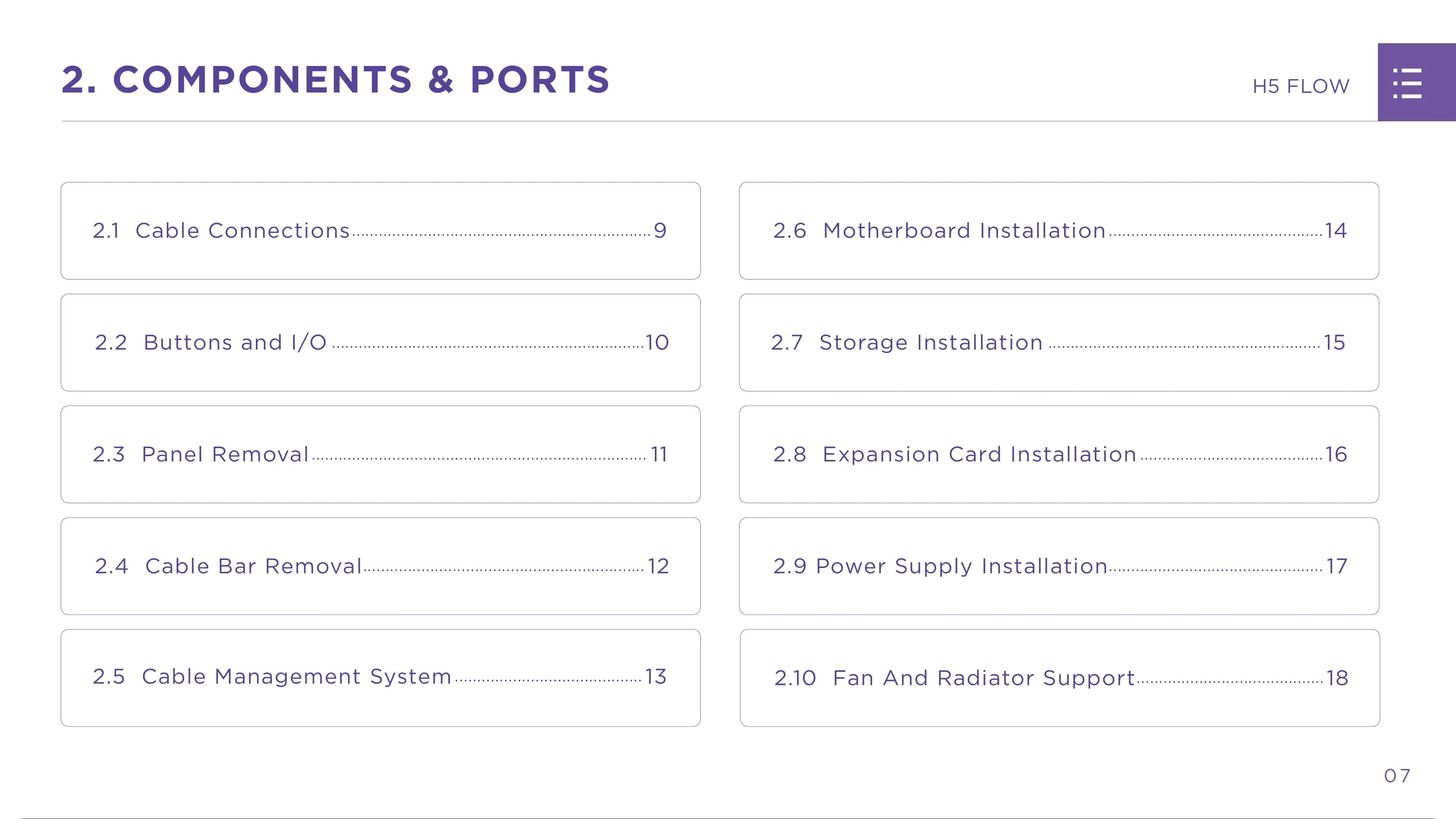

2. COMPONENTS & PORTS
2.1 Cable Connections
...................................................................
9
2.5 Cable Management System
..........................................
13
2.3 Panel Removal
...........................................................................
11
2.7 Storage Installation
.............................................................
152.2 Buttons and I/O
......................................................................
10
2.6 Motherboard Installation
................................................
14
2.4 Cable Bar Removal
...............................................................
12
2.8 Expansion Card Installation
.........................................
16
2.9 Power Supply Installation
................................................
17
2.10 Fan And Radiator Support
..........................................
18
9 / 36 8 / 34 9 / 36 8 / 34 9 / 36

NZXT H5 FLOW Specifications

General

Type	PC
Material	Steel, Tempered glass
Form factor	Midi Tower
Side window	Yes
Product color	Black
Number of 2.5\" bays	2
Number of 3.5\" bays	1
Number of 5.25\" bays	0
Maximum CPU cooler height	165 mm
Number of expansion slots	7
Maximum graphics card length	365 mm
Supported motherboard form factors	ATX, EATX, Micro ATX, Mini-ITX
Power supply included	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Rear fans installed	1x 120 mm
Top fans diameters supported	120 mm
Top radiator sizes supported	120, 140, 180, 240 mm
Rear radiator sizes supported	80, 92, 120 mm
Front fans diameters supported	120, 140 mm
Front radiator sizes supported	60, 120, 140, 200, 240, 280 mm
Supported HDD sizes	2.5, 3.5 \

Weight and Dimensions

Depth	446 mm
Width	227 mm
Height	464 mm
Weight	7010 g
