03
H7 MID-TOWER CASE

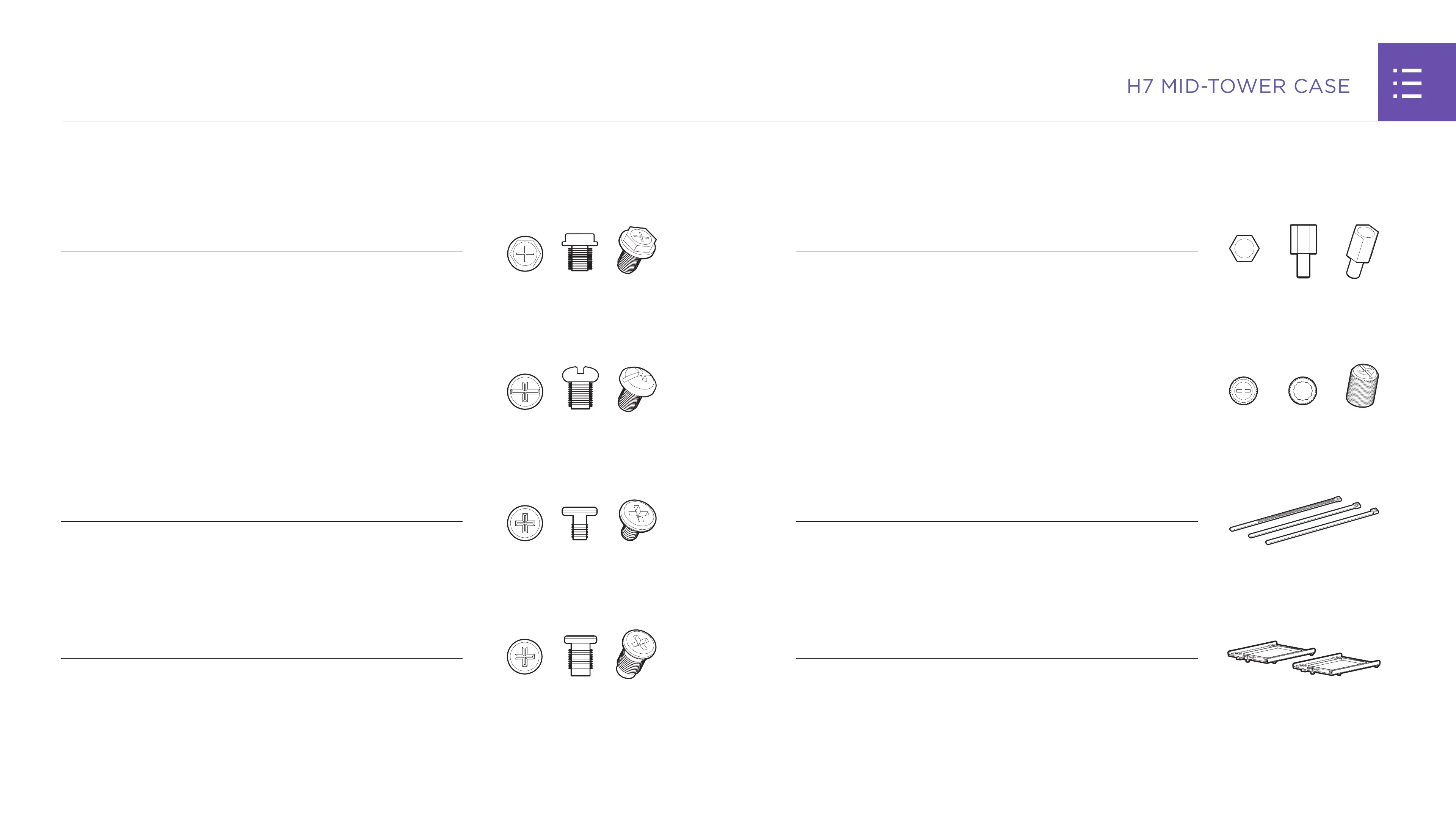

1.1 ACCESSORY BOX
A. Hexagon Screw 6-32 x 6mm
Power supply installation
B. Screw 6-32 x 5mm
Motherboard installation, 3.5 hard drive
installation
C. Screw M3 x 5mm
2.5 hard drive installation
D. Screw KB5 x 10mm
Fan installation
E. Stando 6-32 x 6.5+4mm
Motherboard installation
F. Stando Wrench
Motherboard installation
G. Cable Ties
Cable managment
H. SSD Tray
SSD drive installation
x4
x17
x24
x12
x1
x1
x10
x2
