O Audio 300W BASH
®
Subwoofer Amplifier User’s Manual V1.2 page 5 of 12
Copyright © 2008
INSTALLATION:
The O Audio 300W BASH
®
Subwoofer Amplifier is designed to be installed into a
subwoofer enclosure or its own dedicated enclosure. Switches and other orifices are
airtight. Also, the back of the faceplate has a gasket to provide an airtight seal when
the amplifier module is mounted into a subwoofer enclosure.

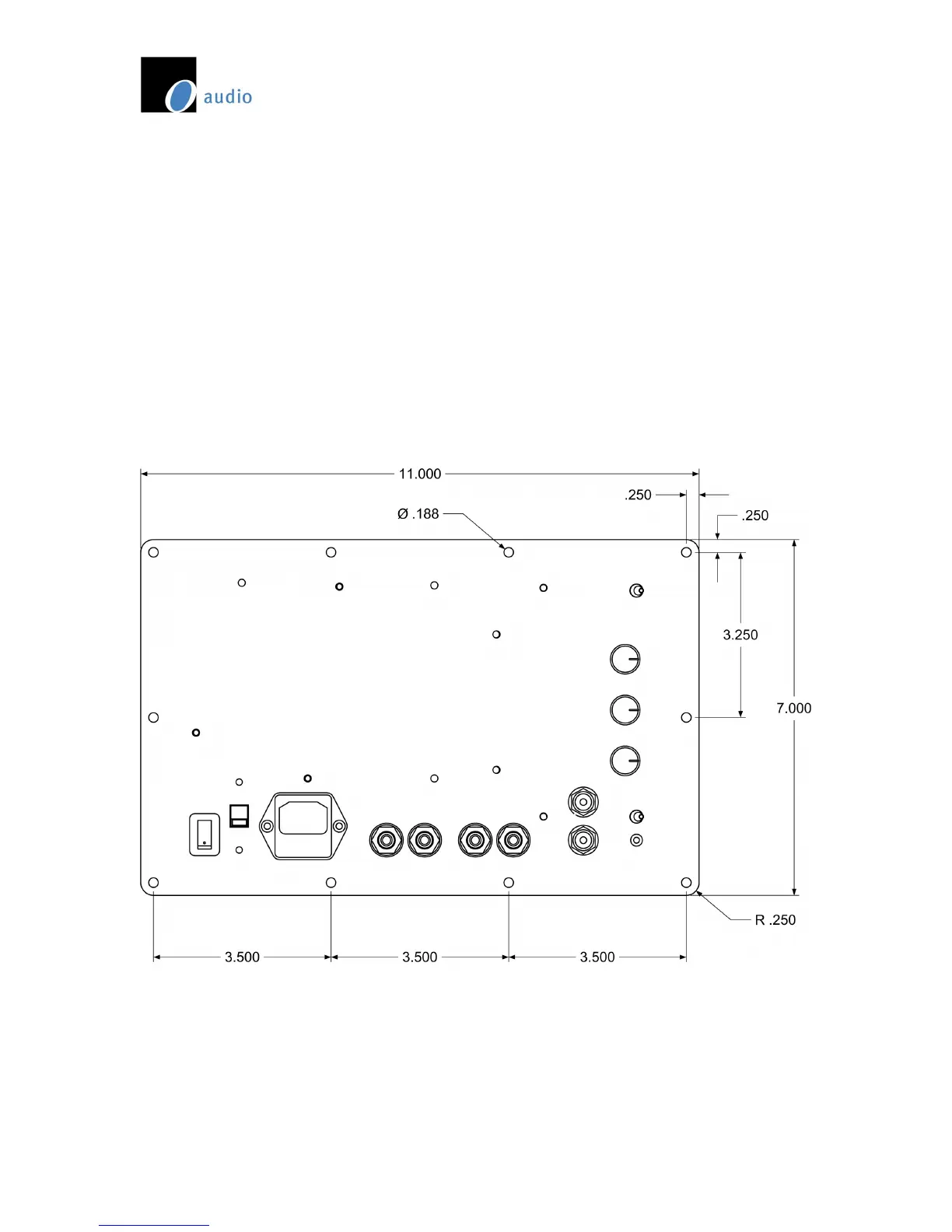

All dimensions are in inches unless otherwise noted.
