O.S. engine EC-11 - Page 17

《
MONTOR
》
【
information shown during the MONITOR mode
】
(1) Pressure (hPa
）
Atmospheric pressure measured by the sensor in the ECU.
(2) Fuel pressure
（
kPa
）
Fuel pressure after the fuel pump.
(3) Negative pressure
（
hPa
）
Pressure in the intake manifold.
(4) Negative pressure peak
（
hPa
）
(5) 3.3V voltage
（
mV
）
Voltage of the 3.3V power supply line of the ECU.
(6) 5V voltage
（
mV
）
Voltage of 5v power source line in the ECU.
(7) 12V voltage
（
mV
）
Voltage of the 12V power supply line of the ECU.

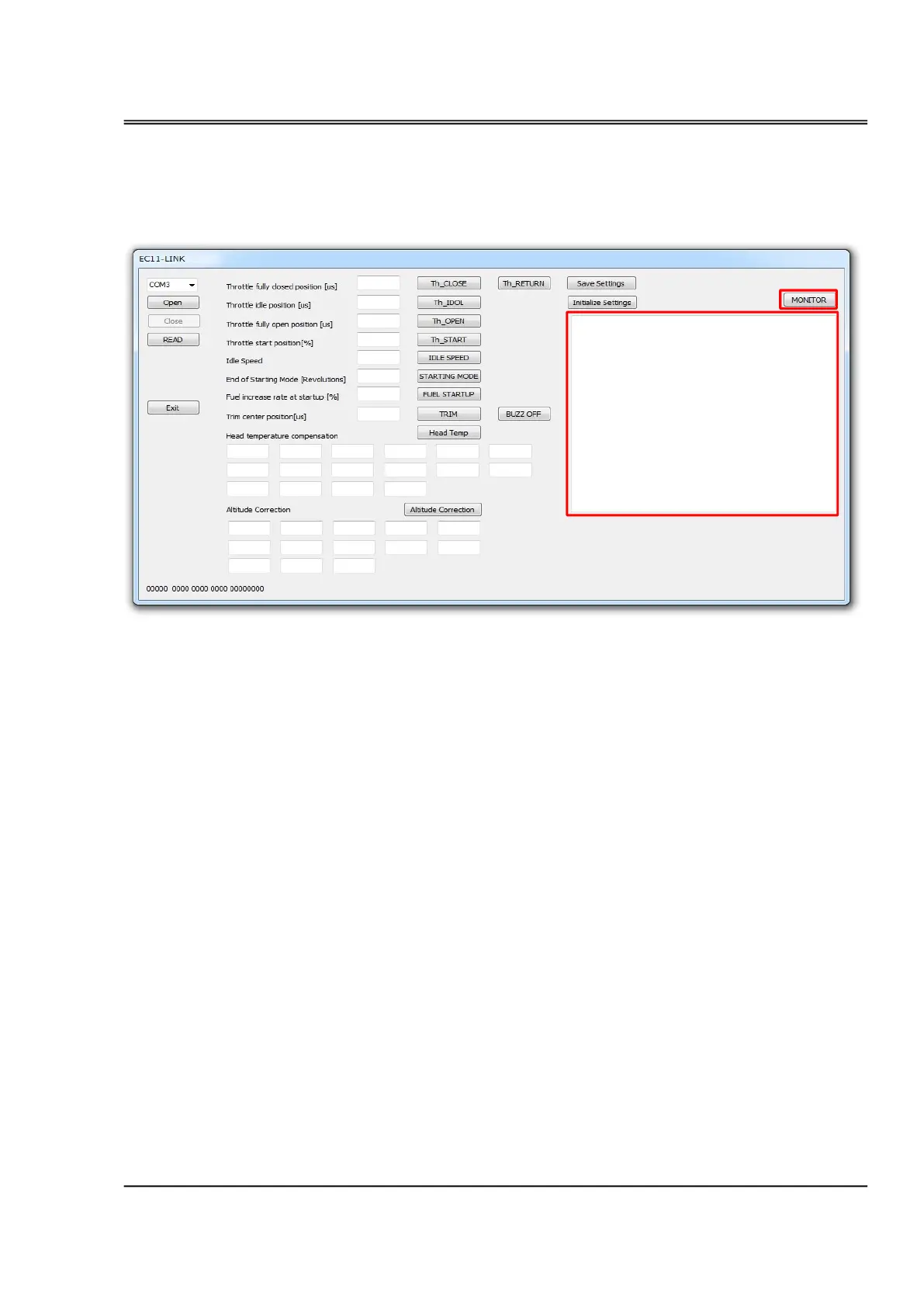

・Press [MONITOR] button with the ECU connected to the PC, and you can monitor the updated
information in the ECU. To exit the MONITOR mode, click [Mon Stop] button ([MONITOR] is switched to
[Mon Stop] during the MONITOR mode).
OPERATION (EC11-LINK)
16
Peak pressurepulse of the negative side in the intake manifold, which is updated per each engine
revolution.
