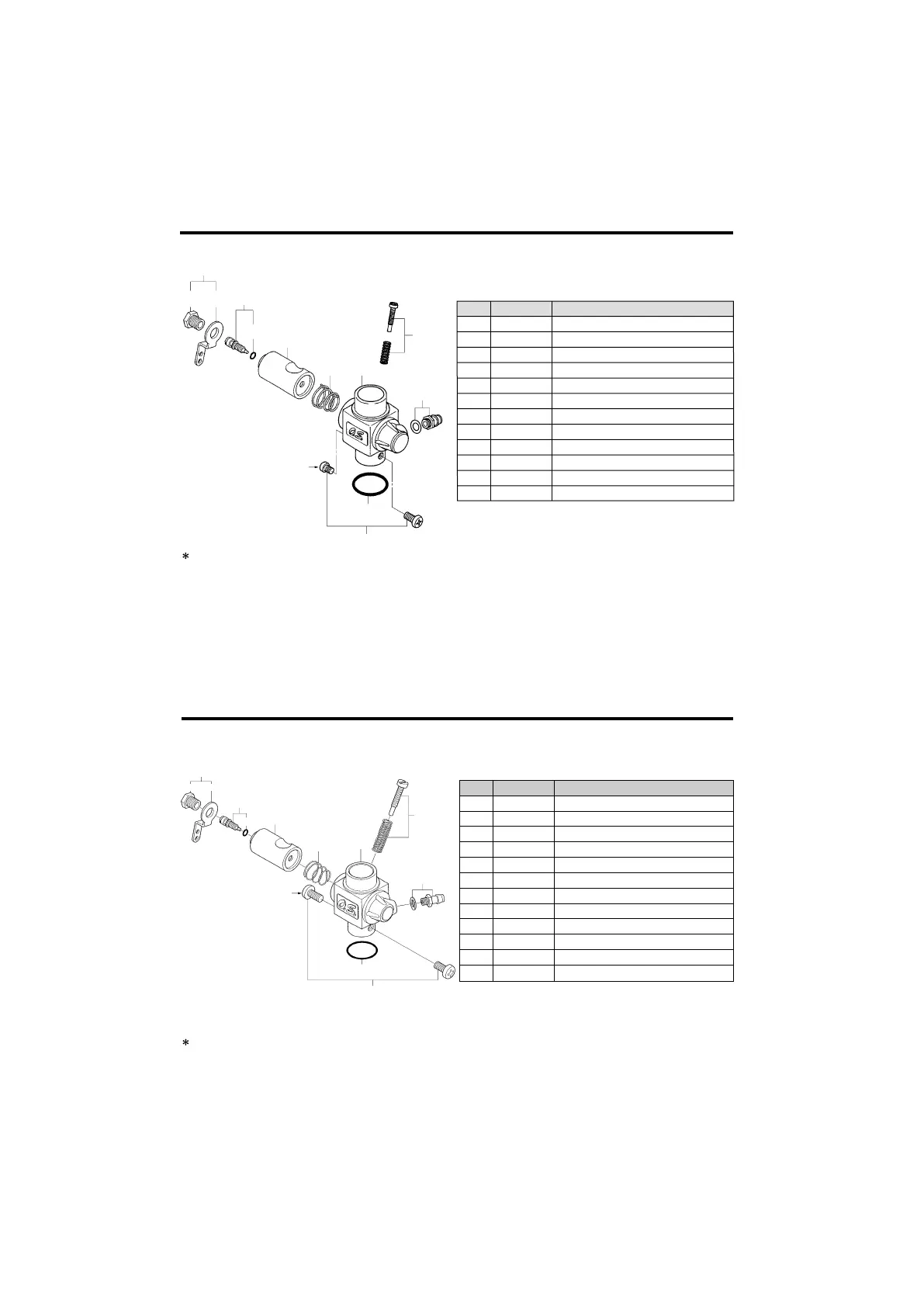

CARBURETOR 40B (50SX,40,46FX)
1
1-1
2
3
4
5
6
7
8
N.+M3.5x6
1-2
9
2-1
Type of screw
C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
Description
Code No.
No.
1
1-1
1-2
2
2-1
3
4
5
6
7
8
9
22781401
22781411
22781420
27783600
22781800
25681200
26781506
25681100
25681620
22681953
46215000
25081700
Throttle Lever Assembly
Throttle Lever
Throttle Lever Fixing Screw
Mixture Control Valve
"O"Ring
Carburetor Rotor
Rotor Spring
Carburetor Body
Throttle Stop Screw
Fuel Inlet (No.1)
Carburetor Gasket
Carburetor Retaining Screw
The specifications are subject to alteration
for improvement without notice.
35
CARBURETOR 60C (61FX)
1
1-1
2
3
4
5
6
7
8
N.+M3.5x6
1-2
9
2-1
1
1-1
1-2
2
2-1
3
4
5
6
7
8
9
22781401
22781411
22781420
27783600
22781800
27783200
26781506
27783100
25681620
22681953
46215000
25081700
Type of screw
C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
Description
Code No.
No.
Throttle Lever Assembly
Throttle Lever
Throttle Lever Fixing Nut
Mixture Control Valve Assembly
"O" Ring
Carburetor Rotor
Rotor Spring
Carburetor Body
Throttle Stop Screw
Fuel Inlet (No.1)
Carburetor Gasket
Carburetor Retaining Screw
The specifications are subject to alteration
for improvement without notice.
To Next Page
