8. Pull off the lower filter plate.
9. Clean the filter box, the lid with lattice pipe, both filter plates and
the tension ring by spraying them with a water hose.
10.Lift the bypass valve slightly and clean the inlet comb of the
Filtoclear UVC (see illustration).
11.Clean the lid sealing ring and the edge of the filter box.
12.Push one filter plate, with the collar facing up, onto the lattice
pipe and the cleaning rods.
13.The filter sponges are pushed on from the casing lid, starting
with a large blue filter sponge and always alternating with a
small red filter sponge. The cleaning rods lie in the two
openings of the large chamber of the filter sponges.
14.Put the filter plate on with the collar facing down. Fasten the
cleaning rods flush to the filter plate using the two screws.
Important: If the cleaning rods can be pushed through the
holes of the filter plate, the filter plate must be turned 90° onto
the other set of holes. The lattice pipe must be completely
covered by the collar diameter.

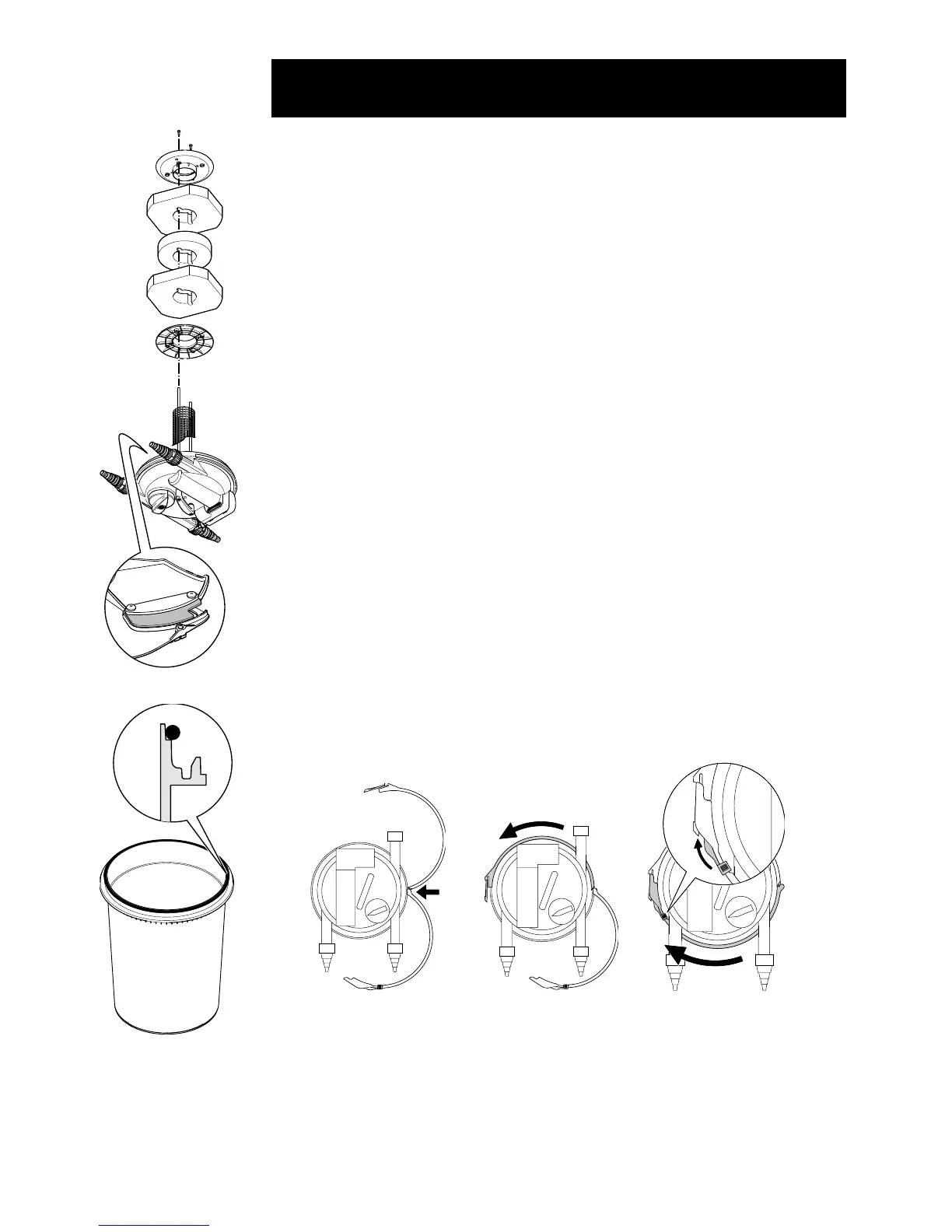

15.Place the lid seal onto the upper edge of the filter box (see
illustration).
16.Press the lid with the filter sponge assembly onto the filter box.
17.Place the tension ring onto the edge of the filter box and lid,
press down on the lid and click the fastening into place. Push
the safety latch in. Caution: Do not jam the cable of the
Filtoclear UVC!
18.Fasten all hoses with flat seals or flow vane to the corresponding
connections by screwing the union nuts on tight.
19.Start the pressure filter up again. (see “Starting up the pressure
filter“)
