or affect the E.M.C. performance of the wheelchair.
The control system’s warranty will be voided if any device other than a
battery charger supplied, with the wheelchair, or the lock key is
connected into this socket.
7 LCD Screen
The status of the control system can be understood by observing the LCD
screen.
Screen Symbols

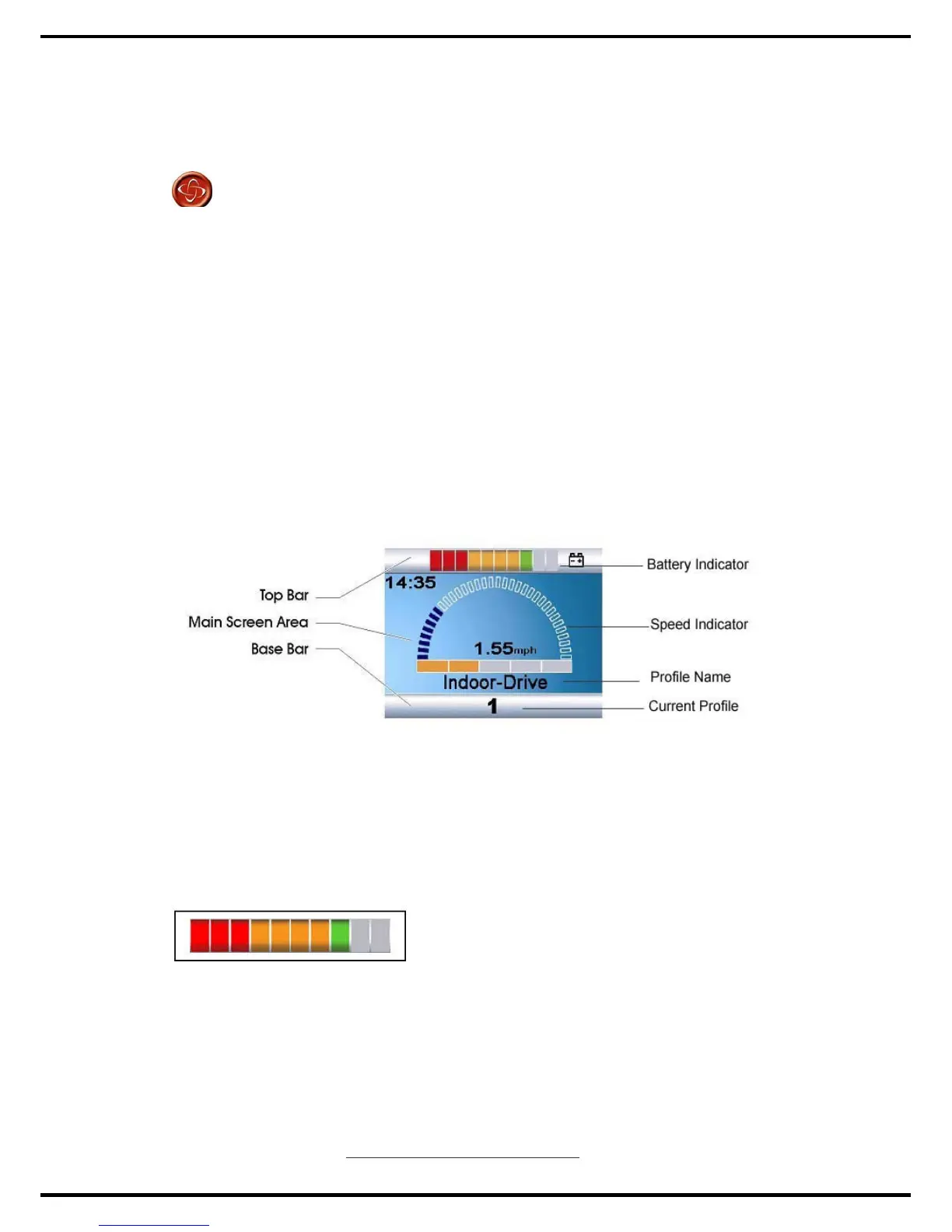

The Drive screen for the R-net has common components, which will always
appear, and components that will only appear under certain conditions. Below
is a view of a typical Drive screen in Profile 1.
7.1 Top Bar
7.1.1 Battery Indicator
This displays the charge available in the battery and can be used to alert the
user to the status of the battery.
Steady
This indicates that all is well.
Flashing Slowly
The control system is functioning correctly, but you should charge the battery
as soon as possible.
