29
40°
Fitting

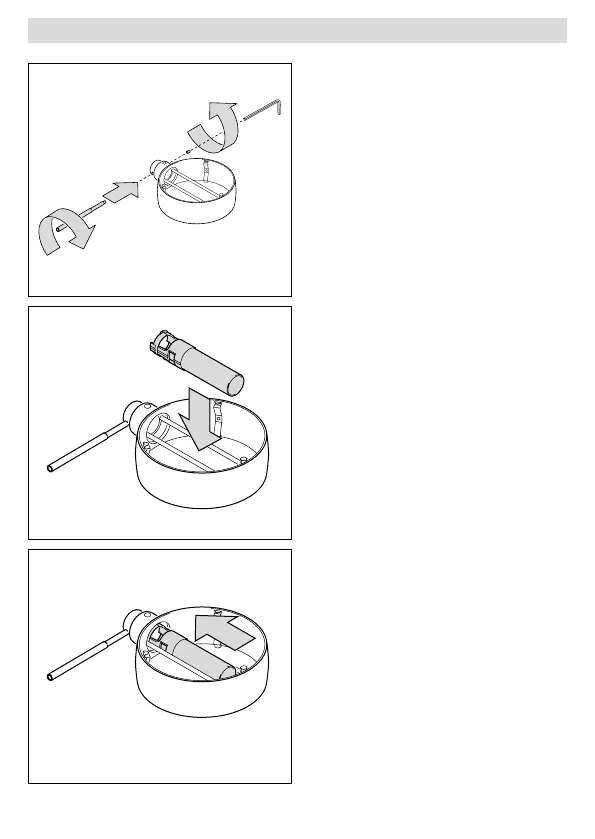

Screw in the carbon rod.
If the lamp head is to be rmly locked in
place, screw in the xing screw provided
on the reverse side.
Insert the diffuser (Sento C, D, E)
If high-voltage halogen clear glass bulbs
are used in Sento C, D and E (lens), the
diffuser enables even diffusion of the light.
Clamp the diffuser with side grooves bet-
ween the bars of the reector head.
Slide the diffuser into the recess until the
springs engage.
The rest of the tting procedure for the
reector head is the same.
