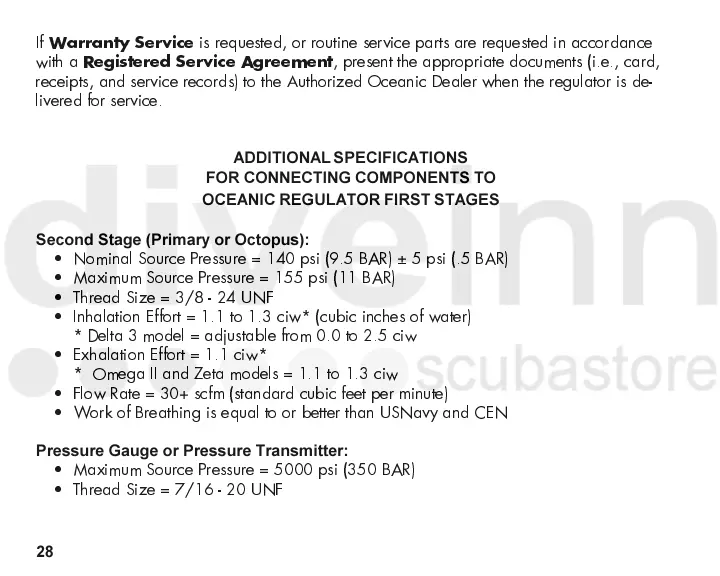

If
Warranty Service
is requested, or routine service parts are requested in accordance
with a
Registered Service Agreement
, present the appropriate documents (i.e., card,
receipts, and service records) to the Authorized Oceanic Dealer when the regulator is de-
livered for service.
ADDITIONAL SPECIFICATIONS
FOR CONNECTING COMPONENTS TO
OCEANIC REGULATOR FIRST STAGES
Second Stage (Primary or Octopus):
Nominal Source Pressure = 140 psi (9.5 BAR) ± 5 psi (.5 BAR)
Maximum Source Pressure = 155 psi (11 BAR)
Thread Size = 3/8 - 24 UNF
Inhalation Effort = 1.1 to 1.3 ciw* (cubic inches of water)
* Delta 3 model = adjustable from 0.0 to 2.5 ciw
Exhalation Effort = 1.1 ciw*
* Omega II and Zeta models = 1.1 to 1.3 ciw
Flow Rate = 30+ scfm (standard cubic feet per minute)
Work of Breathing is equal to or better than USNavy and CEN
Pressure Gauge or Pressure Transmitter:
Maximum Source Pressure = 5000 psi (350 BAR)
Thread Size = 7/16 - 20 UNF
