8.ENGINE
8-26

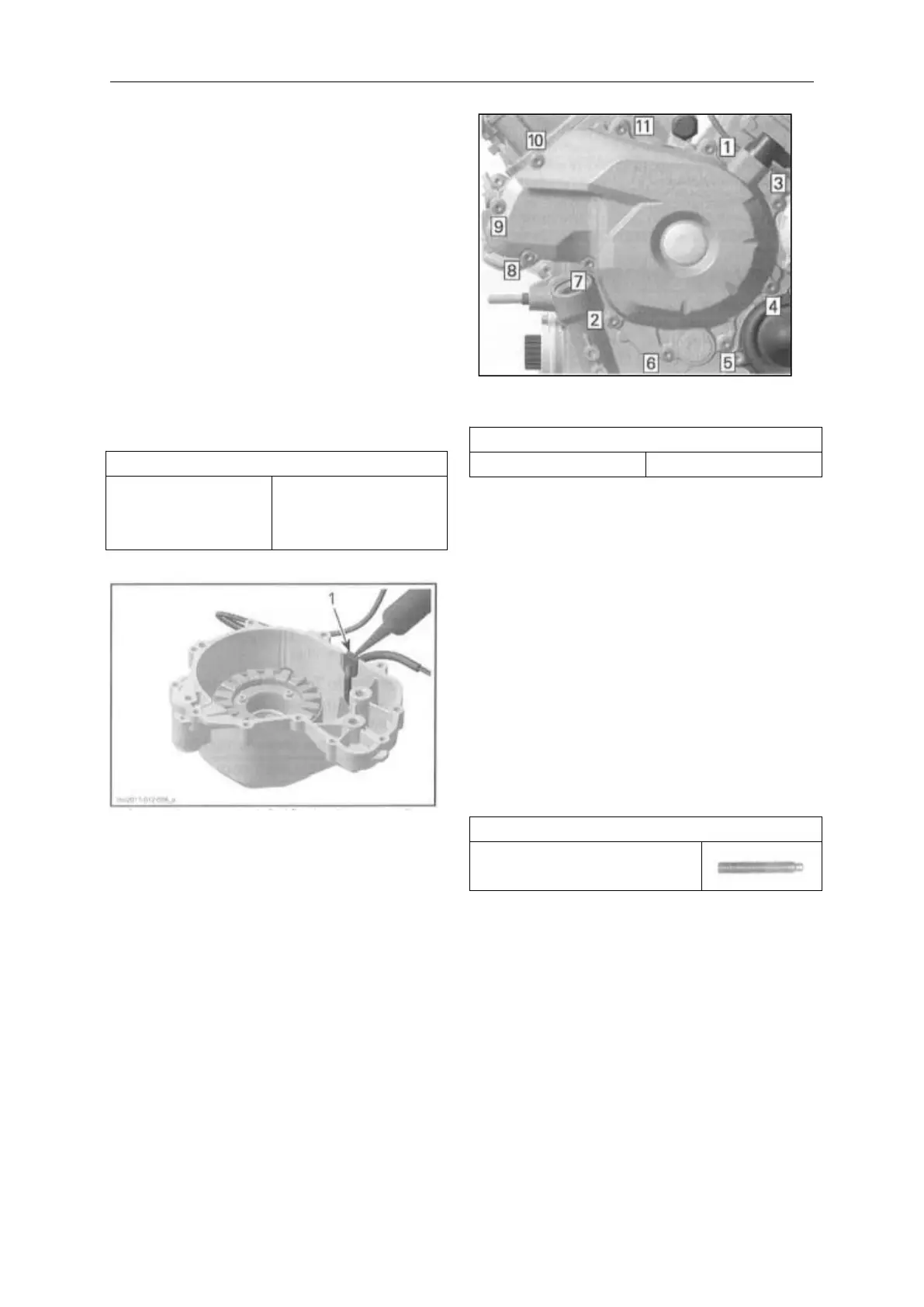

For installation, reverse the removal
procedure. However, pay attention to the
following.
NOTE: Install a NEW magneto cover
gasket.
Apply sealant on stator cable grommet
as shown in next illustration.
REQUIED TOOL
Stator cable gromment
DREI BOND
SEALING
COMPOUND
1. Stator cable grommet (apply Drei Bond
sealing compound
Tighten screws using the following
sequence
TIGHTENING SEQUENCE
TIGHTENING TORQUE
Mangneto cover screws
12.5N.m±1N.m
ROTOR
Removing the Rotor
Remove MAGNETO COVER. See
procedure in this subsection.
Lock crankshaft(refer to CRANKSHAFT
LOCKING PROCEDURE in the BOTTOM
END subsection).
REQUIRED TOOL
CRANKSHAFT LOCKING
BOLT
Heat screw in order to break the Loctite.
Remove screw and washer securing rotor
to crankshaft.
