ODES WORKCROSS UTV650 - Page 143

8.ENGINE
8-42
Inspecting the Camshaft
Inspecting the Camshaft Lobe
Check each lobe for scoring, scuffing,
cracks or other signs of wear.
Measure camshaft lobe height using a
micrometer

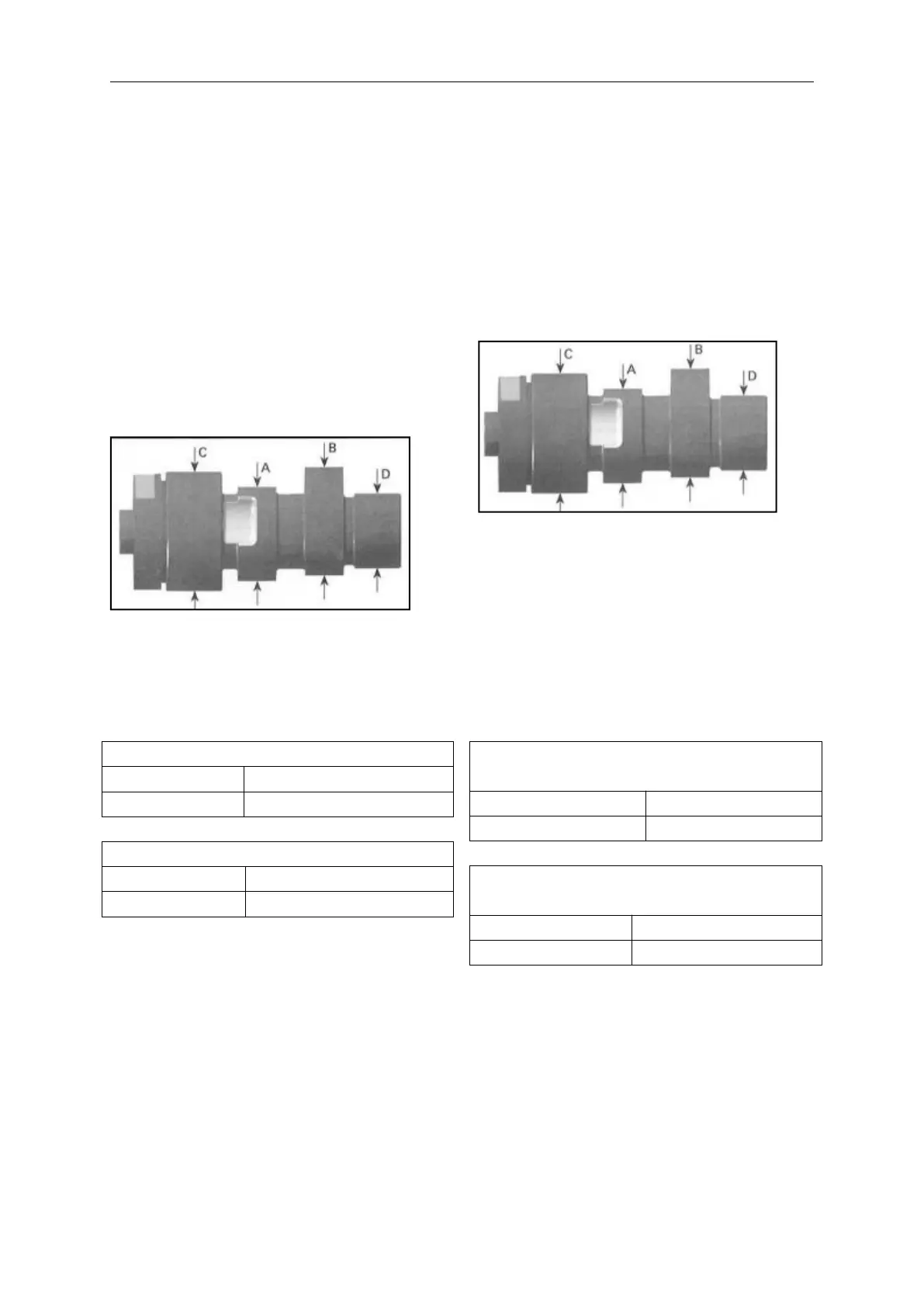

A. Camshaft lobe (exhaust valves)
B. Camshaft lobe (intake valves)
C. Camshaft journal (timing chain side)
D. Camshaft journal (spark plug side)
CAMSHAFT LOBE (EXHAUST)
NEW
32.860 mm to33.060 mm
SERVICE LIMIT
32.840 mm
CAMSHAFT LOBE (INTAKE)
NEW
32.960 mm to33.160 mm
SERVICE LIMIT
32.940 mm
Measure camshaft bearing in cylinder
head . Refer to CYLINDER HEAD
INSPECTION in this subsection.
Inspecting the Camshaft Journal
Check each journal for scoring, scuffing,
cracks or other signs of wear.
Measure camshaft journal using a
micrometer .
A. Camshaft lobe (exhaust valves)
B. Camshaft lobe (intake valves)
C. Camshaft journal (timing chain side)
D. Camshaft journal (spark plug side)
CAMSHAFT JOURNAL
(TIMING CHAIN SIDE)
NEW
34.959mm to34.975mm
SERVICE LIMIT
34.950 mm
CAMSHAFT JOURNAL
(SPARK PLUG SIDE)
NEW
21 959 mm to21 980 mm
SERVICE LIMIT
21 .950 mm
Installating the Camshaft
For installation, reverse the removal
procedure. Pay attention to the following
details.
