8.ENGINE
8-59
the piston pin bore or the thrust side
axis.

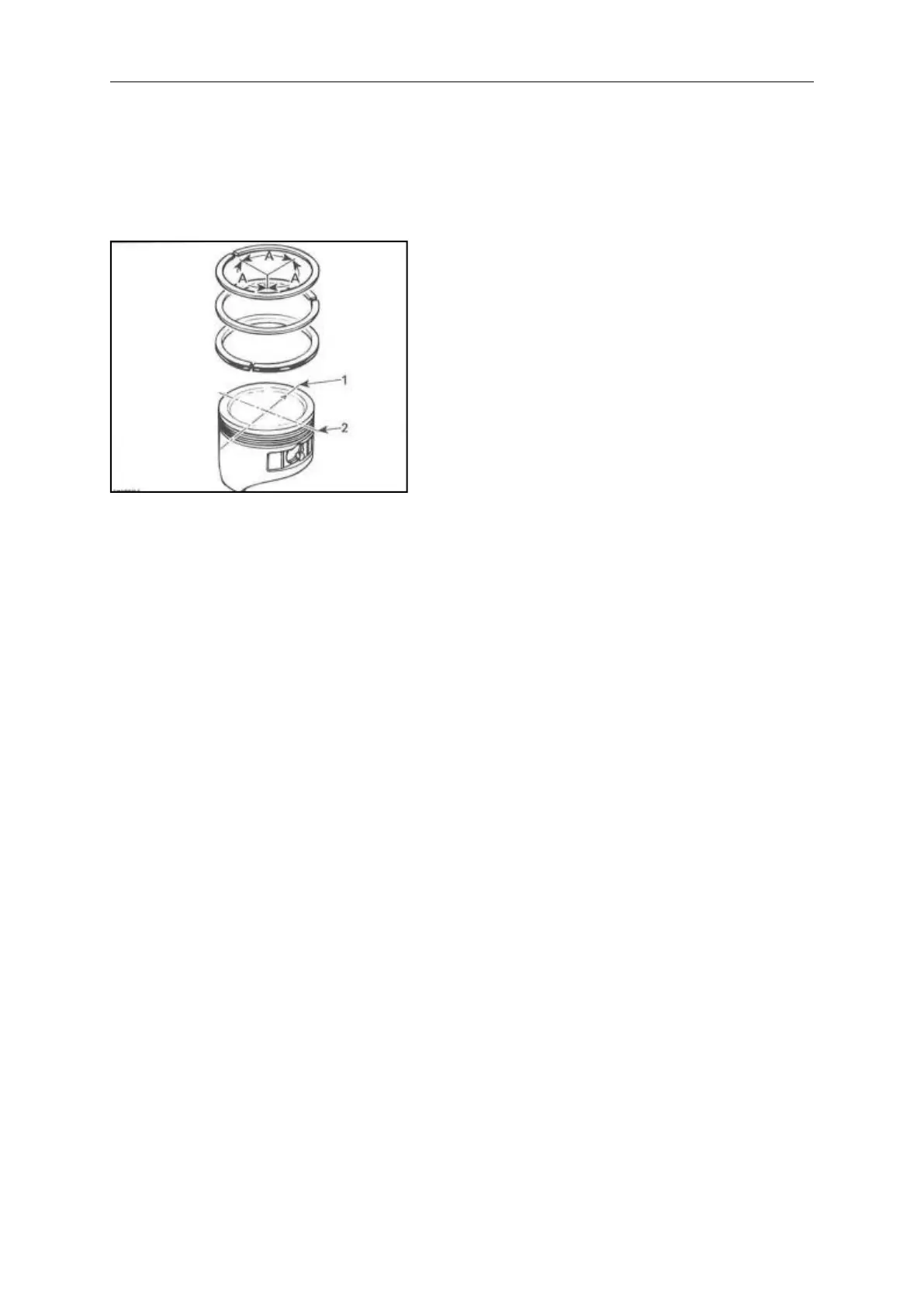

1. DO NOT align ring gap with piston
thrust side axis
2. DO NOT align ring gap with piston
pin bore axis
A. 120°
