Check if crankshaft timing gears are
excessively worn or damaged.
Replace if necessary. Refer to
CRANKSHAFT in the BOTTOM END
subsection.
Installating theTiming Chain
The installation is essentially the reverse
of the removal procedure, but pay
attention to the following details.
NOTE: Installation is the same for both
timing chains.
Install timing chain with camshaft
timing gear.
NOTE: Ensure to carry out proper valve
timing, refer to CAMSHAFT TIMING
GEARS in this subsection.
NOTICE Improper valve timing will
damage engine components.

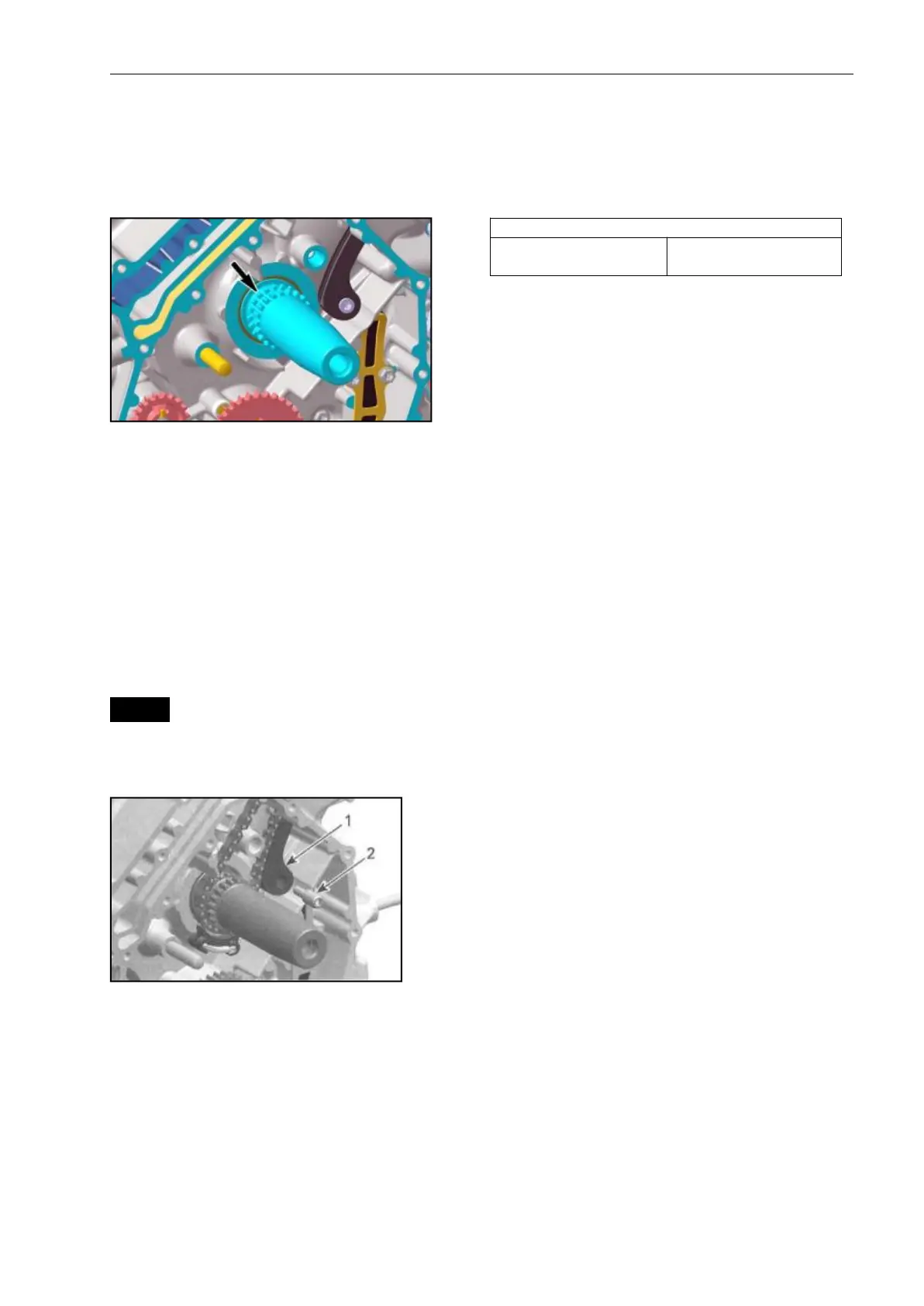

TIMING CHAIN GUIDE
(TENSIONER SIDE)
1. Timing chain guide (tensioner side)
2. Bearing screw
Removing the Timing Chain Guide
(Tensioner Side)
Refer to TIMING CHAIN in this
subsection
Inspecting the Timing Chain Guide
(Tensioner Side)
Check timing chain guide for wear,
cracks or de- forming. Replace if
To Next Page
