2.PERIODICMAINTENANCE
2-15
rack mounting, straps and strap attachment
points. For battery testing, refer to
CHARGING SYSTEM subsection.
Replacing the Spark Plug
Removing the Spark Plug
Unplua the spark plua cable.
Clean the spark plug area with pressurized
air.
Unscrew spark plug.
Installing the Spark Plug.
Prior to installation make sure that contact
surfaces of the cylinder head and spark
plug are free of grime.
1. Using a wire feeler gauge, verify the
electrode TD Specified in TECHNICAL
SPECIFICA.
2. Apply anti seize lubricant over the spark
plug threads to prevent possible seizure.
3. Hand screw spark plug into cylinder head,
then tighten with a torque wrench and an
appropriate socket.
TIGHTENING TOROUE
Spark plug
20N.m ± 2 N.m
(15bf.ft ±1 lb.ft)
DRIVE SYSTEM
Verifying the Front Differential Oil Level
Clean filler plug prior to checking oil level.
With vehicle on a level surface, check oil
level by removing filler plug. Oil level must
reach the lower edge.
Reinstall filler plug with a new sealing ring.
TIGHTENING TOROUE
Filler plug
16.5N.m ± 2.5 N.m
(146bf.in ±22lbf.in)
Replacing the Front Differential Oil
Place vehicle on a level surface. Set
transmission in park position.
From underneath of vehicle, clean drain
plug area.

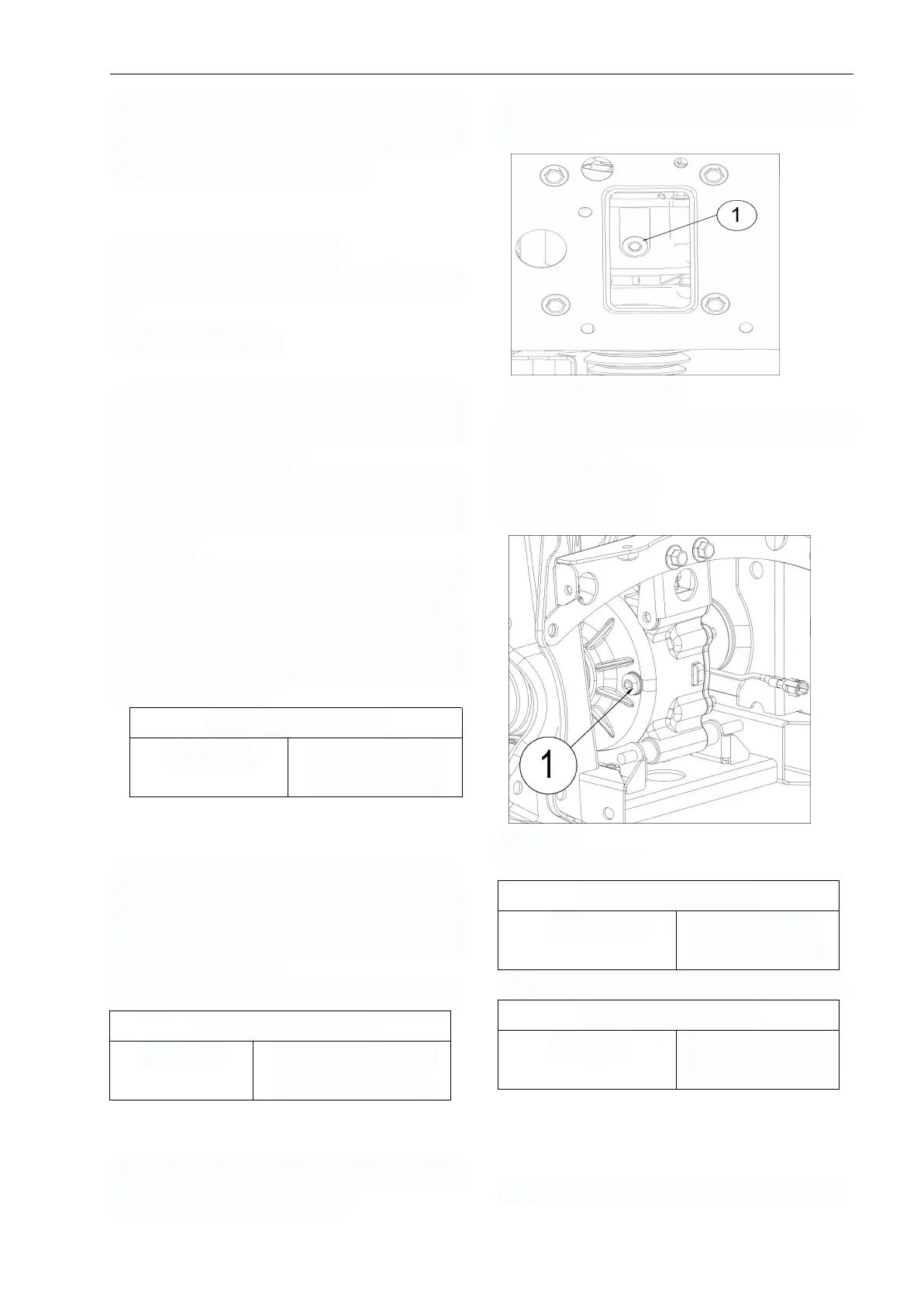

1. Drain plug access hole
Place a drain pan under the front
differential.
Remove drain plug.
Unscrew filler plug.
1. Filler plug
Install drain plug.
TIGHTENING TORQUE
Drain plug
2.7N.m±0.3N.m
(24 lbf.in 3 Ibf.in)
Reinstall filler plug with a new sealing ring.
TIGHTENING TORQUE
Filler plug
16.5N.m±2.5N.m
(146lbf.in 22Ibf.in)
Inspecting the Drive Shaft Boot and
Protector
Visually inspect each drive shaft boot for
