STEERING SYSTEM
ALIGNING THE WHEELS
1. Place vehicle on a level surface.
2. Inflate tires to recommended pressure.
3. Find rack and pinion center to center as
follows:
a. Calculate the total steering wheel
otations from side to side.
b. Position the steering wheel at half the
total rotations.
4. Check steering wheel position:
a. If stelering wheel is centered (within +
5°).go to step 6.
b. If steering wheel is offset more than 5°,
go to step 5.

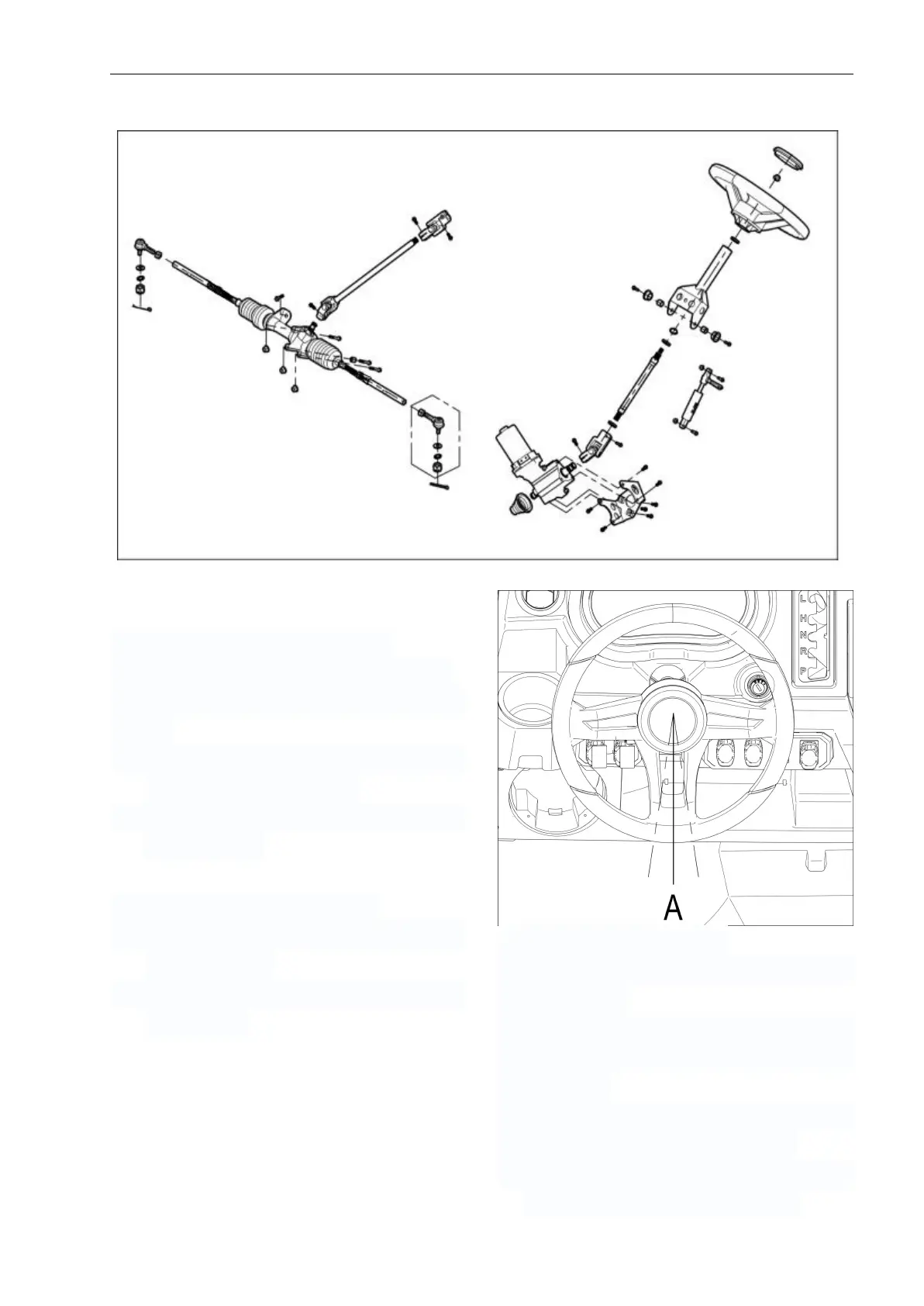

A. Steering wheel angle ±5°
5. Reposition steering wheel on steering
shaft as follows:
NOTICE： Make sure rack and pinion does
not move during steering wheel
repositioning.
a. Remove steering wheel. Refer to
REMOVNG THE STEERING COLUMN.
b. Reinstall steering wheel to the closest
centered position (nearest spline).
