Operating Instructions and Parts Manual 24666
11/18
2018 OEMTOOLS
™
1/2" DRIVE IMPACT WRENCH
Figure Description Qty.
1 Self-Tapping Screw ST4.9 x 50 4
2 Spring Washer 4
3 Washer 4
4 Front Housing 1
5 Washer 1
6 Bushing 1
7 Washer 1
8 Anvil 1
9 Ball 2
10 Impactor 1
11 Ball 19
12 Washer 1
13 Spring 1
14 Inner Shaft 1
15 Gear 1
16 Washer 1
17 Bushing 1
18 Washer 1
19 Washer 1
20 Double Connect Gear 1
21 Airproof Washer 1
22 Pin 1
23 Felt Seal 1
24 Bearing Seat 1
25 Washer 1
26 Spacer 1
Figure Description Qty.
27 Bearing 6000-2RS 1
28 Retaining Clip 1
29 Fan 1
30 Rotor Assembly 1
31 Bearing Sleeve 1
32 Magnetic Ring 1
33 Baffle Plate Rear 1
34 Pendulum Plate 1
35 Self-Tapping Screw ST3.9 x 70 2
36 Stator 1
37 Switch Assembly 2
38 Housing 1
39 Decorative Plate 4
40 Carbon Brush 1
41 Brush Holder 1
42 Carbon Brush Cap 2
43 Back Cover 1
44 Self-Tapping Screw ST3.9 x 20 4
45 Front Handle 1
46 Self-Tapping Screw ST3.9 x 20 3
47 Self-Tapping Screw ST3.9 x 14 2
48 Cord Clamp 1
49 Terminal Block 1
50 Cord 1
51 Cord Guard 1

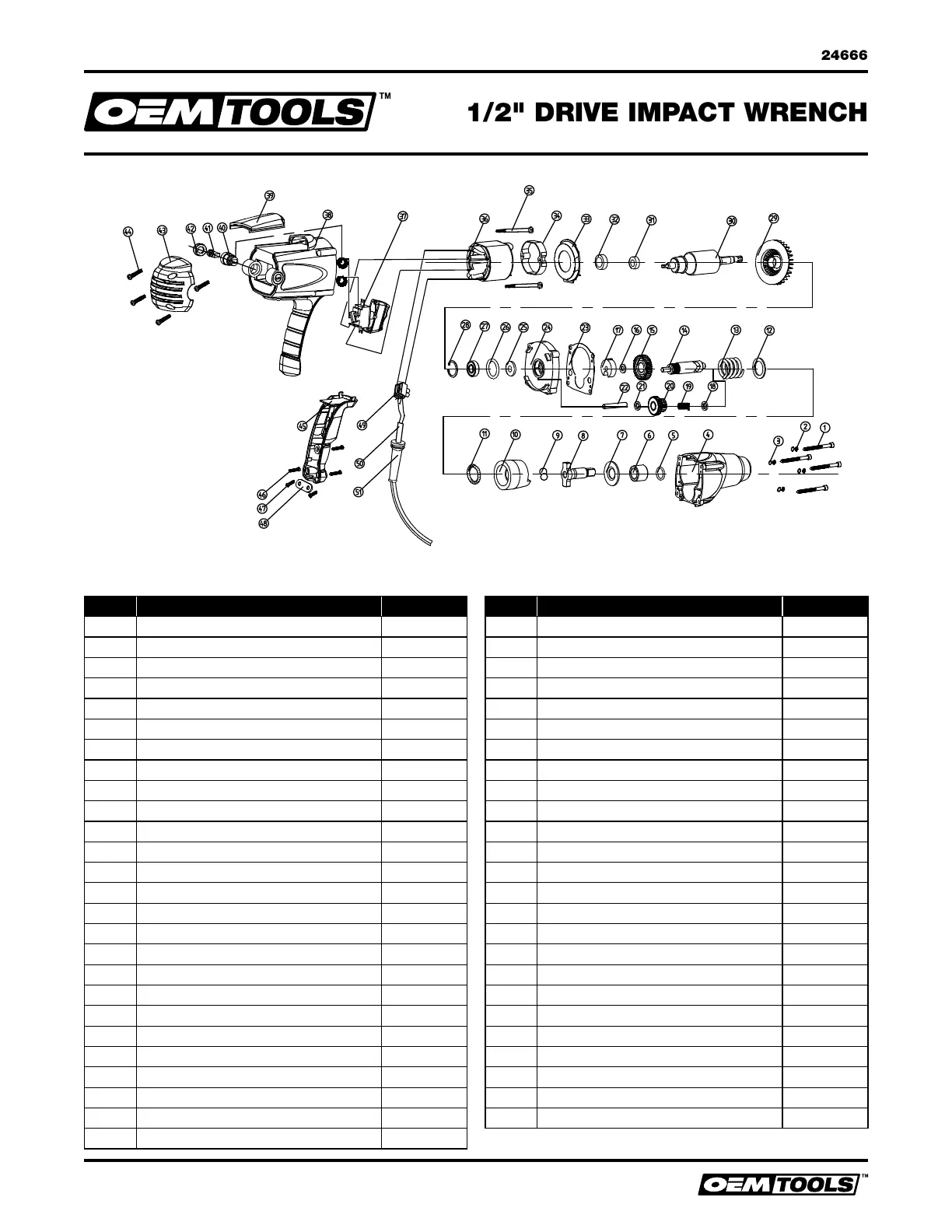

PARTS DESCRIPTION
NOTE: Not all components of the Impact Wrench are replacement items, but are illustrated as a convenient
reference for location and position in the assembly sequence.
