OEM Tools 24819 - Product Layout and Parts Description; Product Component Identification

7
Operating Instructions and Parts Manual 24819
2/18
2018 OEMTOOLS
™
120V SPOT WELDER
Figure Description Quantity
A Spot Welder 1
B Fixed Handle 1
C Operating Lever 1
D Support Handle 1
E Rear Jam Nut 1
F Upper Tong Holder 1
G Front Jam Nut 1
H Pressure Screw 1
I Upper Tong Adjustment Screws* 4
J
Power Switch
1
K Upper Tong 1
L Lower Tong 1
M Electrode Tips 4
N Lower Tong Adjustment Screws* 4
O Power Cord 1

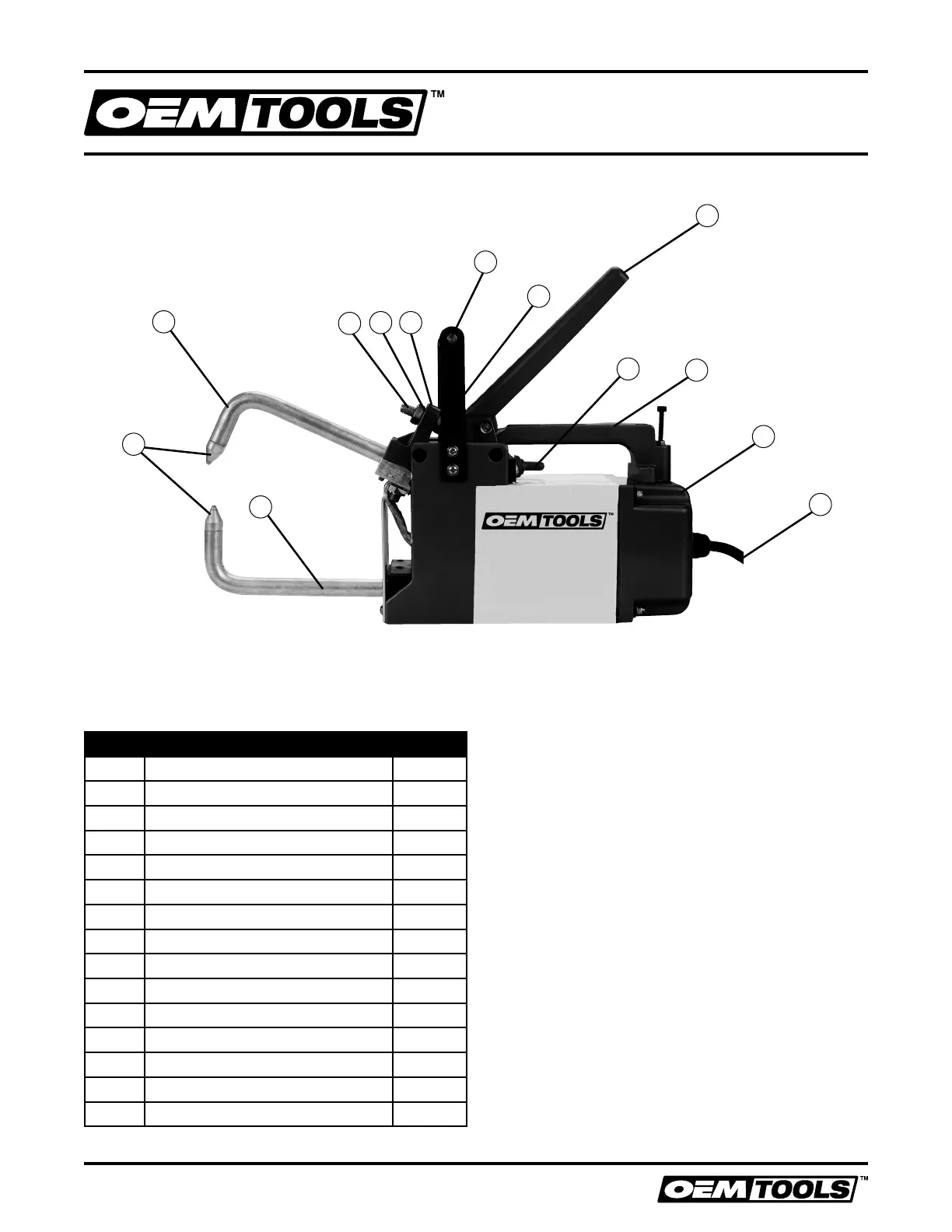

PRODUCT LAYOUT
PARTS DESCRIPTION
*Not Shown
M
L
K
H
G F
D
E
C
J
B
A
O
