Oemtools 23976 - Parts Diagram and List; Parts Diagram; Parts List

6
Operating Instructions and Parts Manual 23976/23977
12/18
2018 OEMTOOLS
™
3 SPEED EVAPORATIVE COOLER

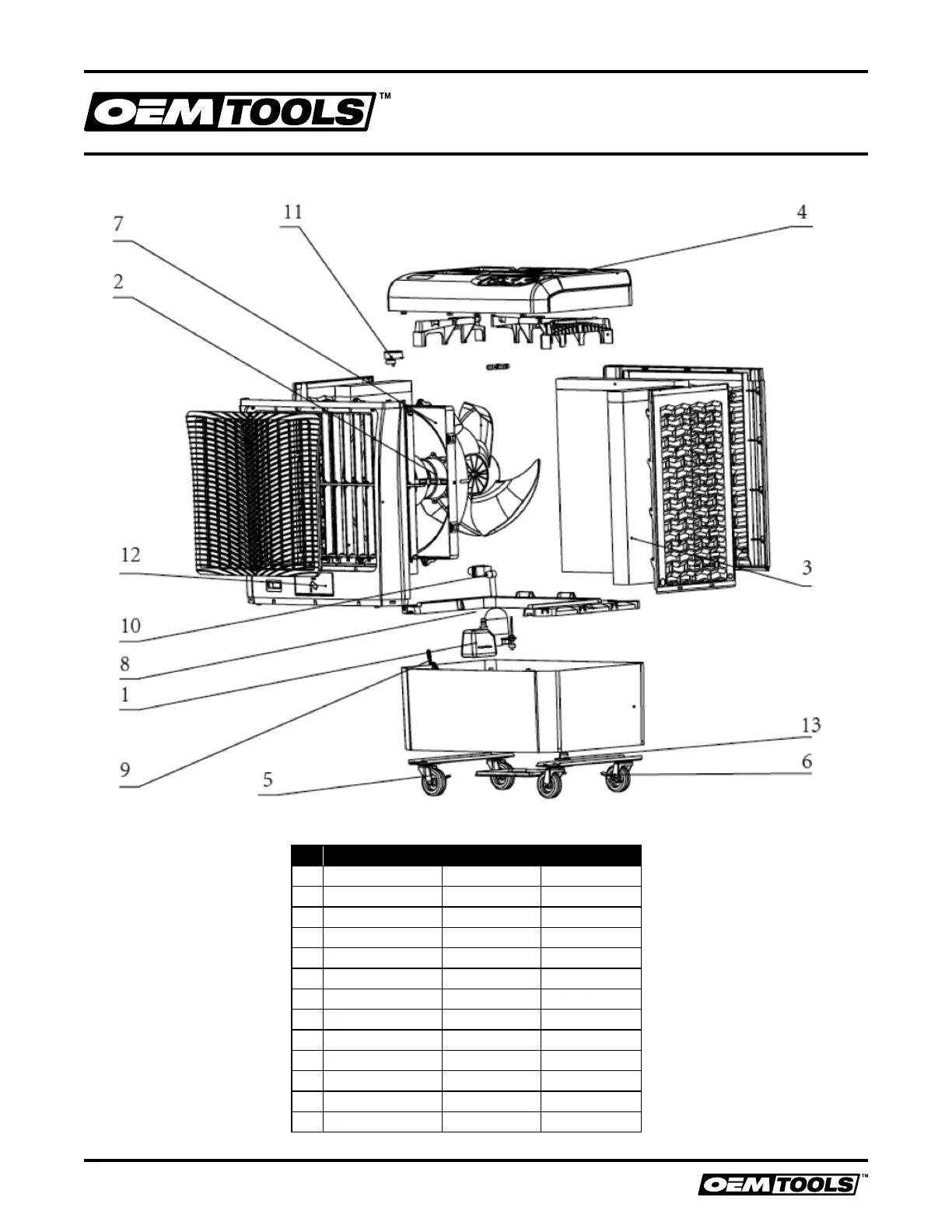

PARTS DIAGRAM
No. Part Name 23976 Part # 23977 Part #
1 Pump 6036050 6060050
2 Motor 6037051 6061051
3 Rigid Media Set CP370 CP610
4 Control Board 6037069 6037069
5 Casters 6036061 6060061
6 Casters w/lock 6036062 6060062
7 Fan Blade 6037052 6061052
8 Float Valve 6018058 6018058
9 Hose Adapter 6018088 6018088
10 Water Level Float 6037059 6037059
11 Oscillator Motor 6037057 6037057
12 Water Fill Door 6037076 6037076
13 Drain Plug 6017081 6017081
PARTS LIST
