Operating Instructions and Parts Manual 87042
1/19
2019 OEMTOOLS
™
18 GALLON
METAL OIL DRAIN
4. Open the evacuation hose valve.
5. Connect shop air to the venturi assembly on the tank.
Reference product specifications for inlet size and type.
6. Open the valve on the venturi assembly.
WARNING: DO NOT exceed max reservoir pressure
listed in product specifications. Failure to comply may
lead to product failure, and may result in personal injury
and/or property damage.
7. Oil will drain from the reservoir through the drain hose
and into the oil collection reservoir.
8. Once all oil has drained from the oil drain, close the
valve on the venturi assembly. Disconnect air supply.
9. Close the evacuation hose valve.
10. When complete, follow all federal, state and local laws
for oil disposal and recycling procedures.
MAINTENANCE
Periodically inspect the oil drain. Ensure all parts move
freely. Apply lubrication as needed.
STORAGE
Store the portable oil drain in an upright position and in
a clean, dry area. DO NOT store near flammable items
or open flames. This could lead to explosion or result in
personal injury and/or property damage.
Figure Description Qty.
A
Funnel 1
B Extension 1
C Valve Lever on Coupler 1
D Coupler 1
E Transportation Handle 1
F Evacuator Drain Hose 1
G Venturi Assembly 1
H Venturi Valve Lever 1
I Reservoir 1
J Rear Fixed Casters 2
K Front Swivel Casters 2
L (Not Shown) Drain Level Indicator 1
M (Not Shown) Evacuation Drain Hose Valve Lever 1

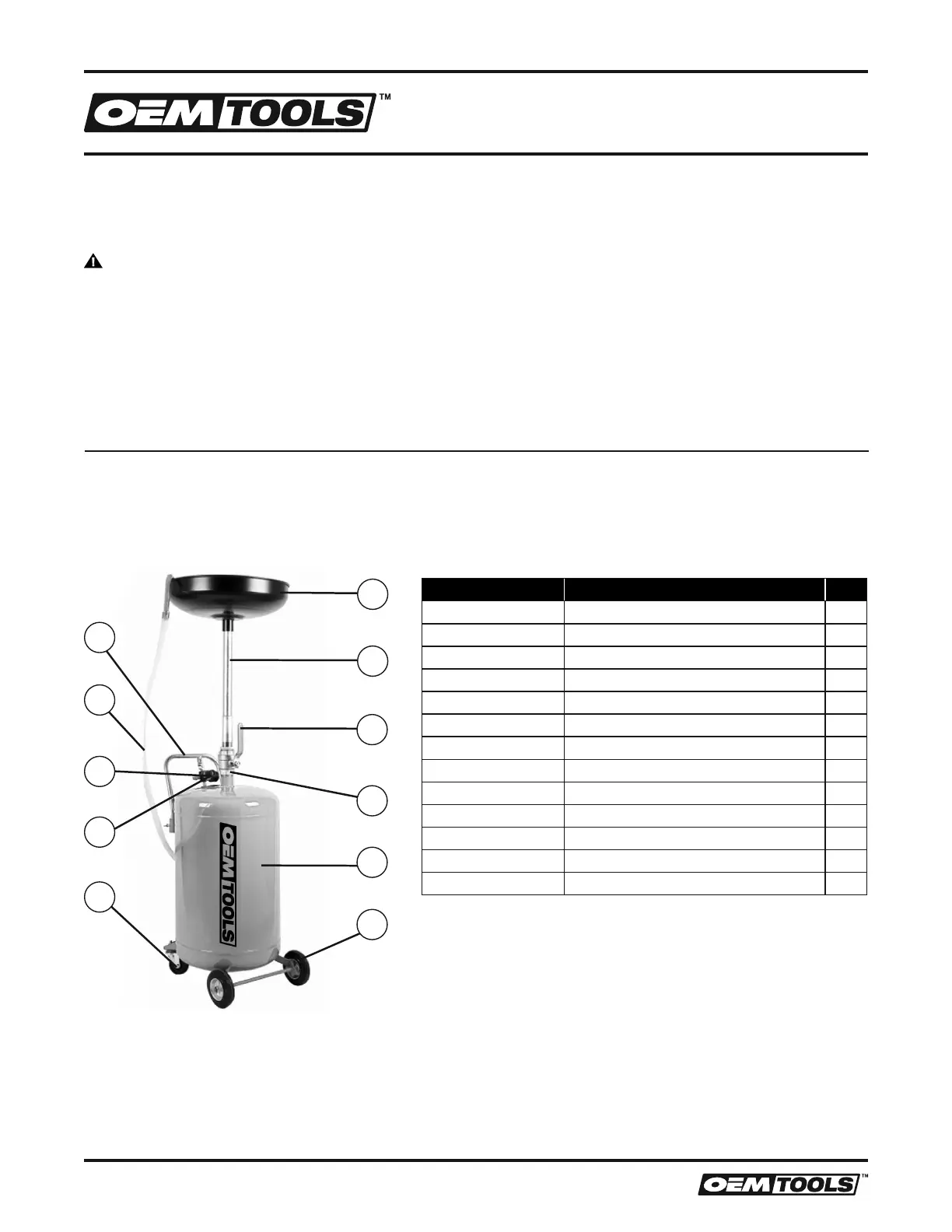

PARTS LIST
A
B
C
H
J
K
G
I
D
E
F
PARTS DIAGRAM
