34 SLIM OFF_(DC)_IM_20221115
EASY FIX INSTALLATION
The operations indicated in this section must be performed by a qualified installer. To avoid cutting risks, always use
appropriate PPE (personal protective equipment).
The product is installed in the housing using the Easy Fix system. This system has four special pre-drilled points inside the
case for simple and effective installation that is not visible from the outside.
Always block the product so it cannot tilt/slide forward when pulling out the drawer or in the event of sudden vehicle
movements. Anchor the product in at least 2 mounting points.

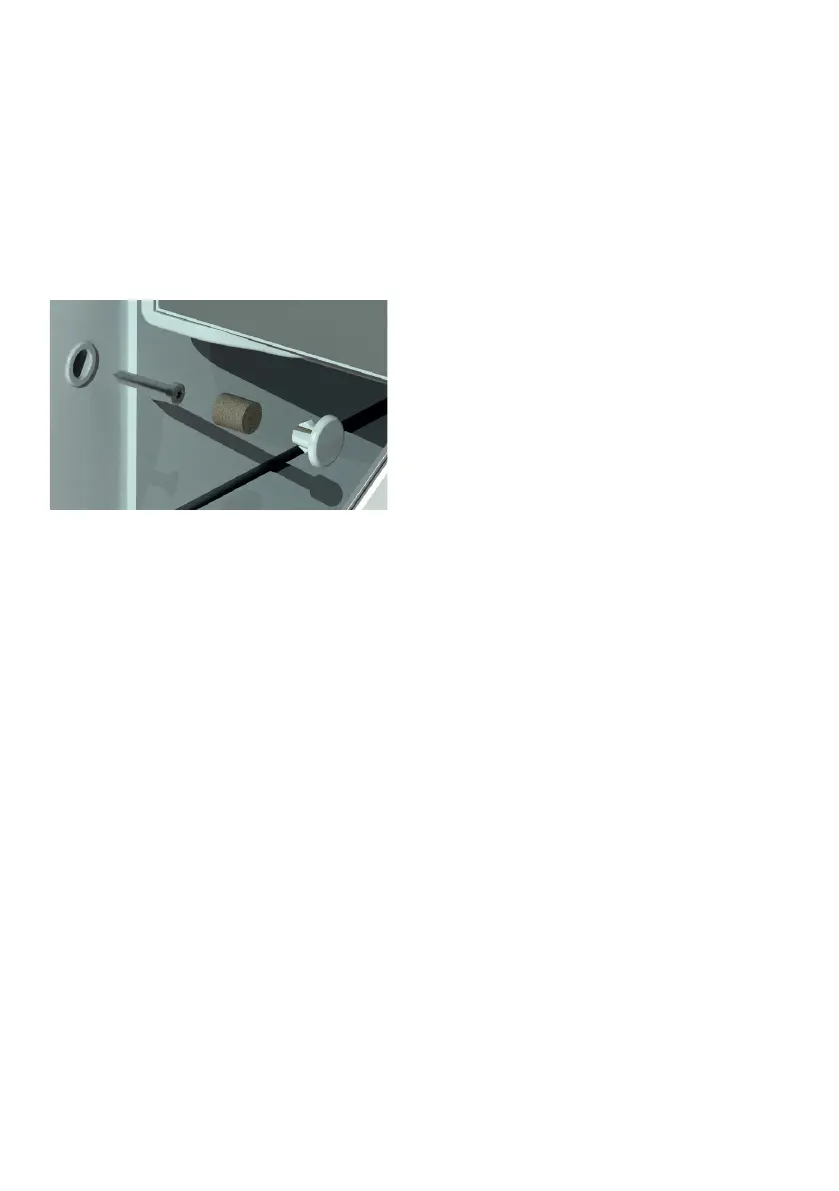

1. Attach the product with screws, using the
predefined positions in the housing:
2. Use the white plugs for closing.
