OHIOSTEEL 3040P-SD - Page 6

Tighten Bolts
on Front Support
after Latching
into Drawbar

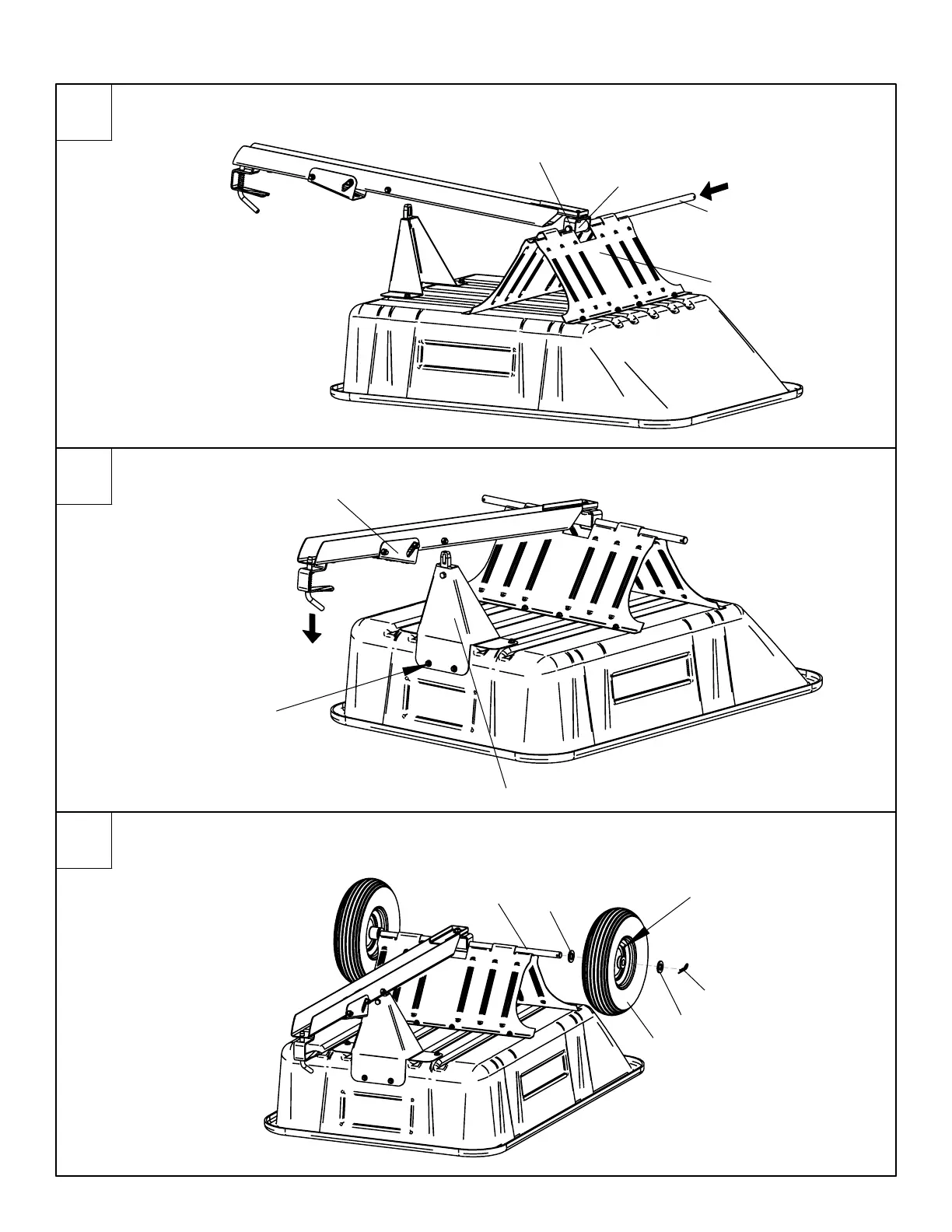

Depress Foot Pedal (12) and insert Drawbar assembly into Front Support (3) .
12
3
24
20
24
25
MAKE SURE
VALVE STEM
IS FACING OUT
4
26
6
4
2
Align Center Spacer (26) and Swivel Clevis (6) with Axle (4). Push Axle (4) through
Swivel Clevis (6) and Spacer (26) and then through rest of Undercarriage (2).
Slide Washers (24) and Wheels (20) onto Axle (4) and secure with Hairpins (25)
as shown.
5
Assembly Instructions
4
6
5
