OHIOSTEEL 4222V2 - Assembly Instructions; Insert Tension Tube Assembly; Secure Hopper Bag with Velcro

38
42
41
Velcro Tab
38
41
42
G
DETAIL G
SCALE 1 : 4
OPENING
R
DETAIL R
SCALE 1 : 1
T

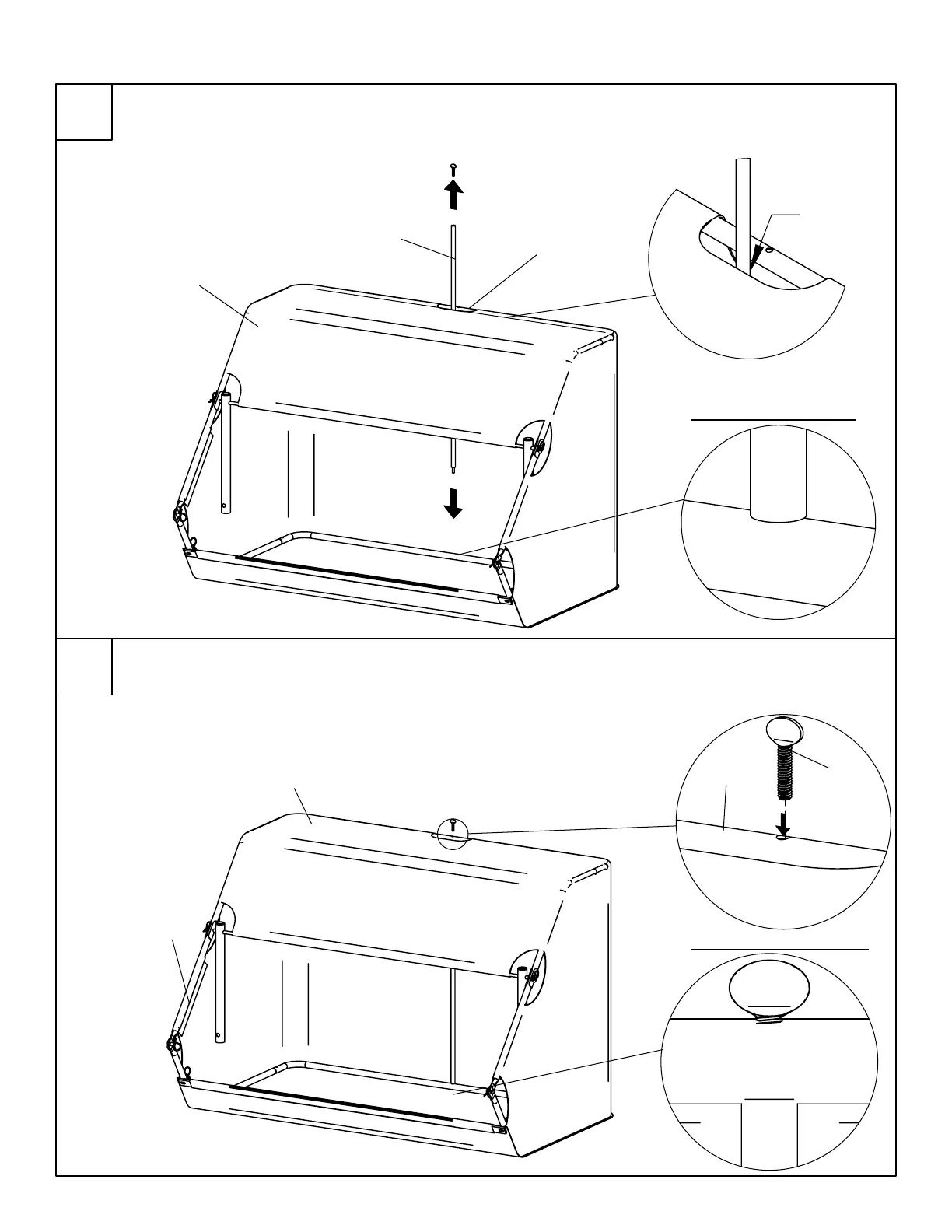

Unscrew Thumb Screw from Tension Tube Assembly (44). Next, Hold Hopper Bag (38)
open and carefully insert Tension Tube Assembly (44) through opening in Hopper Bag and
into hole in bottom Center Frame Tube (41). Pull top Center Frame Tube over tension tube
and align holes.
Insert thumb screw that came with Tension Tube Assembly (44) through top Center Frame
Tube (41) and screw into top of Tension Tube. Secure Hopper Bag around Top Frame
Tubes with Velcro tabs.
SHOWN INSTALLED
SHOWN INSTALLED
