OHIOSTEEL 48CP - Step 7: Hook Tine Spring; Step 8: Verify Tine Direction; Step 9: Install Locking Handle

A
B
12
17
11
18
19
20
26
25
6
16

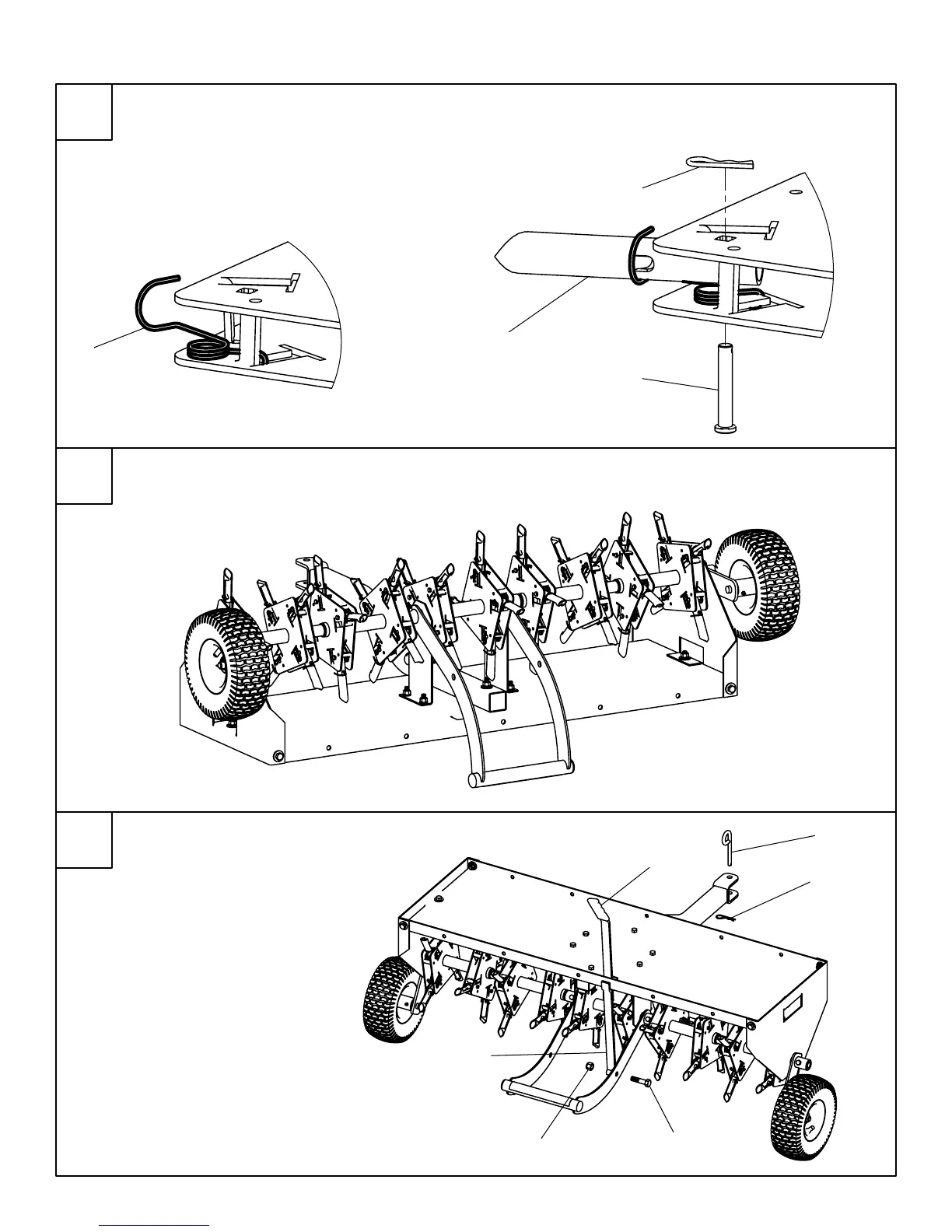

Hook the Tine Spring into the cutout as shown on the left.
Push the Tine Spring towards the center of the Spool until it locks into the slot.
Slide the Tine into the Tine Spring.
Secure with pins as shown.
Rotate each Spool and verify that all 40 Tines are pointed in the same
direction as shown.
Slide Locking Handle through hole in Top Plate
and fasten to Foot Lever.
Install Handle Grip and
Hitch Pin as shown.
DO NOT TIGHTEN NUT COMPLETELY,
BOLT MUST SPIN FREELY.
5
Assembly Instructions
7
9
8
