3.4
Remove the steel adaptor from the cylinder
tube adaptor.
3.5
Apply function grease (00159-01) on the
original O-ring and insert it in the fork bottom.
3.6
Insert the steel adaptor in the fork bottom.
Caution!✋
Make sure to install the adaptor correctly. See
gure.
Note!1
Do not install the original steel washer removed
in chapter 2.
3.7
Apply function grease (00159-01) on the O-ring
and install the plug provided in the kit. Tighten
to 12 Nm.
3.8
Apply threadlocker (01791-05) on the steel
tube. Tighten to 130 Nm.
3.9
Apply threadlocker (01791-05) on the steel
tube lock screw. Tighten to 3 Nm.
3.10
Carefully insert the cartridge in the fork
leg. Apply [moly-grease or equivalent] on
the adaptor thread. Use the seal head tool
(01797-09) to install the cartridge into the front
fork and tighten to 30 Nm.
Note!1
Make sure that the seal head tool clamps
around the seal head and the cylinder tube
extension.

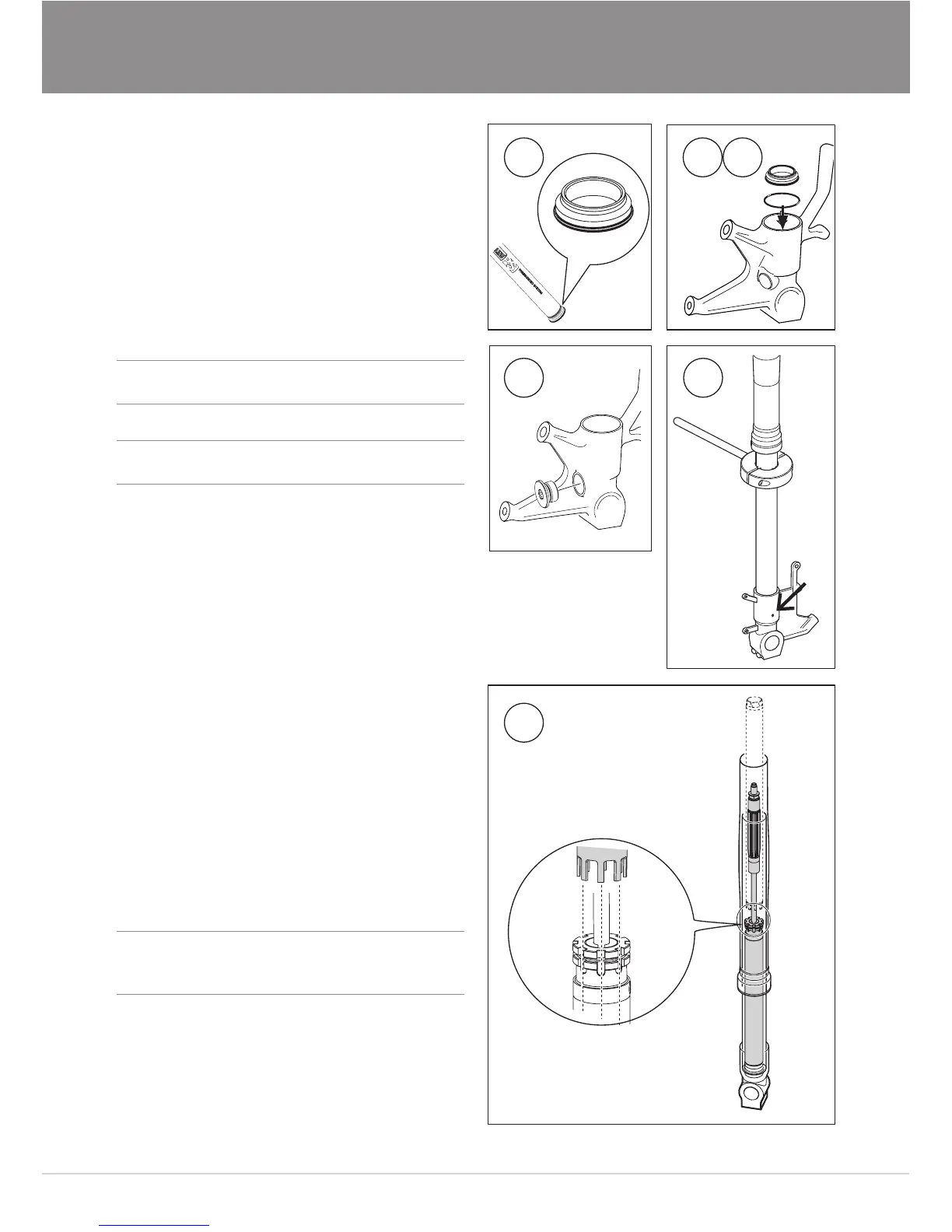

3.4
3.7
3.10
3.9
3.5 3.6
