SETUP DATA
Warning!⚠
Before you ride/drive, always make sure that the
setup is according to the recommended setup
data. Read about adjustments and setting up
in the Öhlins Owner’s Manual before you make
any adjustments. Contact an Öhlins dealer if
you have any questions about setting up.
Part no. MI_FGR156_2
Issued 2014-02-18
Compression 10 clicks
Rebound 8 clicks
Spring rate 9.5 N/mm
Spring preload 6 mm
Oil level 200 mm
Fork leg position Standard

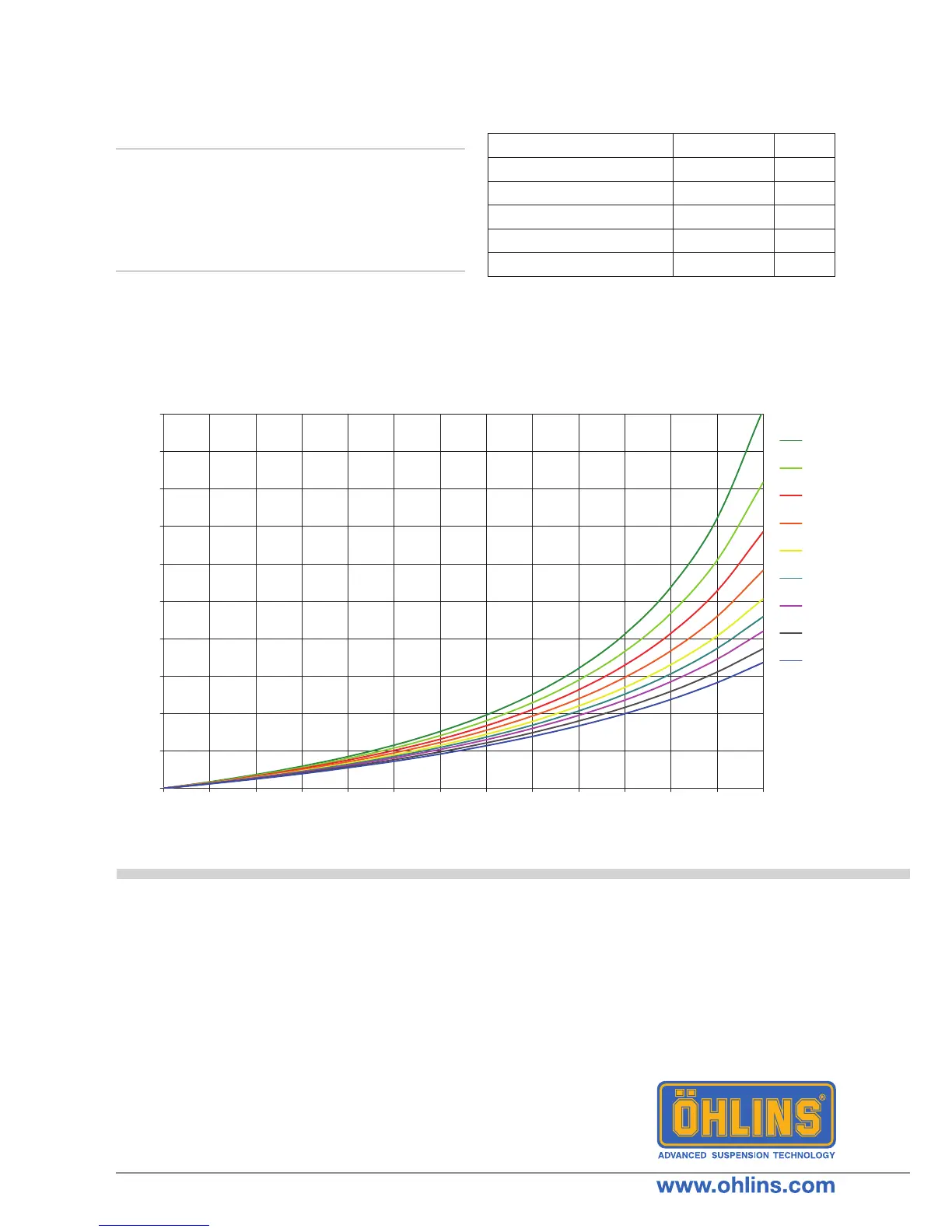

Oil level - Air spring force Diagram
Air spring for one front fork leg
Oil level [mm]
0
50
100
150
200
250
300
350
400
450
500
0102030405060708090 100 110 120 130
Stroke [mm]
Force [N]
120
130
140
150
160
170
180
190
200
