Ohlins RXF36 - Rebuild Air Spring Cartridge - Base Cap and Piston Assembly; Lubrication and Tightening of Base Cap; Installation of Third Chamber Piston and Bump Rubber

20
REBUILD AIR SPRING CARTRIDGE
53
54
56

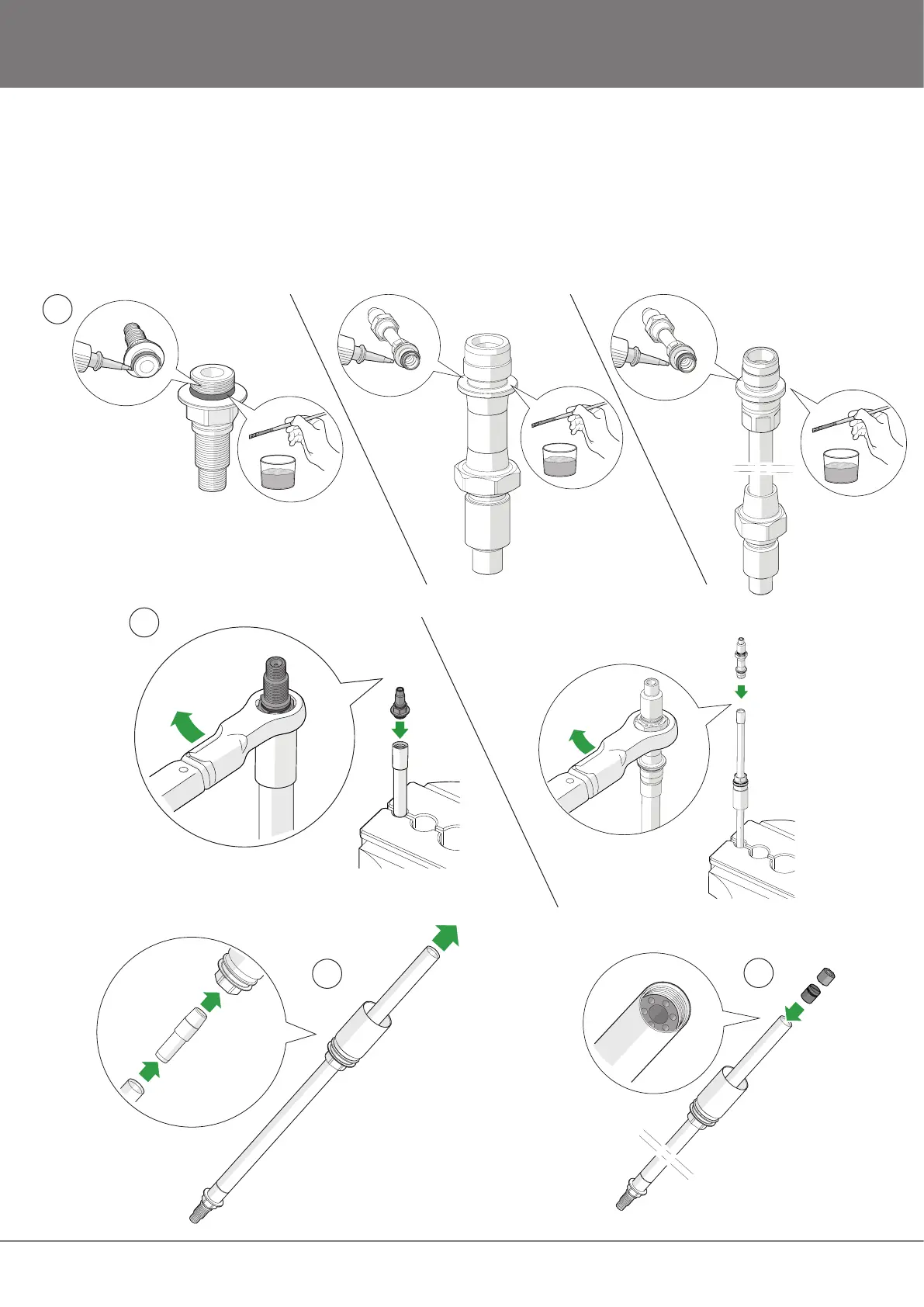

53. Apply a halv turn of Loctite 577 thread sealant to the base cap
threads (cylinder side). Lubricate the o-ring (18628-01) with assem
-
bly grease.
54. Thread the base cap into the cylinder tube. Use a torque wrench
with a 14/16 mm hex socket to tighten the base cap to 8 Nm.
55
55. Use the Mounting sleeve shaft 14/8 tool (18860-03) to prevent
damages to the x-ring and support ring in the seal head when sliding
through the cylinder tube.
56. Reinsert the third chamber piston and a new bump rubber
(18649-01) into the cylinder tube.
