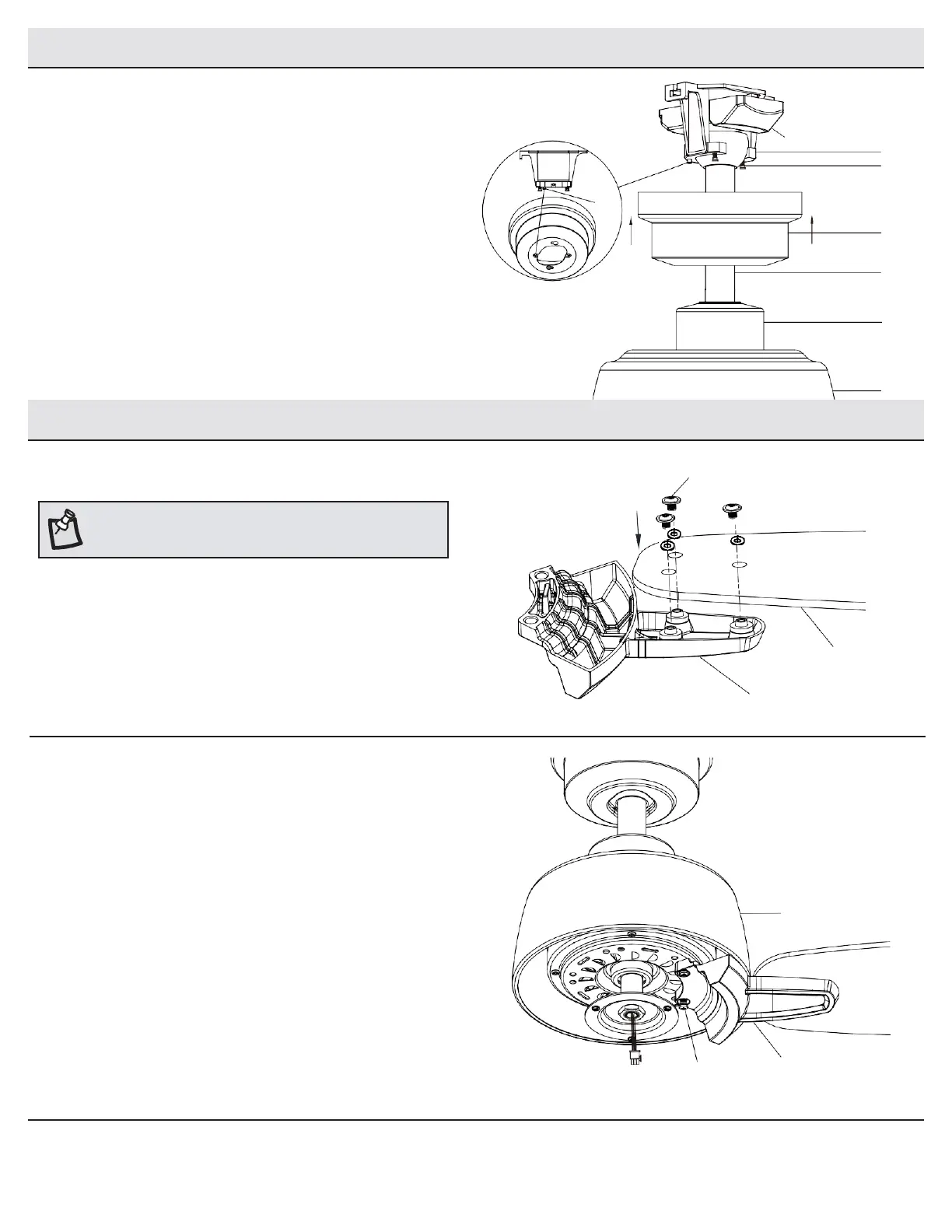

Mounting the fan-motor assembly
(standard mount)
□
Align the locking slots of the canopy (C) with the two
screws (HH) and alignment post (KK) in the mounting
bracket (A).
□
Push up the canopy (C) and turn clockwise until the
alignment post (KK) engage to the round hole and the
screws (HH) engage to the key slots.
□
Firmly tighten the two mounting screws (HH).
Attaching the blades to the blade
brackets
DD
□
Attach a blade (G) to blade bracket (F) by inserting the
screws (DD) into the holes in the blade (G) and through
the blade bracket (F).
□
Tighten each screw securely.
□
Repeat this step for each blade and blade bracket.
Fastening the blade assemblies to
the motor
□
Fasten the blade/blade bracket assembly to the fan motor
assembly (E) by inserting the alignment posts into the slot on
the bottom of the motor and tightening the pre-installed blade
bracket screws (EE).
□
Repeat this steps for the remaining blades.
