OHNIYOU GLX054 - Assembly - Standard Ceiling Mount; Preparing for Standard Mounting; Routing the Wires; Assembling the Fan

7
WARNING: Failure to properly install the locking
pin (BB) could result in the fan becoming loose and
possibly falling.
C
B
L
E
1

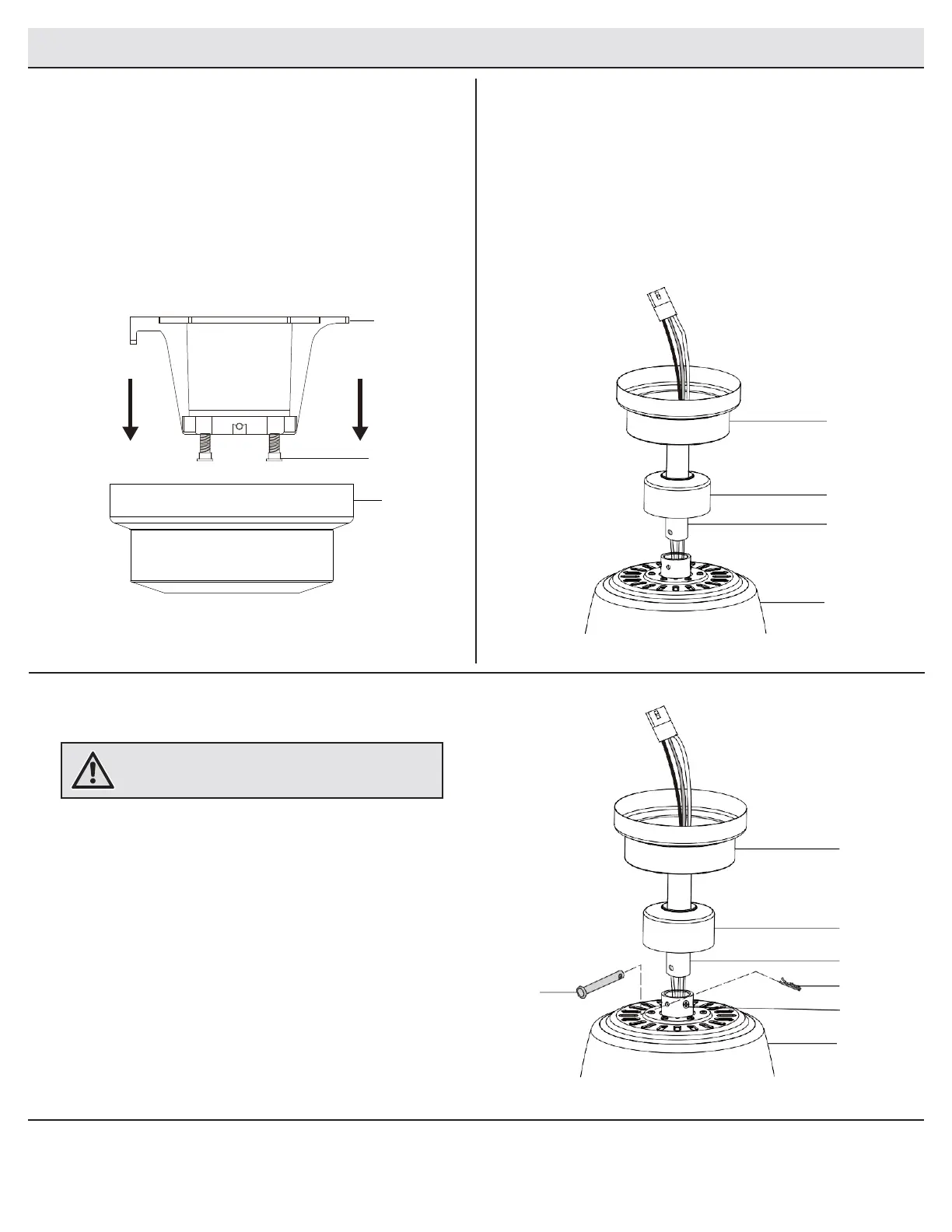

Preparing for standard mounting
2
Routing the wires
□ Remove the canopy bottom cover (JJ) from the canopy
(C) by turning the bottom cover counterclockwise until it
unlocks.
□ Loosen the two canopy screws (HH) located in the
bottom of the mounting bracket (A), and turn the canopy
counterclockwise to remove the mounting bracket (A)
from the canopy (C).
C
□ Route the wires exiting the top of the fan motor assembly (E)
through the decorative motor collar cover (D) and then the
center of the canopy bottom cover (JJ).
□ Make sure the opening of the canopy (C) is on top and insert
the ball/downrod (B) through the canopy (C).
□ Route the wires exiting the top of the fan motor assembly (E)
through the downrod as shown.
C
D
B
E
3
Assembling the fan
□ Loosen, but do not remove, the setscrews (LL) on the collar on
top of the fan-motor assembly (E).
□ Align the holes at the bottom of the ball/downrod assembly (B)
with the holes in the collar on top of the fan-motor assembly (E).
□ Carefully insert the hanger pin (AA) through the holes in the
collar and ball/downrod assembly (B). Be careful not to jam
D
the hanger pin (AA) against the wiring inside the ball/downrod
assembly (B).
□
Insert the locking pin (BB) through the hole near the end of the
AA
BB
hanger pin (AA) until it snaps into its locked position.
L
□ Re-tighten the setscrews (LL) on the collar on top of the fan-
motor assembly (E).
Assembly - Standard Ceiling Mount
A
HH
