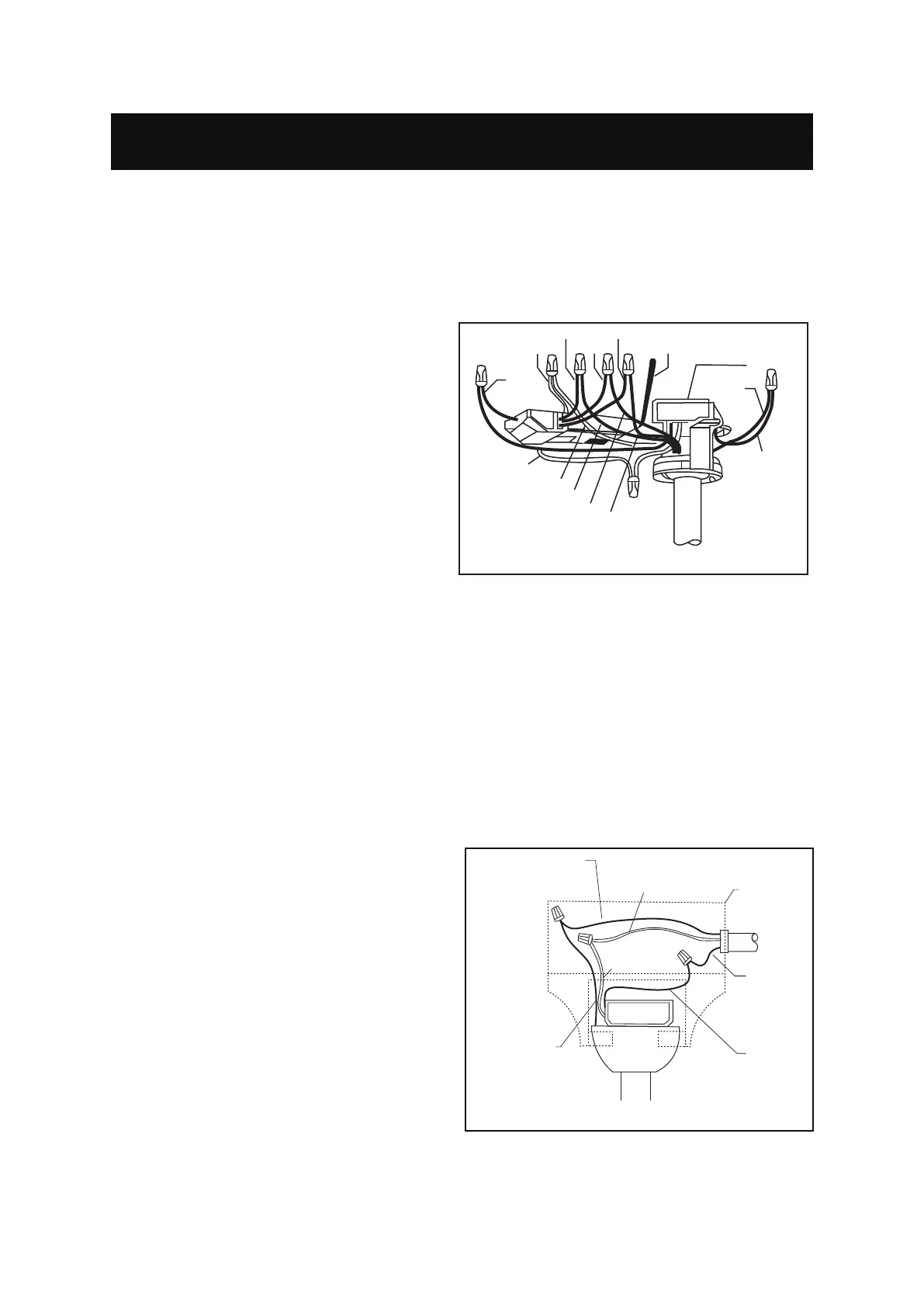

How to Wire Your Ceiling Fan
Figure 2
Receiver
Wlack Wire
From Receiver
Black Wire
From Receiver
Black Wire
From Supply
White Wire
From Supply
Green Wire
(Ground)
Green Wire
(Ground) From
Hanger Ball
Household
Supply
Listed Outlet Box
Figure 1
Black
Black
White
White to Motor
Blue to Light
Brown to Motor
Black to Motor
Listed Outlet Box
Green Wire
(Ground)
Green Wire
(Ground) From
Hanger Ball
White
Blue
Brown
BLK-ANT
1.Connect green wires from hanger ball to
bare (ground) wire using wire connector.-
Connect black wire from receiver unit
using wire connector. Connect white wire
white supply wire using wire con-nector.
Connect white wire from receiver unit
fan using wire connector supplied with
receiver unit. Connect black wire from
black wire from fan using wire connector
supplied with receiver unit. Connect brown
wire from receiver unit to brown wire from
fan using wire connector supplied with
receiver unit. Lastly, connect blue wire
from receiver unit to the blue fan light wire
using wire connector supplied with receiv-
er unit.(Figure 1)
the receiver into the hanger bracket, taking
care not to pinch the wires and put the
white and green leads to one side and the
black leads towards the other side, the
carefully push leads into the outlet box.
The wires should be spread apart with the
grounded conductor and the equip-
ment-grounding conductor on one side of
the outlet box and the ungrounded
conductor on the other side. (Figure 2)
CAUTION: INCORRECT WIRE CONNECTION WILL DAMAGE THIS RECEIVER.
NOTE: If you feel that you do not have enough electrical wiring knowledge or
experience, have your fan installed by a licensed electrician.
