STANDARD CHAIN TENSIONER (only mod.GP-0)
•
Place the motorcycle on the rear stand with the engine off and the gearbox
in neutral.
•
Loosen the rear wheel pivot
•
After loosening the locking nut, turn the adjusting screws until the
correct chain tension is obtained. Unscrew the screws to tighten the
chain, screw in the screws and push the rear wheel forward to loosen
the chain.
•
Check the alignment of the rear wheel pivot by verifying that the
position of the chain tensioners is the same on both sides with reference
to the stampings.
•
Hold the adjustment screw firmly and tighten the nut.
•
Tighten the rear wheel pivot nut (tightening torque 60 Nm).

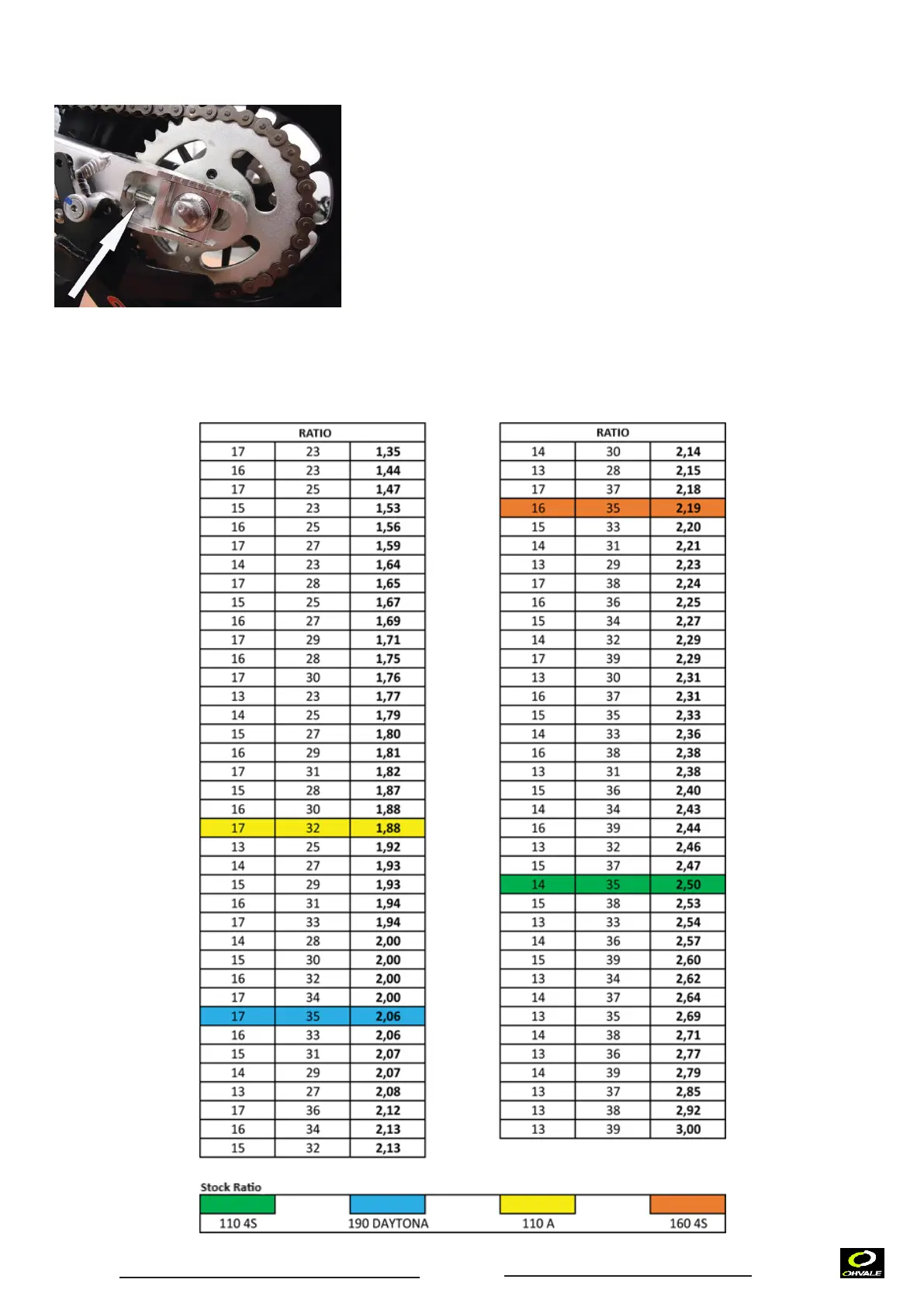

10.4. PINION / SPROCKET RATIO TABLE mod. GP0
