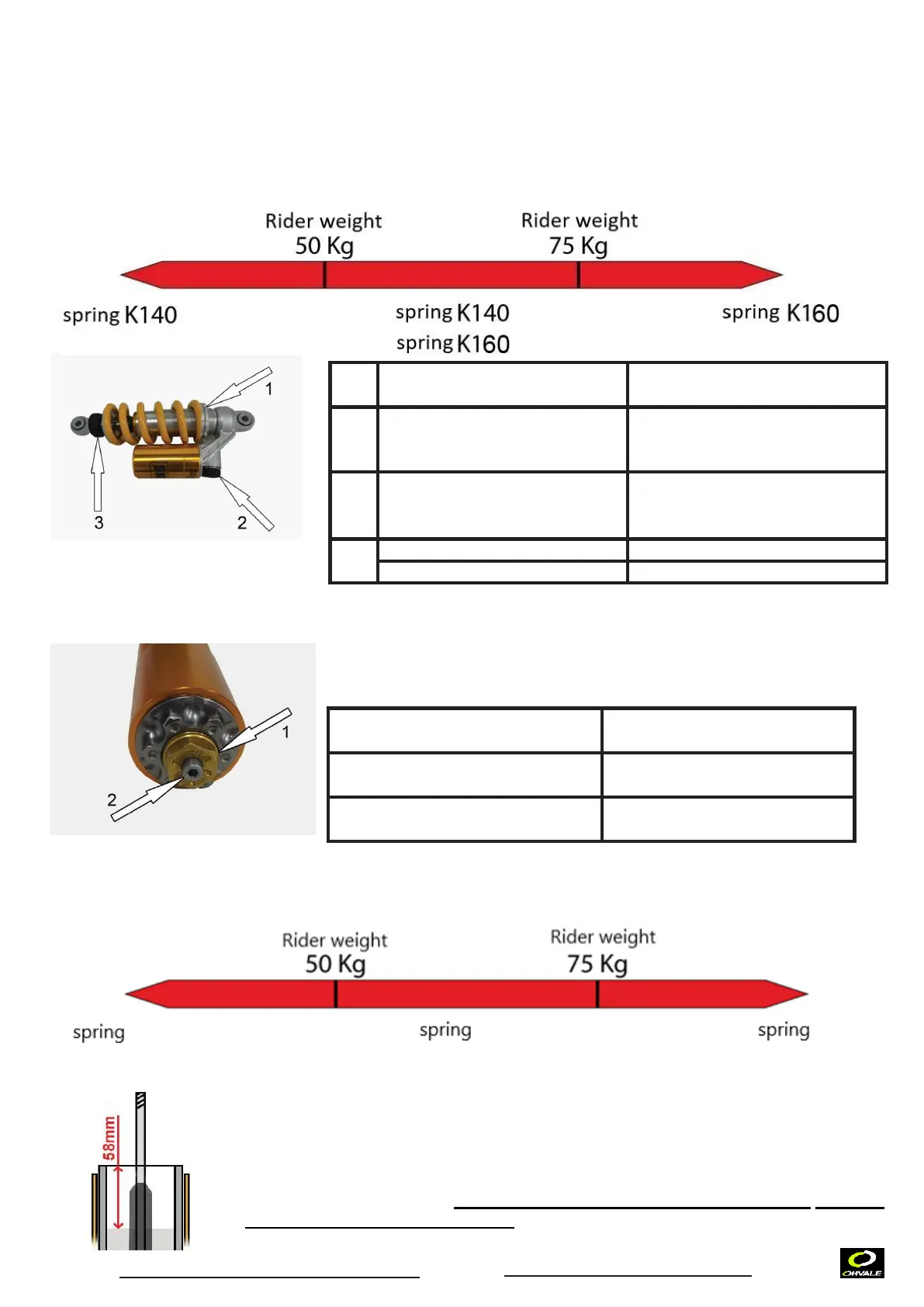

11.3. REAR SHOCK ABSORBER OHLINS (OPTIONAL)
The OHLINS rear shock absorber is adjustable in spring preload and hydraulic compression & rebound. (length
adjustment on the frame)
Two types of springs are available: with K160 for pilots weighing of more than 75kg and a softer one with K140
recommended for pilots weighing less than 50Kg.
11.4. ANDREANI FORK CARTRIDGES (OPTIONAL only for mod. GP-0)
The spring preload can be set by acting on the appropriate adjusters; screwing in to
increase the preload or unscrewing to decrease it.
1
Spring preload
5 turns (from fully open)
2
Hydraulic compression
(C engraved on the cap)
2.5 turns (from fully closed)
2
Hydraulic extension
(R engraved on the cap)
2 turns (from fully closed)
Two types of springs are available: a stiffer one with K7 recommended for riders weighing more than 75kg and a
softer one (K6) recommended for riders weighing less than 50Kg.
Before proceeding with the replacement of the fork springs, it is necessary to check the oil level inside
the stem.
Then you have to gently remove the spring, trying to lose as less oil as possible and perform the
measurement indicated in the image. (oil level must be 58mm from the fork stem).
If necessary, restore the oil level. Is recommended to use the specific fork oil: OHLINS
(OHLINS Suspension fluid No. 5).
Spring free length
K140: 145mm
K160: 145mm
GP
-0
1
Spring preload
K140: 8mm
K160: 7mm
GP
-2
1
Spring preload
K140: 10mm
K160: 10mm
2
idraulica in compressione
aperto 8 click da fully closed
3
idraulica in estensione
aperto 9 click da fully closed
K 6/6
K 7/7
K 6/7
