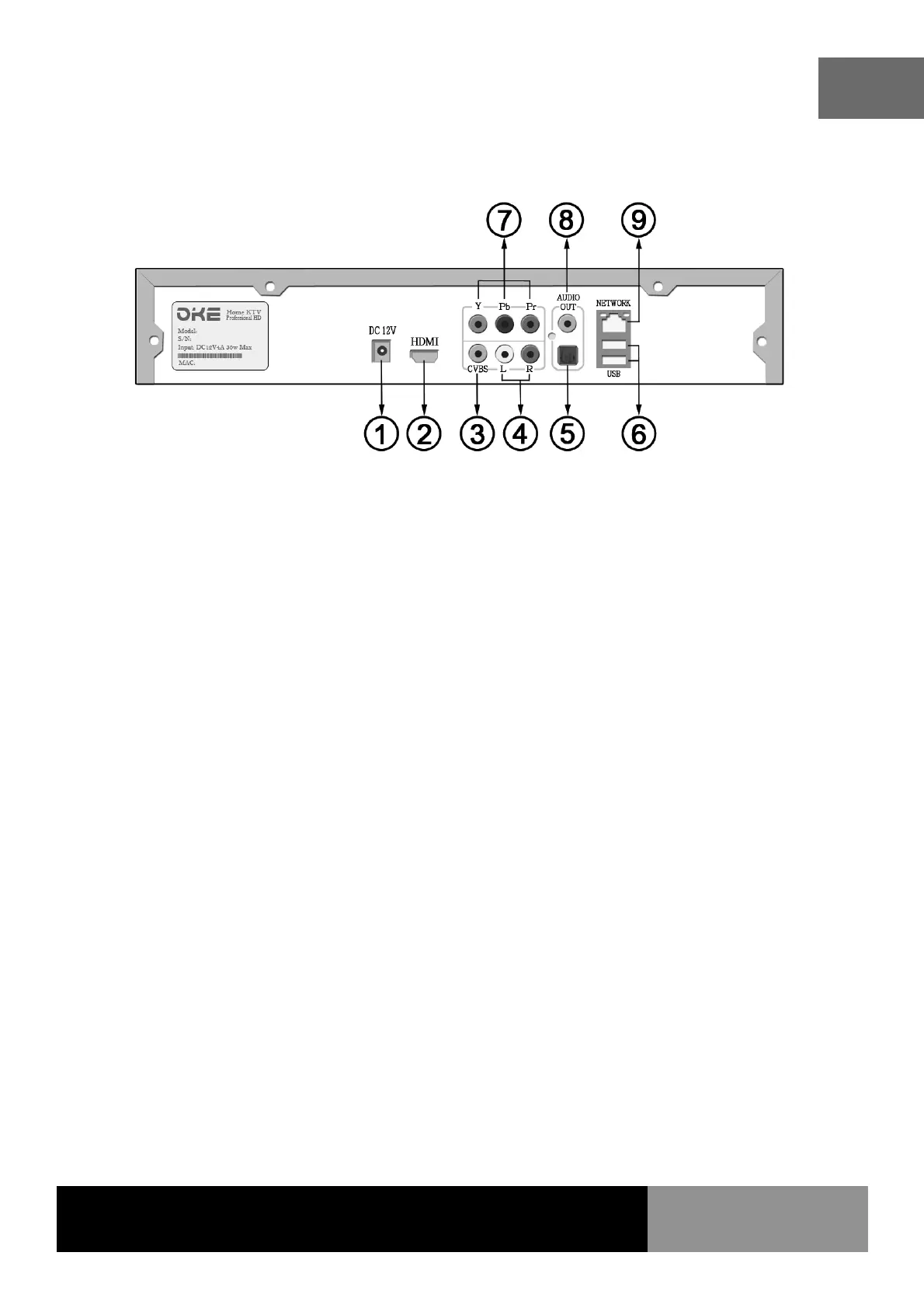

Rear Control Panel
1. 12 v. Power Supply Jack
Power light in Red indicating
the power is OFF. Power light
in Blue indicating the power is
ON.
2. HDMI Digital A/V Output
Provide 1080p video signal.
Connect to flat-panel TV with
HDMI cable.
3. Composite Video Output
4. RCA Left / Right Audio Output
5. Optical Digital Audio Output
6. USB Port x 2
7. Component Video (YPbPr)
Output.
8. Coaxial Digital Audio Output
9. RJ45 Network Port
10. Wi-Fi Antenna port
