7. Carefully remove the front cover of the reflow head and hold into place using a
using a tie-wrap or equivalent. Note the location of the side-to-side and to-fro
adjustment screws on the left side of the vacuum tube. Do not loosen yet.
8. Reverse-mount the Gun Sight Tool onto the board holder.

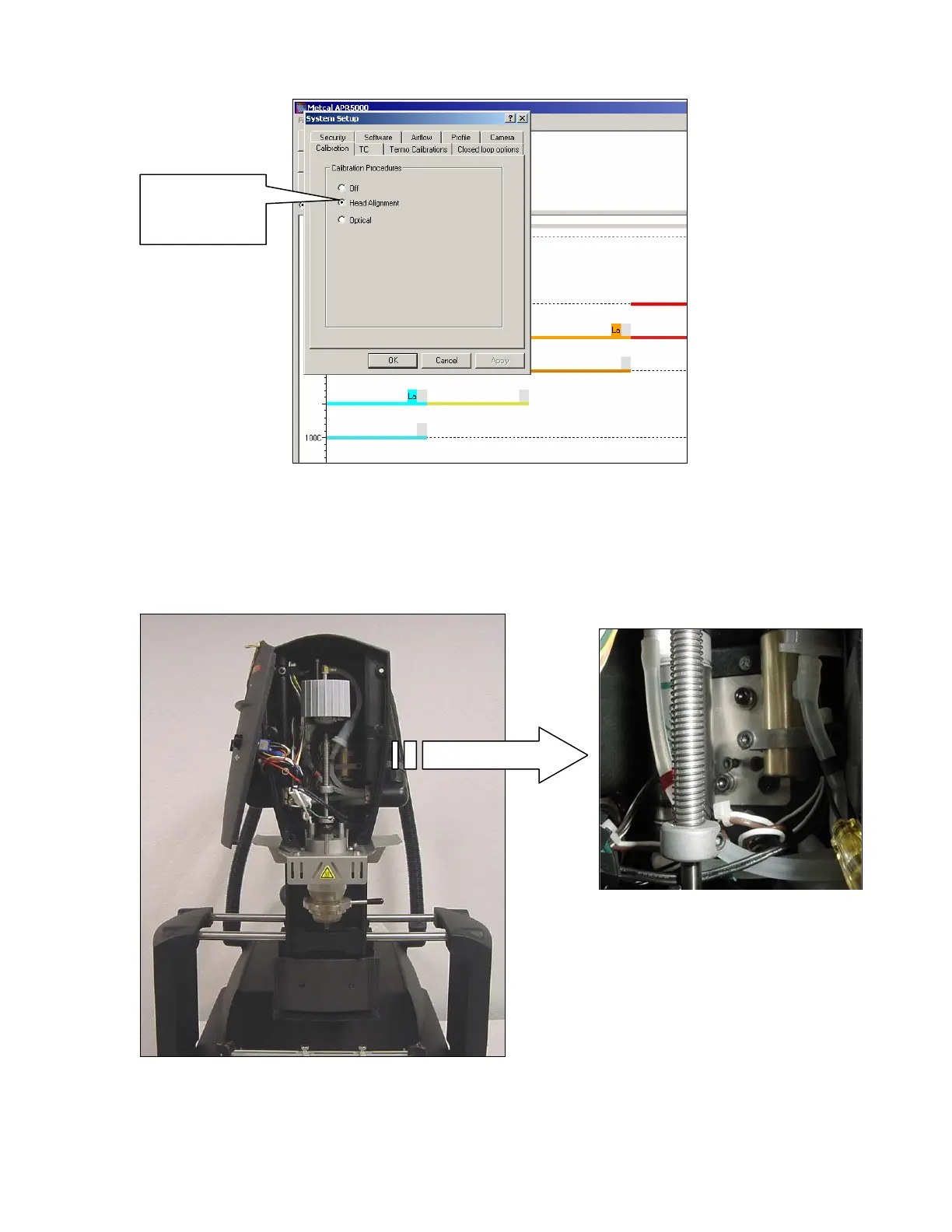

Click Head
Alignment
Zoom View
