www.okinternational.com - 24 - P/N 7000-1370, Revision B
9. Take vacuum pipette #12, remove rubber o-ring, and
attach the vacuum pipette to the APR.
10. Follow prompts past the vision calibration to when the vacuum engages.

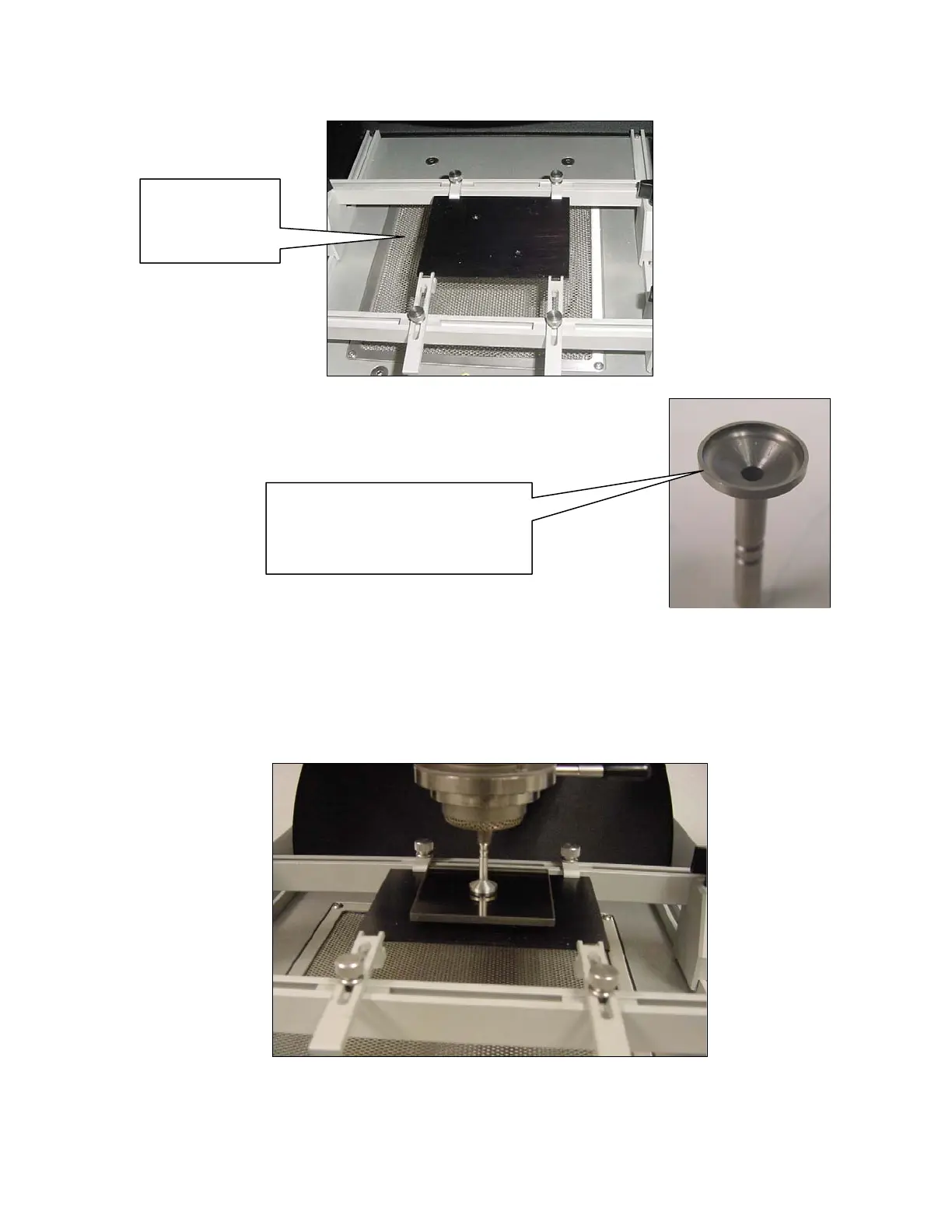

11. Next, mount the Calibration Mirror on vacuum pipette and, using the down action
keys, lower the Calibration mirror approximately .25” over the reverse-mounted
Gun Sight Tool.
12. Using your software options, reduce the lowering speed to .001”
Reverse-
mounted Gun
Sight Tool
Removing the o-ring allows
you to optimize the vacuum
pick-up point accuracy.
