www.okinternational.com - 32 - P/N 7000-1370, Revision B

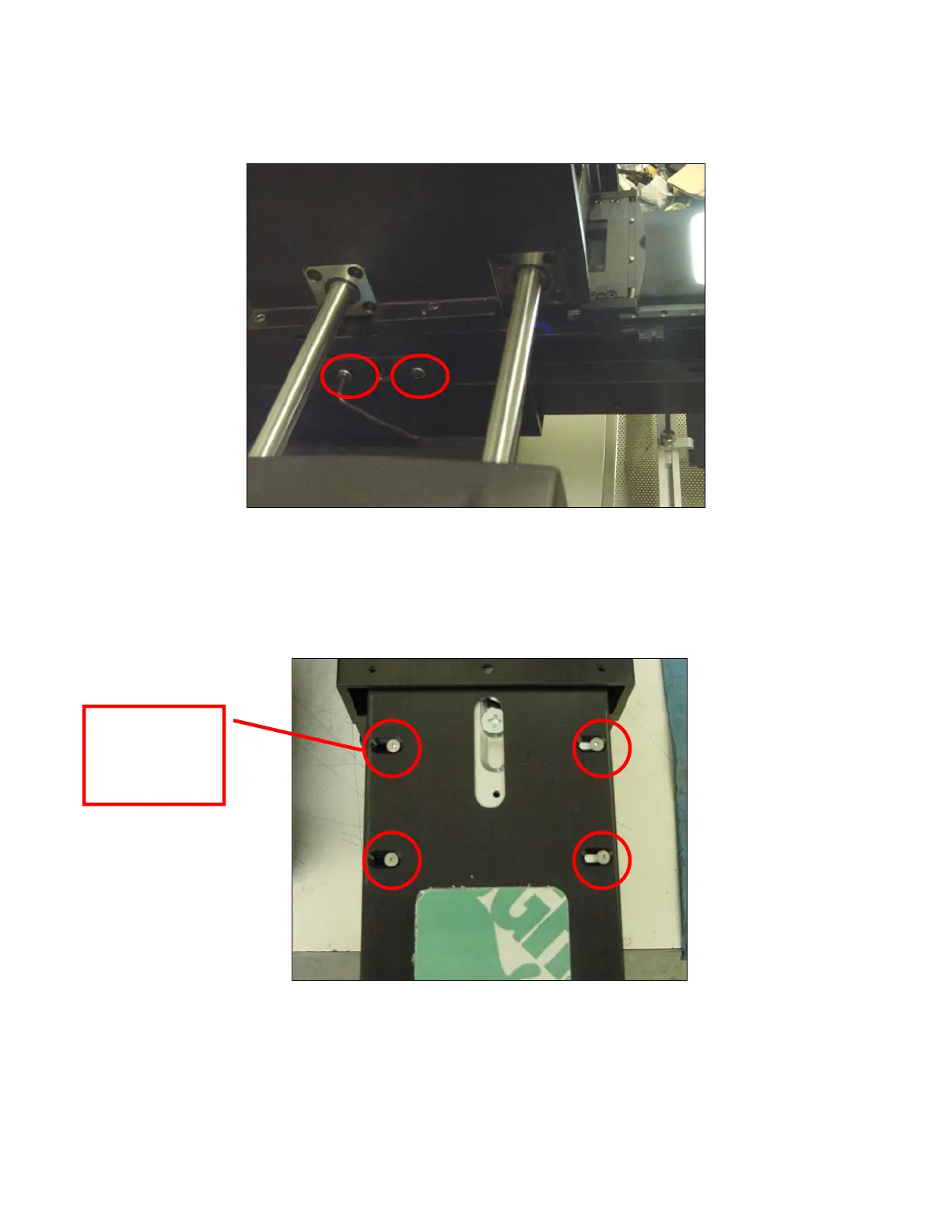

8. If the vacuum nozzle image is not centered in the Y-axis movement, adjustment
the image using the Y-Adjustment screws using the appropriate Allen key.
9. If the vacuum pipette image is not centered in the X movement, remove the
camera shield and loosen the four-camera lock-down screws located underneath
the front part of the camera.
10. When loosened, adjust the X-axis movement as needed to align the vacuum
nozzle image to the center of the software image window.
Screws
located
underneath
the camera.
